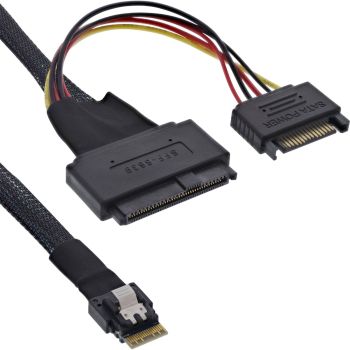

InLine® Slim SAS cable, SFF-8654 to U.2 SFF-8639 + SATA power, 0.5m
|
32,26 EUR |
|
|
( 38,39 EUR incl. VAT ) ≈ £27.00 | ≈ $36.10 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Lieske Part No.: | 22194168 |
|---|---|
| Mfg Part No: | 27644A |
| UPC/EAN: | 4043718288601 |
| Weight: | 0.049 kg |
Product information for Inline 27644A:
Sophisticated combination cable: Combines Slim SAS connection with U.2 data and SATA power supply for efficient cabling.
Compatible with SAS 4.0: Connection via SFF-8654 to SFF-8639 – suitable for modern controllers and U.2 SSDs.
Secure connection: Lockable Slim SAS connector prevents disconnection during operation – ideal for continuous load.
For professional environments: Optimally suited for RAID setups, workstations, and storage systems in data centers.
The InLine Slim SAS cable reliably connects modern U.2 SSDs to a SAS controller or RAID system. Equipped with a Slim SAS 4i connector (SFF-8654), a U.2-compatible connector (SFF-8639), and an additional SATA power connector, this cable combines data and power connection in one.
With support for up to 24Gb/s per channel, the cable is ideal for performance-hungry storage solutions in servers, workstations, or data centers. The Slim SAS connector has a locking mechanism, ensuring a secure connection even during continuous operation.
The compact cable routing allows for a clean and space-saving installation. It is the ideal choice for users who value performance, efficiency, and a clean structure in their IT infrastructure—from professional home servers to enterprise storage solutions.
Connector type: Slim SAS SFF-8654 4i to U.2 SFF-8639 + SATA power
Compatibility: SAS 4.0
Transfer rate: up to 24Gb/s per channel
Feature: Combination connector for data and power
Type: Internal SAS-U.2 connection cable
Length: 0.5 m (27644A), 1 m (27644B)
| Features | |
| Cable length | 0.5 m |
| Connector 1 | SFF-8654 male |
| Connector 2 | SFF-8639 + SATA |
| Data transfer rate (max) | 24 Gbit/s |
| Product colour | Black |
| Weight | 44 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 190 mm |
| Package height | 20 mm |
| Package weight | 49 g |
| Technical data | |
| Type | Slim SAS |
| Length packaging | 0.190m |
| Article length | 50.00cm |
| Article width | 5.00cm |
| Weight | 0.049kg |
| Packaging volume | 0.0007m³ |
| Article height | 2.00cm |
| Height packaging | 0.020m |
| Net weight | 0.044kg |
| Colour | Black |
| Signal | Data |
| Design | Slim |
| Side A | SFF-8654 4i |
| Side B | SFF-8639 + power plug |
| Width packaging | 0.160m |
| UL | |
| Weight & dimensions | |
| Dimensions (WxDxH) | 50 x 500 x 20 mm |
