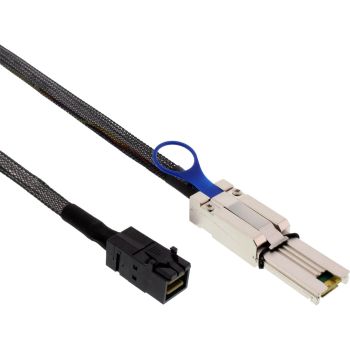

InLine® Mini SAS HD Cable SFF-8643 to SFF-8088 1m content_copy

Fast internal-to-external SAS connectivity with 12 Gb/sBridges internal to external: Connects Mini SAS HD 4i (SFF-8643) internally to SAS (SFF-8088) externally for controller-to-backplane or hard drive connections.
High data rate: Supports up to 12 Gb/s for high-performance storage solutions.
Clean cable routing: Straight SFF-8643 plug simplifies installation in the enclosure.
Flexible placement distance: 1 m length allows well-planned placement between controller and enclosure.
The cable connects internal Mini SAS HD 4i ports (SFF-8643) to external SAS devices via SFF-8088. This lets you connect a SAS controller directly to a backplane or to SAS hard drives without additional adapters. Support for up to 12 Gb/s and the 1 m length provide fast data connectivity and a practical reach within the system.
In professional IT environments, the cable facilitates on-site installations and service deployments, for example when expanding existing infrastructures in companies and public institutions. The clear connector orientation reduces effort during installation in racks and enclosures.
Connector: 1x Mini SAS HD SFF-8643 plug (internal), 1x SAS SFF-8088 plug (external)
Length: 1 m
Data rate: up to 12 Gb/s
Design: straight SFF-8643 plug
Standard: Mini SAS HD 4i, SAS
Color: Black

Features
Cable length	1 m
Connector 1	SFF-8088
Connector 2	SFF-8088
Connector gender	Male/Male
Product colour	Black
Weight	111 g
Logistics data
Package volume	700 cm³
Packaging data
Package width	190 mm
Package depth	290 mm
Package height	30 mm
Package weight	120 g
Technical data
Side A	SFF-8088
Signal	Data
Weight	0.120kg
Height packaging	0.030m
Net weight	0.111kg
Article height	1.70cm
Packaging volume	0.0007m³
Article length	100.00cm
Length packaging	0.290m
Article width	2.00cm
Width packaging	0.190m
Colour	Black
UL
Weight & dimensions
Dimensions (WxDxH)	20 x 1000 x 17 mm

---
