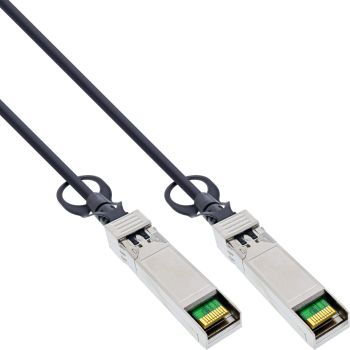

InLine® SFP+ to SFP+ DAC cable passive, 10Gb, 5m content_copy

Fast data transfer: The passive SFP+ DAC cable enables stable high-speed connections up to 10.5 Gb/s for high-performance point-to-point links.
Reliable signal quality: The double shielding of the 30AWG cable reduces interference and ensures low-interference transmission even in dense environments.
Energy-efficient connection: The passive design means there is no additional heat generation. The cable operates quietly and efficiently without active components.
Easy to use: The hot-plug-compatible SFP 20-PIN footprint enables quick installation. The cable can be used directly without additional transceivers.
Flexible use: Backward compatible to 1 Gb/s and manufactured according to SFF-8431, SFF-8432, and MSA. Ideal for fast and reliable direct attach connections.
The InLine SFP+ to SFP+ DAC cable connector offers a reliable high-speed solution for applications requiring stable transfer rates of up to 10.5 Gb/s. Thanks to its passive design, the cable is energy-efficient and does not generate additional heat. It enables direct point-to-point connections without the need for separate transceivers, facilitating fast implementation and a compact design.
The double-shielded 30AWG cable ensures stable signal integrity and reduces interference from neighboring components. Thanks to its compliance with SFF-8431, SFF-8432, and MSA, the cable can be easily integrated into existing systems. The hot-plug-capable SFP 20-PIN footprint supports convenient handling, allowing connections to be quickly established or adjusted.
With a bit error rate of better than 10E-12, the InLine DAC cable offers reliable transmission quality. Backward compatibility up to 1 Gb/s enables flexible use in different network scenarios. The cable is ideal for short distances where a stable copper connection with high speed is required. Its generic coding makes it versatile and supports smooth integration into performance-oriented network applications.
Cable type: Twinax
DDM support: no
Coding: generic

Features
Cable length	5 m
Connector 1	SFP+
Connector 2	SFP+
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Data transfer rate	10 Gbit/s
InfiniBand protocol
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	15 x 5000 x 12 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	270 mm
Package depth	270 mm
Package height	30 mm
Package volume	2200 cm³
Package weight	294 g
Technical data
Type	SFP+ Kabel
Net weight	0.275kg
Diameter	AWG 24
Bending radius (static)	>23mm
Width packaging	0.270m
Storage temperature	0 to +70°C
Article width	1.50cm
Data transmission rate	10Gb/s
Shielding	Double shielding
Length	5m
Outer diameter	8.5mm
Article length	500.00cm
Side B	SFF-8431
Signal	Data
Operation temperature	0 to +70°C
Packaging volume	0.0022m³
Article height	1.20cm
Side A	SFF-8431
Height packaging	0.030m
Weight	0.294kg
Length packaging	0.270m
Colour	Black
Weight & dimensions
Weight	275 g

---
