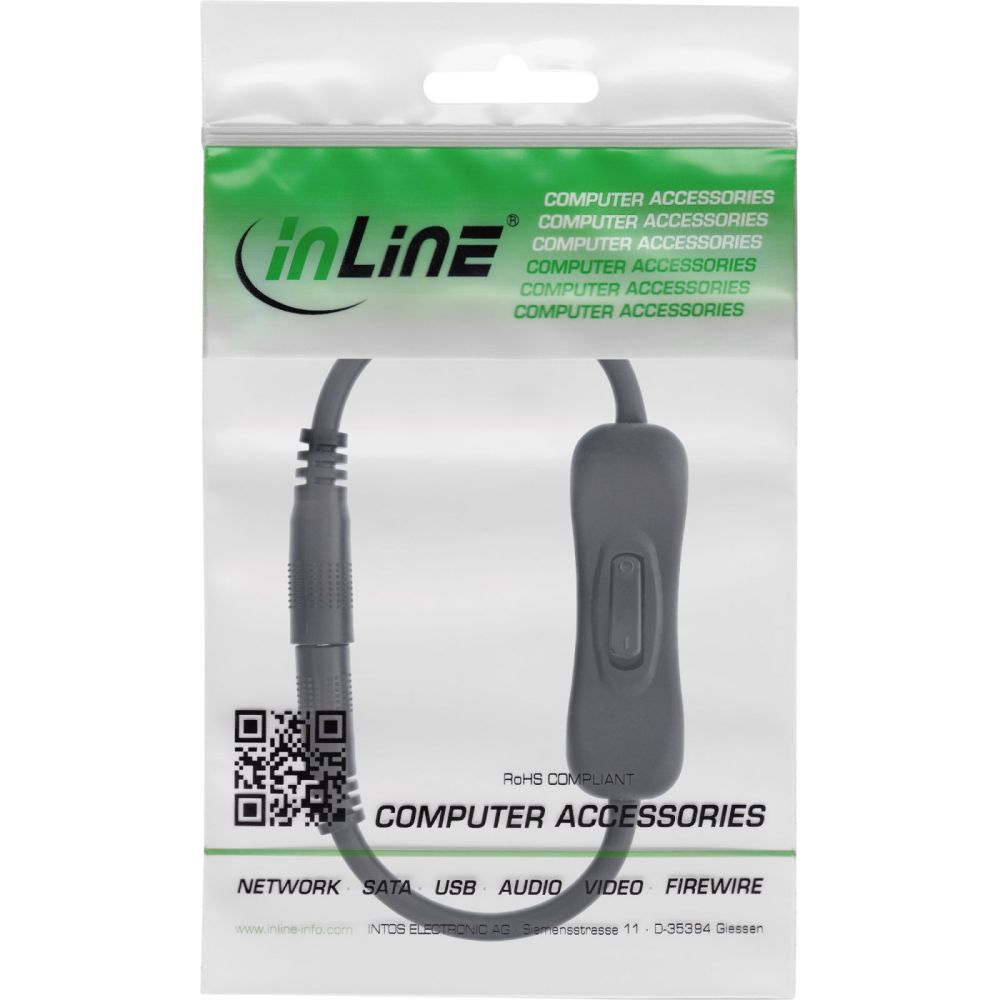

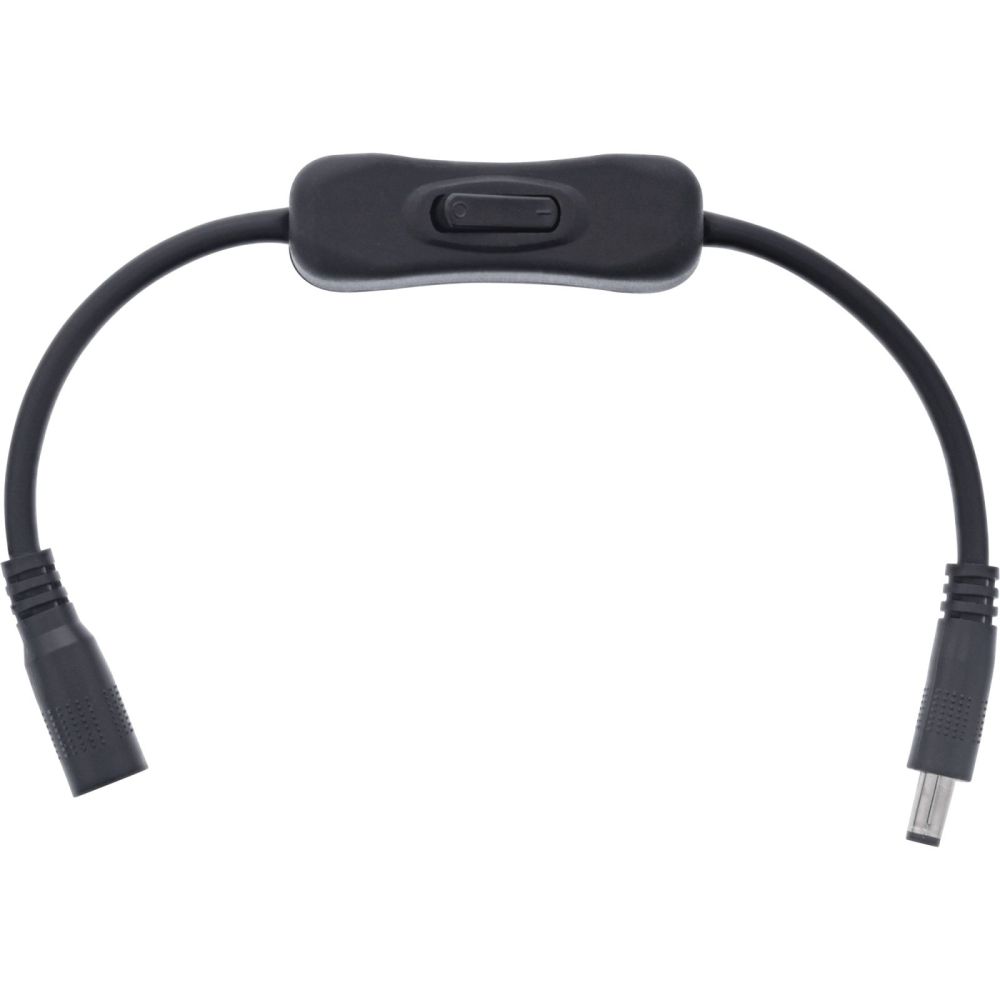

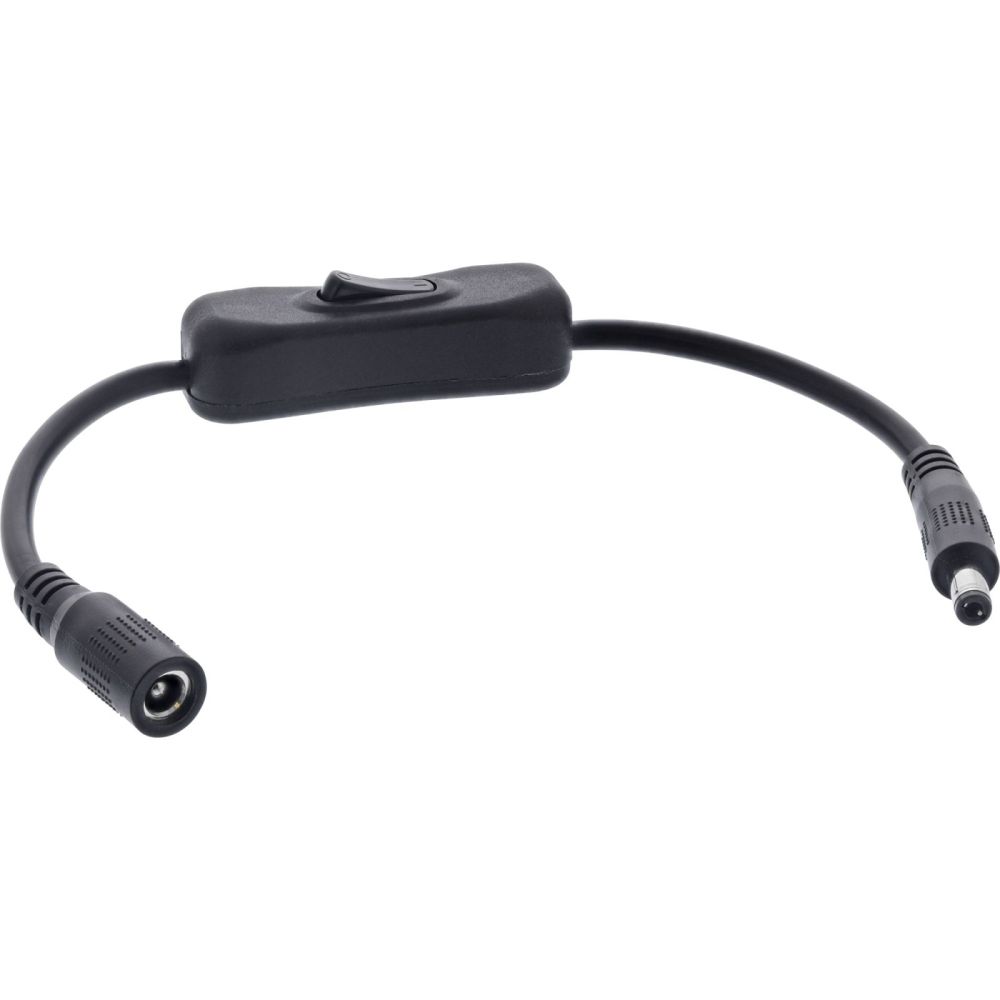

InLine® DC cable with switch, 5.5 x 2.5 mm, AWG 18, black, 0.20 m content_copy

Switch on and off directly on the cableSwitch directly on the cable: The integrated switch allows you to conveniently switch a compatible DC power supply on and off without having to unplug it every time.
Plug remains connected: Disconnect the power supply using the integrated switch. This allows the appropriate DC connection to remain connected between switching operations.
A compact addition to your setup: The DC cable extends an existing power connection by providing an easily accessible switching function between the power supply and a compatible device.
AWG 18 copper conductor: The copper inner conductor provides a robust cable design for compatible DC connections and adds a practical switching option to existing installations.
Check for a suitable connection: The plug and socket have the same connection dimensions. Also check the polarity and electrical requirements of the components used.
With the InLine DC cable, you can add a directly accessible switching function to an existing power connection. The integrated switch allows you to switch the connected power supply on and off. The DC plug does not need to be removed from the socket every time the switch is operated.
The DC plug and DC socket have the same connection size. This means the existing connection type is retained. The AWG 18 copper inner conductor provides a robust cable design.
Select the connection size to match your existing connection. Before use, also check the polarity and the electrical requirements of the connected components.
Terminal A: DC plug, straight
Terminal B: DC socket, straight
Connection size: 5.5 x 2.5 mm
Conductor cross-section: AWG 18
Inner conductor: Copper
Switch: integrated

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	0.2 m
Connector 1	5.5 x 2.5 mm
Connector 2	5.5 x 2.5 mm
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	18
Other features
Dimensions (WxDxH)	18 x 200 x 18 mm
Packaging data
Quantity per pack	1 pc(s)
Package type	Polybag
Package width	100 mm
Package depth	160 mm
Package height	15 mm
Package weight	30 g
Power
Power supported (max)	140 W
Input voltage	12 V
Input current	11.6 A
Technical data
Length	0.20m
Signal	Power
Article height	1.80cm
Colour	Black
Height packaging	0.015m
Variant	With switch
Article length	20.00cm
Length packaging	0.160m
Net weight	0.027kg
Weight	0.030kg
Article width	1.80cm
Side B	DC female
Packaging volume	0.0003m³
Diameter	AWG 18
Packing	Retail
Version	With switch
Width packaging	0.100m
Plug dimensions	5.5x2.5mm
Side A	DC male
Design	Straight
Shielding	Unshielded
UL
Weight & dimensions
Width	18 mm
Depth	200 mm
Height	18 mm
Weight	27 g

---
