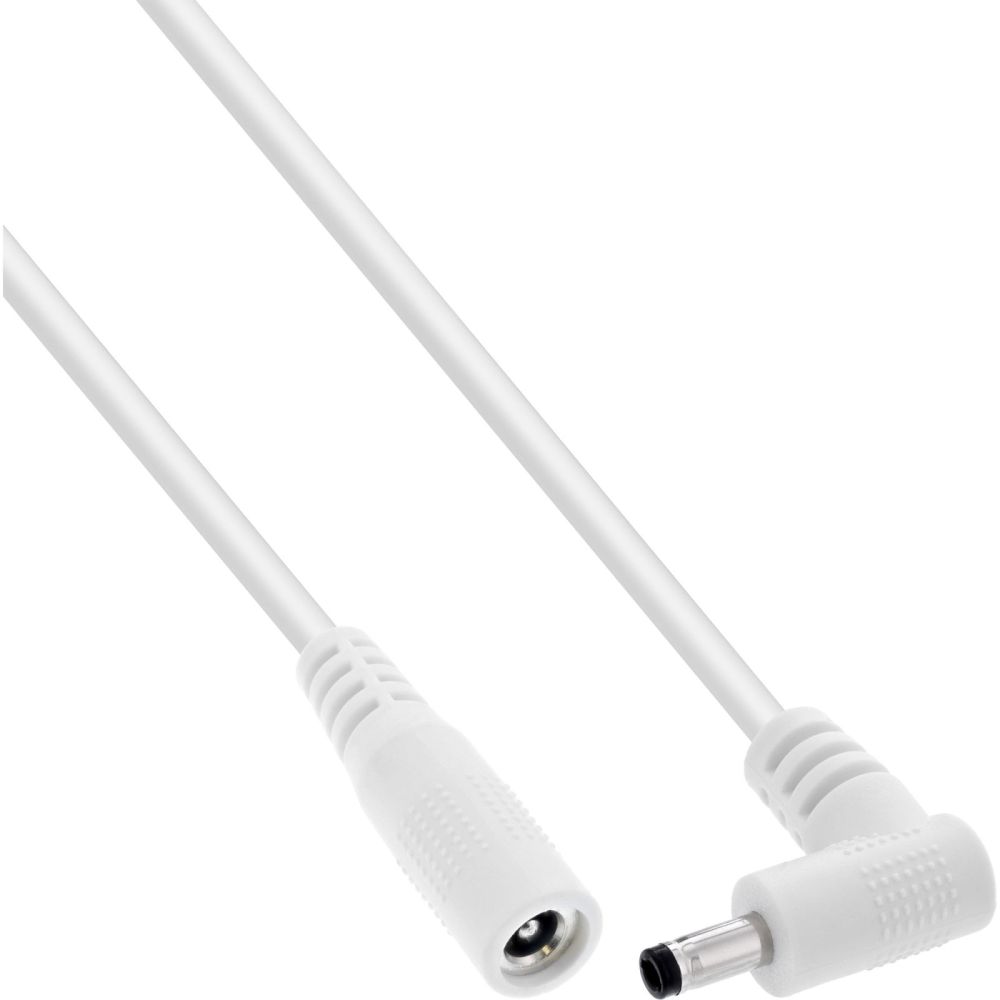

InLine® DC extension cable, right-angle plug, 4.0 x 1.7 mm, white, 2 m
|
4,58 EUR |
|||||||||||
|
( 5,45 EUR incl. VAT ) ≈ £3.83 | ≈ $5.13 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193719 | ||||||||||
| Mfg Part No: | 26902O | ||||||||||
| UPC/EAN: | 4043718349869 | ||||||||||
| Weight: | 0.094 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 26902O:
Space-saving connection: The angled DC plug routes the cable away from the device connection at an angle. This makes it easier to use where there is limited space behind furniture, enclosures or covers.
Compatible connection without changing adaptors: The DC plug and DC socket measure 4.0 x 1.7 mm. The existing connection type remains unchanged and can be extended directly and easily.
Robust cable design: The 2-core cable (AWG 18) has a PVC sheath and is suitable for the reliable extension of existing DC power connections in the 12–24 V range.
Ensure compatibility: Before purchasing, compare the connection dimensions, operating voltage, current rating and polarity with the specifications of the power supply unit and the connected device.
With this extension, you can adapt an existing DC power supply to changed spatial requirements. You can bridge the gap between the power supply unit and the connected component without having to completely reconfigure the existing connection.
The cable facilitates a tidy installation when the original cable route is too short. It is also suitable for subsequent changes to the device’s position as well as for temporary set-ups. The existing components can continue to be used.
The combination of an angled connector and a straight coupler allows the connection to be adapted to different installation scenarios. The cable does not alter either the connector size or the electrical characteristics of the existing power supply.
Connector A: DC plug, angled
Connector B: DC socket, straight
Connector dimensions: 4.0 x 1.7 mm
Conductor cross-section: AWG 18
Cable construction: 2-core
Cable sheath: PVC
Outer cable diameter: 5.0 ± 0.2 mm
Contact housing: Nickel-plated
Operating voltage: 12–24 V (DC)
Maximum power: 140 W
| Certificates | |
| Compliance certificates | UL |
| Features | |
| Product colour | White |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 2 m |
| Connector 1 | DC |
| Connector 2 | 4.0 x 1.7 mm |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Straight |
| Jacket material | Polyvinyl chloride (PVC) |
| Number of conductors | 2 |
| Conductor cross section | AWG 18 |
| Power | |
| Input voltage | 12–24 |
| Technical data | |
| Packing | Retail |
| Net weight | 0.082kg |
| Design | Angled |
| Variant | Without switch |
| Article length | 200.00cm |
| Signal | Power |
| Side A | DC male angled |
| Weight | 0.094kg |
| Plug dimensions | 4.0x1.7mm |
| Colour | White |
| Packaging volume | 0.0005m³ |
| Article width | 2.70cm |
| Width packaging | 0.150m |
| Diameter | AWG 18 |
| Length packaging | 0.220m |
| Article height | 1.00cm |
| Shielding | Unshielded |
| Height packaging | 0.015m |
| Side B | DC female |
| UL | |
