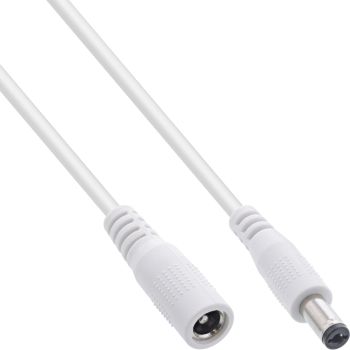

InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m
|
4,58 EUR |
|||||||||||
|
( 5,45 EUR incl. VAT ) ≈ £3.83 | ≈ $5.13 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193816 | ||||||||||
| Mfg Part No: | 26902E | ||||||||||
| UPC/EAN: | 4043718308781 | ||||||||||
| Weight: | 0.097 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 26902E:
Matching DC connection: The plug and socket have the same connector dimensions. This allows you to extend an existing connection without changing the current connection size between the power supply and the device.
Rated for up to 140 W: The AWG 18 copper inner conductor supports compatible power connections at 12–24 V (DC) and is therefore suitable for various DC applications.
Easy to integrate into existing installations: Connect the DC plug to the existing socket and connect the compatible device to the socket on the extension cable.
Check compatibility easily: Before connecting, check the plug size, polarity, operating voltage and power requirements. The values must be compatible with the power supply, cable and connected device.
The InLine DC extension cable allows you to extend an existing power connection between a power supply and a compatible device. This enables you to bridge the distance to the power source if the existing connection cable does not provide the required reach.
The DC plug and DC socket have the same connection dimensions. This means the existing connection type is retained. The cable can be easily used between an existing power supply and the connected device.
The AWG 18 copper inner conductor supports an operating voltage of 12–24 V (DC) and a maximum power of 140 W. Before use, check the required connector size as well as the polarity, operating voltage and power requirements of the connected components.
Connector A: DC plug, straight
Connector B: DC socket, straight
Connector dimensions: 5.5 x 2.1 mm
Conductor cross-section: AWG 18
Inner conductor: Copper
Operating voltage: 12–24 V (DC)
Maximum power: 140 W
| Features | |
| Product colour | White |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 2 m |
| Connector 1 | 5.5 x 2.1 mm |
| Connector 2 | 5.5 x 2.1 mm |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 18 |
| Other features | |
| Dimensions (WxDxH) | 10 x 2000 x 10 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 97 g |
| Power | |
| Input voltage | 12 V |
| Input current | 11.6 A |
| Technical data | |
| Colour | White |
| Variant | Standard cable |
| Packing | Retail |
| Shielding | Unshielded |
| Design | Straight |
| Article width | 1.00cm |
| Diameter | AWG 18 |
| Height packaging | 0.010m |
| Length packaging | 0.220m |
| Article length | 200.00cm |
| Side B | DC female |
| Width packaging | 0.160m |
| Net weight | 0.090kg |
| Weight | 0.097kg |
| Plug dimensions | 5.5x2.1mm |
| Signal | Power |
| Packaging volume | 0.0004m³ |
| Article height | 1.00cm |
| Side A | DC male |
| UL | |
| Weight & dimensions | |
| Width | 10 mm |
| Depth | 2000 mm |
| Height | 10 mm |
| Weight | 90 g |
Questions & answers
What is the delivery time of InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m?
The article InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 26902E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m always at the best possible price. We can give you a discount of 2% on InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® DC extension cable, 5.5 x 2.1 mm, AWG 18, white, 2 m we can offer you a price of 4,55 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
