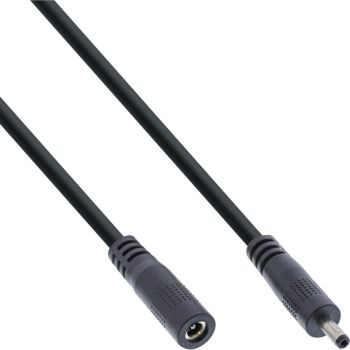

InLine® DC extension cable, 3.5 x 1.35 mm, AWG 18, black, 1 m content_copy

Greater reach for power supply and deviceGreater reach for your devices: The DC extension cable extends an existing power connection between the power supply and a compatible device, allowing for more flexible placement.
Matching DC connection: The plug and socket have the same connector dimensions. This allows you to extend an existing connection without changing the current connection size between the power supply and the device.
Rated for up to 140 W: The AWG 18 copper inner conductor supports compatible power connections at 12–24 V (DC) and is therefore suitable for various DC applications.
Easy to integrate into existing installations: Connect the DC plug to the existing socket and connect the compatible device to the socket on the extension cable.
Check compatibility easily: Before connecting, check the plug size, polarity, operating voltage and power requirements. The values must be compatible with the power supply, cable and connected device.
The InLine DC extension cable allows you to extend an existing power connection between a power supply and a compatible device. This enables you to bridge the distance to the power source if the existing connection cable does not provide the required reach.
The DC plug and DC socket have the same connection dimensions. This means the existing connection type is retained. The cable can be easily used between an existing power supply and the connected device.
The AWG 18 copper inner conductor supports an operating voltage of 12–24 V (DC) and a maximum power of 140 W. Before use, check the required connector size as well as the polarity, operating voltage and power requirements of the connected components.
Connector A: DC plug, straight
Connector B: DC socket, straight
Connector dimensions: 3.5 x 1.35 mm
Conductor cross-section: AWG 18
Inner conductor: Copper
Operating voltage: 12–24 V (DC)
Maximum power: 140 W

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	1 m
Connector 1	3.5 x 1.35 mm
Connector 2	3.5 x 1.35 mm
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	18
Other features
Dimensions (WxDxH)	10 x 1000 x 10 mm
Packaging data
Package width	160 mm
Package depth	220 mm
Package height	10 mm
Package weight	60 g
Power
Input voltage	12 V
Input current	11.6 A
Technical data
Width packaging	0.160m
Colour	Black
Design	Straight
Plug dimensions	3.5x1.35mm
Diameter	AWG 18
Length packaging	0.220m
Article height	1.00cm
Side A	DC male
Variant	Without switch
Article length	100.00cm
Side B	DC female
Net weight	0.053kg
Packing	Retail
Signal	Power
Height packaging	0.010m
Shielding	Unshielded
Packaging volume	0.0004m³
Article width	1.00cm
Weight	0.060kg
UL
Weight & dimensions
Width	10 mm
Depth	1000 mm
Height	10 mm
Weight	53 g

---
