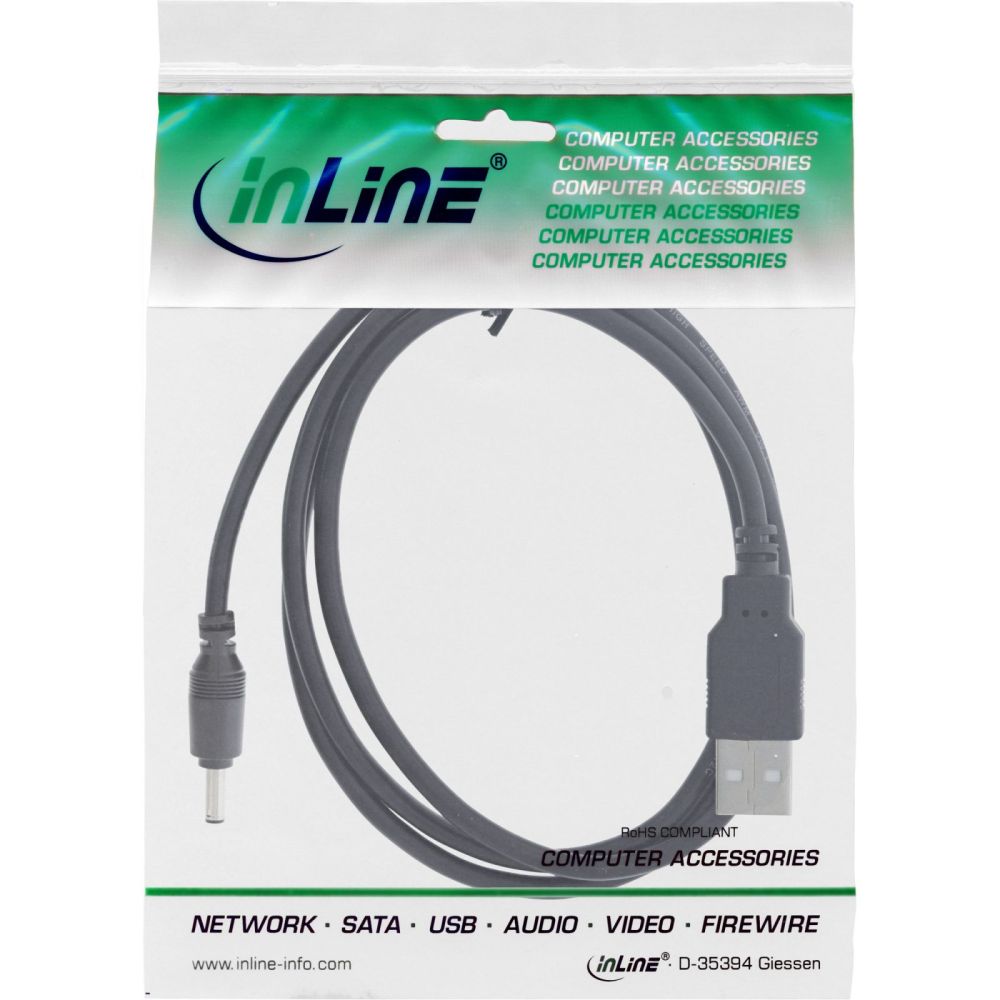

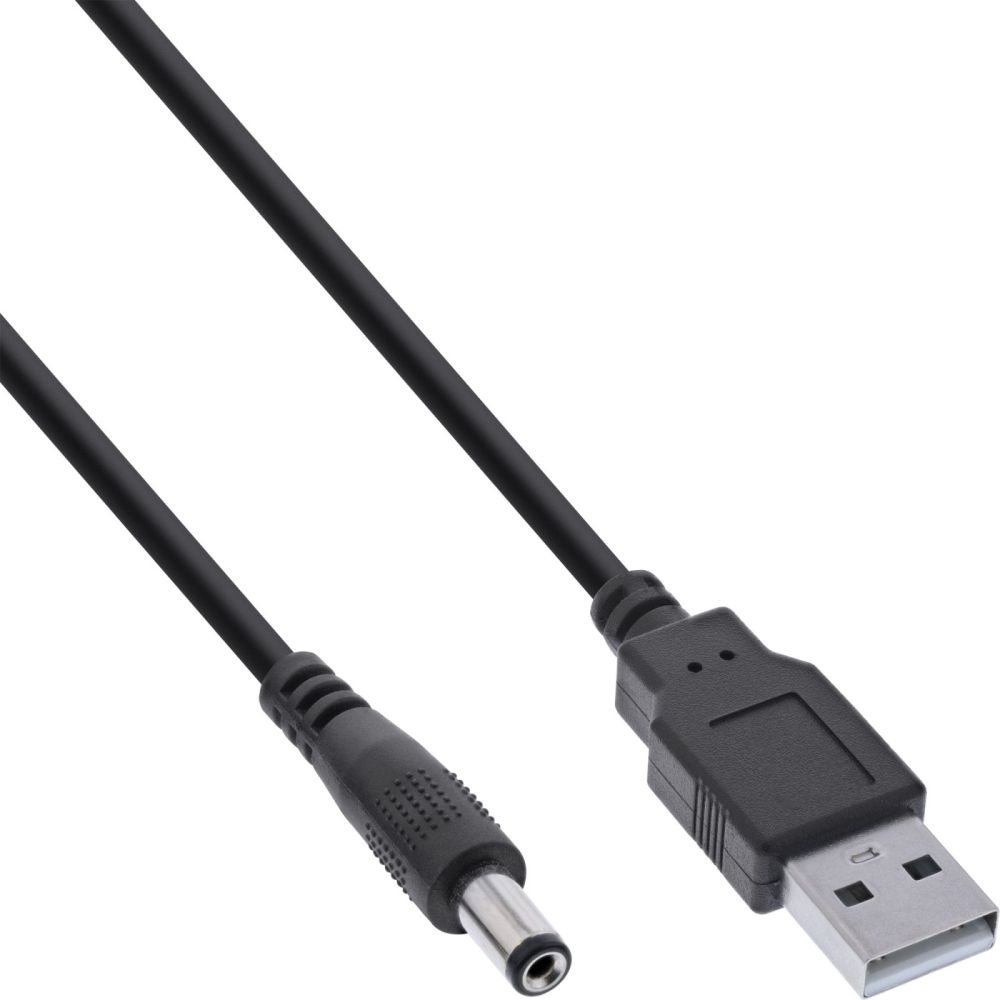

InLine® adapter cable, USB A male to DC 5.5x2.50mm plug, black, 1m content_copy

Simple 5 V power supply via USB for devices with 5.5 x 2.50 mm DC socketSimple 5 V supply without a power supply: Use a USB port as a power source.
Compatible DC size 5.5 x 2.50 mm: Connect directly to devices with a matching socket.
Up to 15 W power: 5 V/3 A for suitable small devices.
Safe polarity: Positive inside, negative outside clearly indicated.
This USB-to-DC power adapter cable delivers 5 V for electronic devices with a 5.5 x 2.50 mm DC socket. Connect the USB A plug to a 5 V source and power the target device directly via the DC barrel plug. The clearly defined polarity (positive inside, negative outside) supports a correct connection. AWG 24 conductors provide reliable power delivery up to 3 A.
Practical in professional IT environments, for on-site installations and in service deployments when a 5 V supply needs to be provided quickly from an available USB port. This facilitates testing, commissioning, and temporary operation of small electronics in existing infrastructures of companies and public institutions.
Connection: USB A plug to DC 5.5 x 2.50 mm barrel plug
Voltage: 5 V DC
Current: max. 3 A
Power: max. 15 W
Polarity: positive inside, negative outside
Conductor cross-section: AWG 24
Color: black

Certificates
Compliance certificates	RoHS
Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
Cable length	1 m
Connector 1	USB A
Connector 2	5.5 x 2.5 mm
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	24
Other features
Dimensions (WxDxH)	16 x 1000 x 9 mm
Packaging data
Quantity per pack	1 pc(s)
Package type	Polybag
Package width	90 mm
Package depth	120 mm
Package height	12 mm
Package weight	30 g
Power
Input voltage	5 V
Maximum current	3 A
Technical data
Width packaging	0.090m
Side B	DC plug 5.5/2.5mm
Height packaging	0.012m
Article width	1.60cm
Colour	Black
Operation temperature	0 - 50°C
Packaging volume	0.0002m³
Article length	100.00cm
Length packaging	0.120m
Weight	0.030kg
Storage temperature	-20 - 60°C
Diameter	AWG 24
Net weight	0.026kg
USB specification	USB 2.0
Article height	0.90cm
Side A	USB-A male
Technical details
Maximum power	15 W
Weight & dimensions
Width	16 mm
Depth	1000 mm
Height	9 mm
Weight	26 g

---
