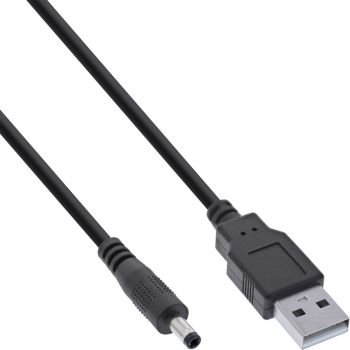

InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m
|
1,62 EUR |
|||||||||||
|
( 1,93 EUR incl. VAT ) ≈ £1.36 | ≈ $1.81 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22194231 | ||||||||||
| Mfg Part No: | 26806D | ||||||||||
| UPC/EAN: | 4043718310104 | ||||||||||
| Weight: | 0.028 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 26806D:
Clearly defined polarity: Positive inside, negative outside for correct connection.
Up to 15 W power: AWG24 conductor allows up to 3 A at 5 V.
Quick start-up: USB-A plug to DC barrel plug without additional adapter.
This adapter cable routes the 5 V voltage of a USB port to a 4.0 x 1.70 mm DC barrel plug and reliably supplies power to compatible electronic devices. The fixed polarity with positive inside and negative outside as well as the AWG24 conductor support a stable supply up to 15 W (5 V, 3 A) without complex installation steps.
It is suitable for use in professional IT environments, for on-site installations and service deployments, and in existing infrastructures of companies and public institutions when a compact, ready-to-use 5 V power feed is required.
Connector: USB-A plug to 4.0 x 1.70 mm DC barrel plug
Polarity: Positive inside, negative outside
Conductor: AWG24
Power: max. 15 W
Voltage: 5 V DC
Current: up to 3 A
Color: Black
| Certificates | |
| Compliance certificates | RoHS |
| Features | |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 1 m |
| Connector 1 | USB A |
| Connector 2 | 4.0 x 1.7 mm |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24 |
| Other features | |
| Dimensions (WxDxH) | 15 x 1000 x 8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Package width | 90 mm |
| Package depth | 130 mm |
| Package height | 15 mm |
| Package weight | 30 g |
| Power | |
| Input voltage | 5 V |
| Maximum current | 3 A |
| Technical data | |
| Operation temperature | 0 - 50°C |
| Diameter | AWG 24 |
| Packaging volume | 0.0002m³ |
| Article length | 100.00cm |
| Width packaging | 0.090m |
| Side B | DC plug 4.0/1.7mm |
| USB specification | USB 2.0 |
| Article height | 0.80cm |
| Side A | USB-A male |
| Net weight | 0.026kg |
| Height packaging | 0.015m |
| Article width | 1.50cm |
| Colour | Black |
| Storage temperature | -20 - 60°C |
| Length packaging | 0.130m |
| Weight | 0.028kg |
| Technical details | |
| Maximum power | 15 W |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 1000 mm |
| Height | 8 mm |
| Weight | 26 g |
Questions & answers
What is the delivery time of InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m?
The article InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 26806D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m always at the best possible price. We can give you a discount of 2% on InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® USB DC power adapter cable, USB A male to DC plug 4.0x1.70mm, black, 1m we can offer you a price of 1,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
