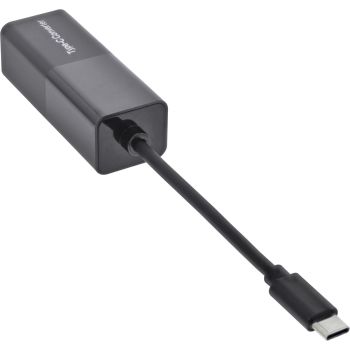

InLine® Notebook power supply unit for USB-C 7-in-1 charging set content_copy

Continue using an existing power supply via USB-CSave resources instead of buying new: Continue using an existing notebook power supply with DC plug on a USB-C device.
Automatic voltage selection: The converter provides 5-20 V according to the connected device's requirements.
Wide connector coverage: 6 DC adapters plus integrated 5.5 x 2.1 mm socket for common power supply plugs.
Up to 65 W charging power: Uses the power of the existing power supply up to a maximum of 65 W.
Quick setup: Attach the matching adapter and charge via USB-C, no tools required.
The 7-in-1 charging set converts the DC output of an existing power supply to USB-C and thus enables charging of compatible USB-C devices, including modern notebooks. Voltage negotiation is automatic, so the connected device receives the appropriate voltage between 5 V and 20 V. This makes it possible to continue using proven power supplies without a new purchase.
In everyday use, the solution proves itself in professional IT environments, in on-site installations and service deployments as well as in existing infrastructures of companies and public institutions when different device generations are operated in parallel and existing power supplies are to be used efficiently.
Input connector: DC socket 5.5 x 2.1 mm (in the converter)
Output connector: USB-C plug
Input: DC 18-20 V, max. 3.25 A (nominal 19 V, max. 65 W)
Output: DC 5 V/9 V/12 V/15 V max. 3 A, 20 V max. 3.25 A
Adapters: 6x DC adapters (C 5.5 x 2.5 mm; G 4.0 x 1.7 mm; O 4.5 x 3.0 mm; I 7.4 x 5.0 mm; K 7.9 x 0.9 mm; M 11 x 4.5 mm right-angled)
Color: Black

Features
Product colour	Black
Other features
Dimensions (WxDxH)	26 x 175 x 22 mm
Packaging data
Package width	160 mm
Package depth	115 mm
Package height	26 mm
Package weight	79 g
Power
Input voltage	5 - 20 V
Input current	3.25 A
Technical data
Width packaging	0.160m
Packaging volume	0.0005m³
Article length	17.50cm
Operation temperature	0 - 50°C
Height packaging	0.026m
Net weight	0.031kg
Side B	DC female
Side A	USB-C male
Signal	Power
Storage temperature	-20 - 60°C
Type	USB charging cable
Article width	2.60cm
Weight	0.079kg
Length packaging	0.115m
Article height	2.20cm
Colour	Black
Gold plated contacts
UL
Weight & dimensions
Width	26 mm
Depth	175 mm
Height	22 mm
Weight	31 g

---
