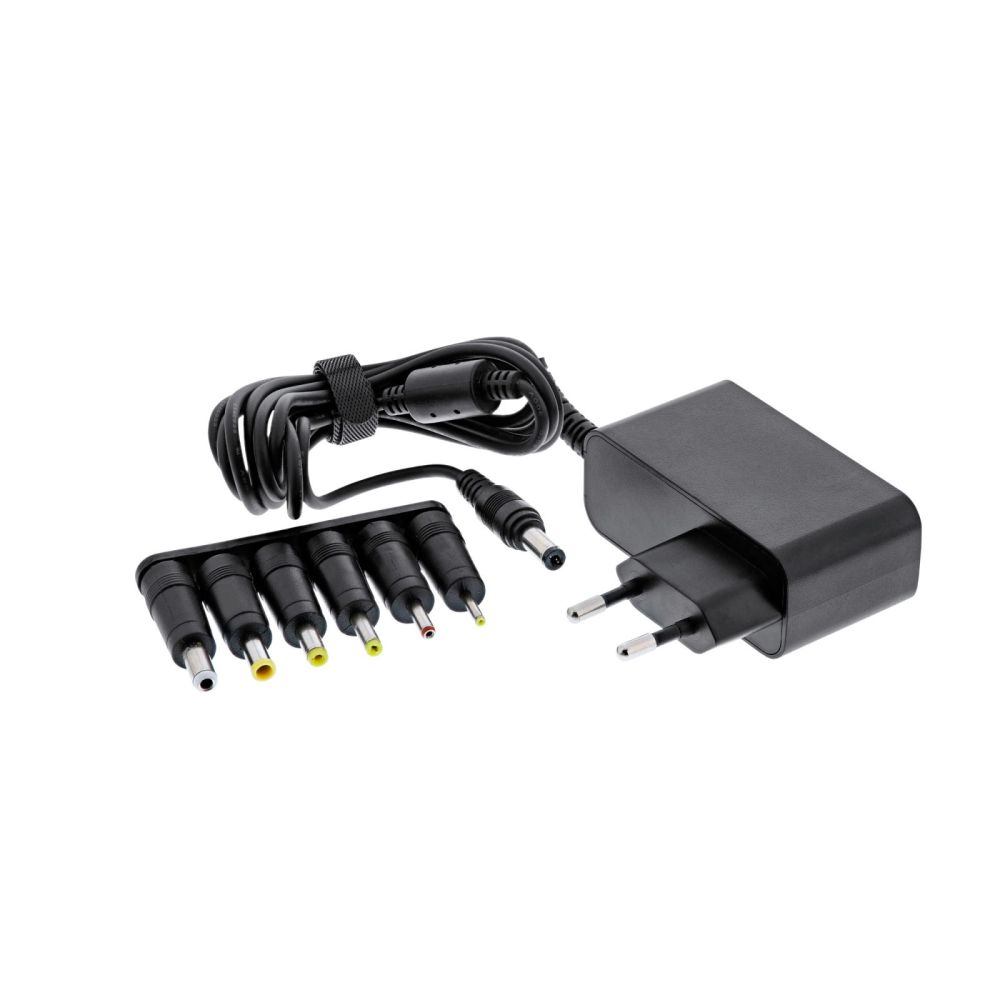

InLine® Universal power supply, 12V / 24W with 6 exchangeable plugs content_copy

Flexible 12 V power supply with interchangeable plugsWide device compatibility: Fixed 5.5 x 2.1 mm plug plus 6 interchangeable plugs cover many socket formats.
Reliable 12 V power up to 24 W: Delivers up to 2.0 A for compatible devices.
Protection for connected electronics: Overload, overvoltage, and short-circuit protection in the power supply.
Worldwide use without switching: 100-240 V AC at 50/60 Hz.
Efficient operation: 87.9 % average efficiency and 0.05 W at no load.
This universal plug-in power supply provides 12.0 V DC with up to 24.0 W. Thanks to the fixed 5.5 x 2.1 mm plug and six interchangeable plugs, numerous small devices such as radios, computer accessories, cameras, or toys can be powered directly. The fixed polarity (positive inside, negative outside) and integrated protection circuits support safe use.
In daily use it proves itself in professional IT environments, in on-site installations, and in service deployments. In existing infrastructures of companies and public institutions, the replaceable plugs also facilitate quick replacement supply without long waiting times.
Output voltage: 12.0 V DC
Output current: max. 2.0 A
Output power: 24.0 W
Input voltage: 100-240 V AC
Input frequency: 50/60 Hz
Input current: 0.9 A
Fixed plug: 5.5 x 2.1 mm DC
Plug options: 6 interchangeable plugs (5.5 x 2.5 mm; 5.0 x 3.0 mm, 1 mm inner pin; 4.8 x 1.7 mm; 4.0 x 1.7 mm; 3.5 x 1.35 mm; 2.5 x 0.7 mm)
Polarity: positive inside, negative outside
Protection features: overload protection, overvoltage protection, short-circuit protection
Efficiency (average): 87.9 %
Efficiency at 10 % load: 83.3 %
No-load power consumption: 0.05 W
Cable length: approx. 1.8 m

Design
Product colour	Black
Features
Purpose	Universal
Power supply type	Indoor
Power current type	AC-to-DC
Input voltage	100 - 240 V
Input frequency	50 / 60 Hz
Input current	0.9 A
Output power	24 W
Output voltage	12 V
Output current	2 A
Power protection features	Over voltage, Overload, Short circuit
Adjustable output voltage
Detachable power connectors
Other features
Dimensions (WxDxH)	75 x 80 x 28 mm
Customs code	8504312190
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	120 mm
Package depth	167 mm
Package height	75 mm
Package weight	198 g
Package volume	300 cm³

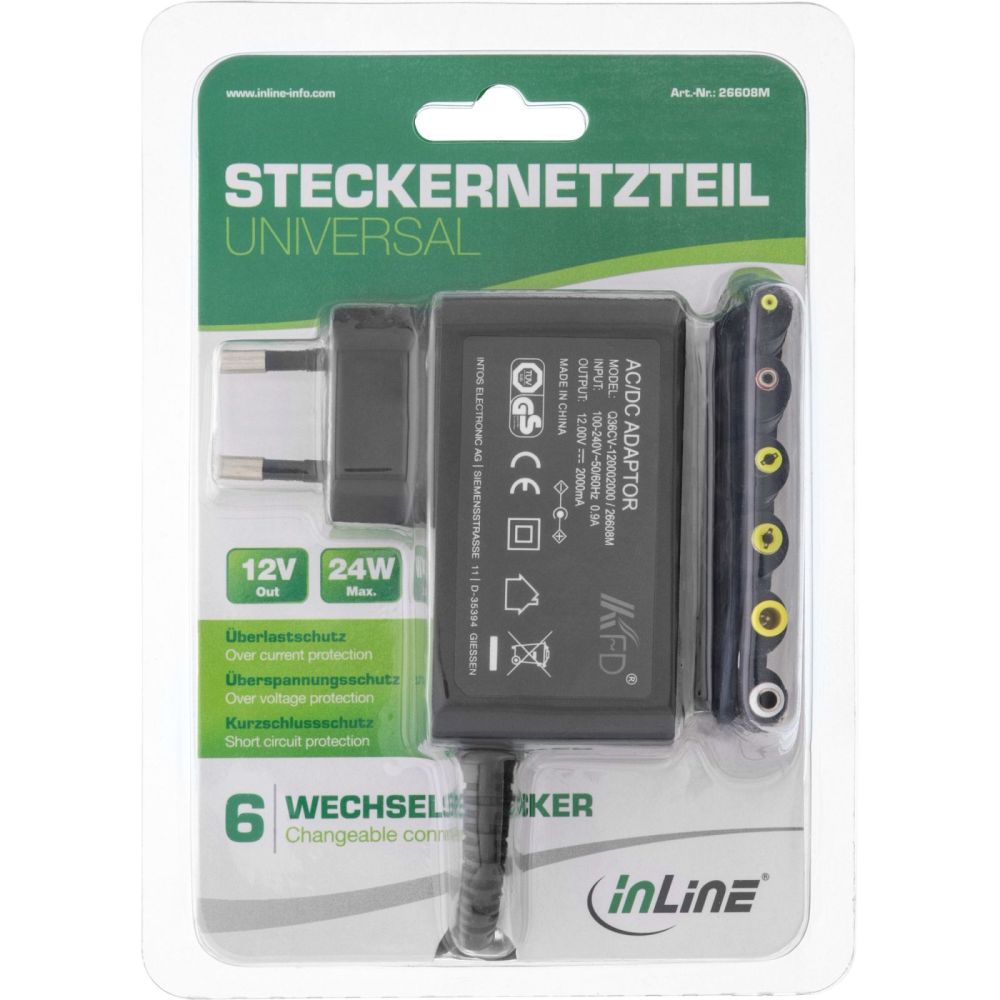

Package type	Blister
Performance
Connector(s)	5.5 x 2.50mm, 5.5 x 2.1mm, 5.0 x 1mm, 4.8 x 1.70mm, 4.0 x 1.70mm, 3.5 x 1.35mm, 2.5 x 0.70mm
Technical data
Output voltage	12.0V
Article length	8.00cm
Length packaging	0.167m
Max. output power	24.0W
Article height	2.80cm
Width packaging	0.120m
Plug type	DC connector (6 different)
Net weight	0.145kg
Packaging volume	0.0003m³
Article width	7.50cm
Weight	0.198kg
Height packaging	0.075m
Weight & dimensions
Cable length	1.8 m
Width	75 mm
Depth	80 mm
Height	28 mm
Weight	145 g

---
