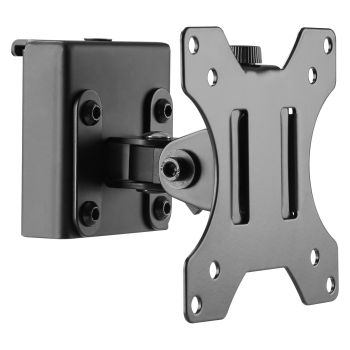

InLine® Slatwall short monitor mount, VESA 75/100 mm, black content_copy

Slatwall monitor mount for flexible and space-saving screen mountingFlexible screen positioning: The monitor mount allows the monitor to be tilted, swivelled and rotated for a customised and comfortable position at your workstation.
Compatible with VESA 75/100 mm: Suitable for monitors from 13‘ to 27’ and compatible with VESA 75 x 75 mm and 100 x 100 mm for easy integration of suitable screens.
Space-saving Slatwall mounting: The short design allows for compact monitor mounting on the InLine Slatwall panel and supports a structured workplace layout.
Sturdy steel construction: The steel monitor mount supports monitors weighing up to 6.5 kg and is suitable for daily use in various working environments.
Modular workstation system: The mount complements the InLine Slatwall series and can be flexibly combined with other accessories such as shelves or organisational solutions.
The InLine Slatwall short monitor mount enables space-saving mounting of a monitor on a compatible InLine Slatwall panel. The compact design supports a structured workplace layout and is suitable for various monitor configurations within modular Slatwall installations.
The monitor mount supports monitors with screen sizes ranging from 13‘ to 27’ as well as VESA 75/100 mm. Thanks to the tilt, swivel and screen rotation functions, the monitor can be flexibly adjusted to the desired position.
The sturdy steel construction is suitable for monitors weighing up to 6.5 kg. As part of the InLine Slatwall series, the mount can be combined with other accessories and integrated into existing workplace solutions.
Suitable for screen sizes from 13‘ to 27’
VESA compatible: 75/100 mm
Number of screens: 1
Weight capacity per screen: 6.5 kg
Tilt range: +45° to -45°
Swivel range: +15° to -15°
Screen rotation: +180° to -180°
Material: Steel
Colour: Black
Suitable for mounting on InLine Slatwall panels

Features
Product colour	Black
Housing material	Steel
Maximum weight capacity	6.5 kg
Panel mounting interface	75 x 75,100 x 100 mm
Maximum screen size	33 cm (13")
Minimum screen size	33 cm (13")
Number of displays supported	1
Tilt angle range	-45 - 45°
Swivel angle range	-15 - 15°
Maximum VESA mount	100 x 100 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package height	110 mm
Package width	120 mm
Package depth	120 mm
Package weight	820 g
Package volume	1600 cm³
Technical data
Weight	0.820kg
VESA	75x75 / 100x100mm
Load (max.)	6.5kg
Packaging volume	0.0016m³
Article length	11.00cm
Special feature	Slatwall monitor holder
Article width	11.00cm
Height packaging	0.110m
Article height	11.00cm
(2) Selection	For 1 monitor
Width packaging	0.120m
(1) Configurator	Monitor holder (2)
Length packaging	0.120m
Rotatable	+/-15°
Suitable for	Displays from 33cm (13") to 68cm (27")
Net weight	0.683kg
Colour	Black
Tiltable	+/-45°
Hinged/swivel arm
Gas spring
Weight & dimensions
Weight	683 g
Dimensions (WxDxH)	110 x 110 x 110 mm
Width	110 mm
Depth	110 mm
Height	110 mm

---
