InLine® Table mount with lift and USB/Audio up to max. 82cm 32" 9kg
|
52,99 EUR |
|
|
( 63,06 EUR incl. VAT ) ≈ £44.35 | ≈ $59.30 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193773 |
| Mfg Part No: | 23158B |
| UPC/EAN: | 4043718293124 |
| Weight: | 4 kg |

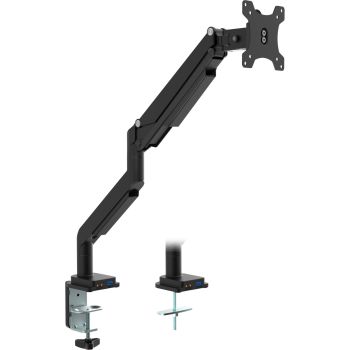

Product information for Inline 23158B:
Flexible alignment: Tilt, swivel, and rotate for optimal visibility.
Quick mounting thanks to removable VESA plate: Change the display quickly.
Tidy workspace with cable management: Route cables neatly.
Convenient access to ports: Use USB 3.0 Type A and 2x 3.5 mm jack directly at the desk.
The gas-spring monitor arm supports one display and allows stepless, precise balancing. The swivel arm makes operation easier, while the integrated USB/audio extension enables quick connection of peripherals and headset at the workstation. The removable VESA plate simplifies installation and changing the display.
The mount proves itself in professional IT environments, on-site installations, and daily service deployments. It also helps create ergonomic workstations and clean, flexible cabling in existing infrastructures of companies and public institutions.
Number of monitors: 1
Display size: 43-81 cm (17-81,3 cm ( 32 inch ))
Load capacity: 1-9 kg per display
VESA compatibility: 75x75 mm, 100x100 mm
Tilt range: +90° to -90°
Swivel range: +90° to -90°
Rotation: +90° to -90°
Mounting: desk clamp 10-85 mm, grommet mount 10-80 mm
Ports: 1x USB 3.0 Type A, 2x 3.5 mm jack (extension)
Material: aluminum
Mechanism: gas spring
Cable management: integrated
VESA plate: removable
Tool holder: available
| Design | |
| Product colour | Black |
| Ergonomics | |
| Height adjustment type | Gas spring |
| Tilt angle range | -90 - 90° |
| Swivel angle range | -90 - 90° |
| Height adjustment | |
| Tilt adjustment | |
| Cable management | |
| Mounting | |
| Maximum weight capacity | 9 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 43.2 cm (17") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Suitable for TV | |
| Packaging data | |
| Package width | 305 mm |
| Package depth | 430 mm |
| Package height | 120 mm |
| Package volume | 30300 cm³ |
| Package weight | 4 kg |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Technical data | |
| Number of monitors | 1 |
| Width packaging | 0.305m |
| Load (max.) | 9kg |
| Packaging volume | 0.0303m³ |
| Rotatable | +/-90° |
| Suitable for | Displays from 43cm (17") to 81cm (32") |
| Special feature | With lifter and USB 3.0 |
| Net weight | 3.700kg |
| VESA | 75x75 / 100x100mm |
| Height packaging | 0.120m |
| Weight | 4.000kg |
| Length packaging | 0.430m |
| Tiltable | +/-90° |
| Gas spring | |
| Adjustable in height | |
| Hinged/swivel arm | |
| Weight & dimensions | |
| Weight | 3.7 kg |
Questions & answers
What is the delivery time of InLine® Table mount with lift and USB/Audio up to max. 82cm 32" 9kg?
The article InLine® Table mount with lift and USB/Audio up to max. 82cm 32" 9kg is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 23158B to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Table mount with lift and USB/Audio up to max. 82cm 32" 9kg always at the best possible price. We can give you a discount of 2% on InLine® Table mount with lift and USB/Audio up to max. 82cm 32" 9kg if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
