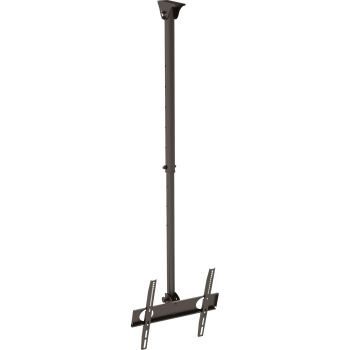

InLine® Flat & Bevel Roof Bracket for TFT / LED / Plasma 32-139,7 cm ( 55 inch ) up to 50kg content_copy

Space-saving ceiling mounting with adjustable height and tiltReliable load capacity up to 50 kg: Mount displays securely to the ceiling.
Variable mounting height in 10 cm steps: Ceiling distance 105-156 cm for the right position.
Tilt function 0 to -15 °: Reduce reflections and adjust the viewing angle.
Wide VESA compatibility: 200x100, 200x200, 200x400, 400x400 mm for many devices.
Tidy cable routing: Integrated cable management keeps things organized.
The ceiling mount accommodates flat-panel displays of 81-140 cm (32-139,7 cm ( 55 inch )) and offers an adjustable tilt of 0 to -15 °. The mounting height can be set in 10 cm steps between 105 and 156 cm. The integrated cable management routes cables neatly to the ceiling. The scope of delivery includes accessories for mounting to the ceiling and the display. The mount can be installed on level ceilings and sloped ceilings. The supported VESA hole patterns are 200x100, 200x200, 200x400 and 400x400 mm.
In meeting and training rooms, ceiling mounting creates free floor space and a clear line of sight. In reception areas, sales floors, or information zones, the screen height can also be precisely adjusted and cables remain protected. This is ideal for professional IT environments, on-site installations, service deployments, and existing infrastructures in companies and public institutions.
Mounting type: ceiling
Screen size: 81-140 cm (32-139,7 cm ( 55 inch ))
VESA: 200x100, 200x200, 200x400, 400x400 mm
Tilt: 0 to -15 °
Ceiling distance: 105-156 cm (in 10 cm steps)
Load capacity: up to 50 kg
Ceiling types: level ceilings and sloped ceilings
Scope of delivery: accessories for mounting to ceiling and display
Cable management: integrated

Logistics data
Package volume	15000 cm³
Performance
Mounting type	Ceiling
Maximum weight capacity	50 kg
Product colour	Black
Height adjustment type	Manual
Height adjustment range	1050 - 1560 mm
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	200 x 100,400 x 400 mm
Tilt angle range	0 - 15°
Ceiling mounting tube length (max)	156 cm
Ceiling mounting tube length (min)	105 cm
Cable management
Height adjustment
Tilt adjustment
Technical data
Height packaging	0.075m
VESA	200x100 / 200x200 / 200x400 / 400x400mm
Net weight	5.620kg
Type	Ceiling mount
Length packaging	0.870m
Packaging volume	0.0150m³
Load (max.)	50kg
Tiltable	0/-15°
Suitable for	Displays from 81cm (32") to 140cm (55")
Weight	6.250kg
Width packaging	0.230m
Height	Extend from 41.3"-61.4" (105-156cm, in steps of 10cm)
Technical details
Maximum screen size	139.7 cm (55")
Minimum screen size	81.3 cm (32")
Weight & dimensions
Weight	5.62 kg
Package width	230 mm
Package depth	870 mm
Package height	75 mm
Package weight	6.25 kg

---
