InLine® Wall Mount Projector / Beamer Bracket max. 20kg
|
25,34 EUR |
|
|
( 30,15 EUR incl. VAT ) ≈ £21.21 | ≈ $28.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2016097 |
| Mfg Part No: | 23138A |
| UPC/EAN: | 4043718172375 |
| Weight: | 1.539 kg |
Further Ceiling Mounts from InlineFurther products in category Ceiling Mounts
All products of Inline
Product information for Inline 23138A:
Carries up to 20 kg safely: Suitable for many projectors - ideal for home cinema or business.
Fully adjustable: 360° rotatable and +/- 15° tiltable for optimal image position.
Flexibly mountable: Suitable for hole spacing with 16-33 cm diagonal.
With security system: Lock protects against theft or unauthorized removal.
Decent design: Only 6 cm distance to the ceiling - elegant aluminum look.
This ceiling mount from InLine ensures a stable and flexible attachment of your projector. It is suitable for projectors up to 20 kg and can be optimally aligned thanks to the rotatable and tiltable design - for perfect image results in the home theater or conference room.
The mount supports different hole spacings (16-33 cm diagonal) and can be mounted in just a few simple steps. The integrated security lock offers additional protection in publicly accessible rooms.
The small distance to the ceiling (approx. 6 cm) makes the mount discreet and elegant - ideal for living rooms, offices or educational institutions. Robust material made of steel and aluminum ensures durability and reliable hold.
Carrying capacity: Up to 20 kg
Compatible with projectors / beamers
360° rotatable
+/- 15° tiltable
Hole spacing 16-33 cm diagonal
Ceiling distance approx. 6 cm
Security lock system
Color: silver
Material: aluminium / steel
Easy mounting
Fully adjustable: 360° rotatable and +/- 15° tiltable for optimal image position.
Flexibly mountable: Suitable for hole spacing with 16-33 cm diagonal.
With security system: Lock protects against theft or unauthorized removal.
Decent design: Only 6 cm distance to the ceiling - elegant aluminum look.
This ceiling mount from InLine ensures a stable and flexible attachment of your projector. It is suitable for projectors up to 20 kg and can be optimally aligned thanks to the rotatable and tiltable design - for perfect image results in the home theater or conference room.
The mount supports different hole spacings (16-33 cm diagonal) and can be mounted in just a few simple steps. The integrated security lock offers additional protection in publicly accessible rooms.
The small distance to the ceiling (approx. 6 cm) makes the mount discreet and elegant - ideal for living rooms, offices or educational institutions. Robust material made of steel and aluminum ensures durability and reliable hold.
Carrying capacity: Up to 20 kg
Compatible with projectors / beamers
360° rotatable
+/- 15° tiltable
Hole spacing 16-33 cm diagonal
Ceiling distance approx. 6 cm
Security lock system
Color: silver
Material: aluminium / steel
Easy mounting
| Logistics data | |
| Package volume | 3700 cm³ |
| Performance | |
| Mounting type | Ceiling/wall |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Housing material | Aluminium, Steel |
| Swivel angle range | 0 - 360° |
| Angle of rotation | 360° |
| Tilt angle range | -15 - 15° |

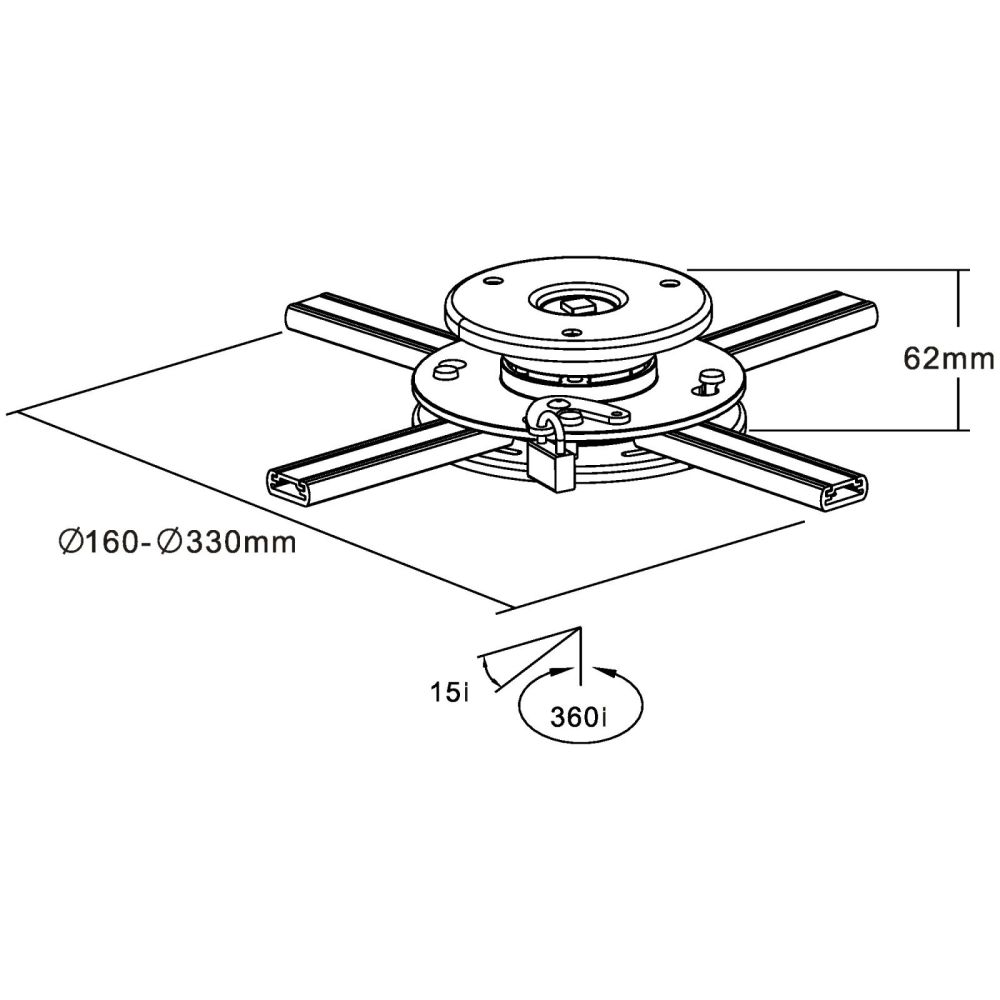

| Mounting holes diameter | 160 - 330 mm |
| Ceiling mounting tube length (max) | 6.2 cm |
| Safety lock | |
| Technical data | |
| Type | Ceiling mount |
| Length packaging | 0.360m |
| Net weight | 1.313kg |
| Height | approx. 60mm |
| Packaging volume | 0.0037m³ |
| Article length | 6.20cm |
| Load (max.) | 20kg |
| Hole distances | Approx. 160-330mm |
| Tiltable | +/-15° |
| Article width | 16.00cm |
| Height packaging | 0.065m |
| Article height | 16.00cm |
| Weight | 1.539kg |
| Suitable for | Beamer |
| Width packaging | 0.160m |
| Rotatable | 360° |
| Safety lock system | |
| Weight & dimensions | |
| Width | 160 mm |
| Height | 160 mm |
| Depth | 62 mm |
| Weight | 1.31 kg |
| Dimensions (WxDxH) | 160 x 62 x 160 mm |
| Package width | 160 mm |
| Package depth | 360 mm |
| Package height | 65 mm |
| Package weight | 1.54 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of InLine® Wall Mount Projector / Beamer Bracket max. 20kg?
The article InLine® Wall Mount Projector / Beamer Bracket max. 20kg is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 23138A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Wall Mount Projector / Beamer Bracket max. 20kg always at the best possible price. We can give you a discount of 2% on InLine® Wall Mount Projector / Beamer Bracket max. 20kg if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
