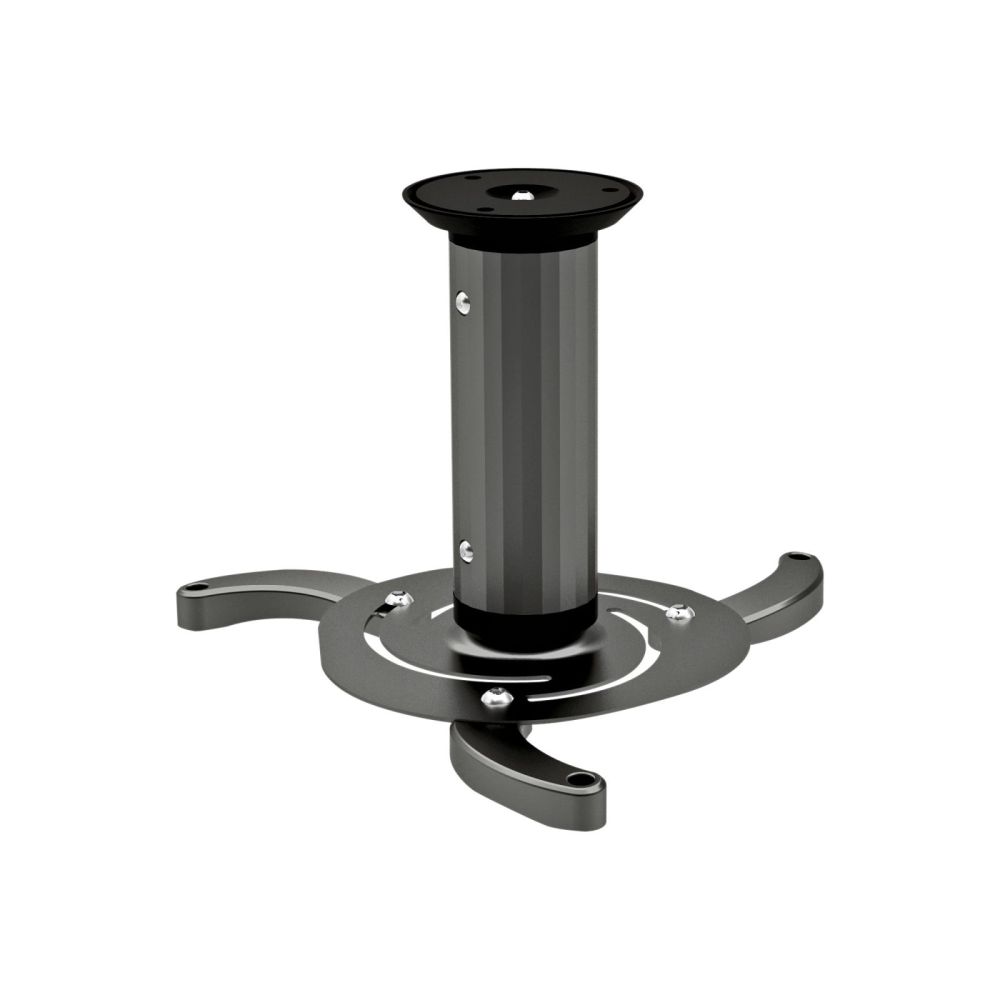

InLine® Projector Bracket height 130/200mm max. 10kg content_copy

Stable projector ceiling mount with flexible alignmentQuick alignment through tilt and rotation: Align the image precisely with +/- 15 ° tilt and 180 ° rotation.
Variable mounting height for optimal projection: Choose 130 or 200 mm distance to the ceiling for the right position.
Wide device compatibility thanks to 3-arm system: Use hole spacing of approx. 130-320 mm for many projectors.
Reliable load capacity at the ceiling: Supports projectors up to 10 kg securely.
With this ceiling mount you install your projector securely and in a space-saving way and align it precisely. +/- 15 ° tilt and 180 ° rotation help to set the projection angle to the screen precisely. Two selectable heights of 130 or 200 mm make positioning in the room easier.
It proves itself in conference and training rooms within existing infrastructures, in on-site setups and service deployments in companies and public institutions, where reliable and repeatable alignment is required.
Mounting type: ceiling mount
Device type: projector
Tilt: +/- 15 °
Rotation: 180 °

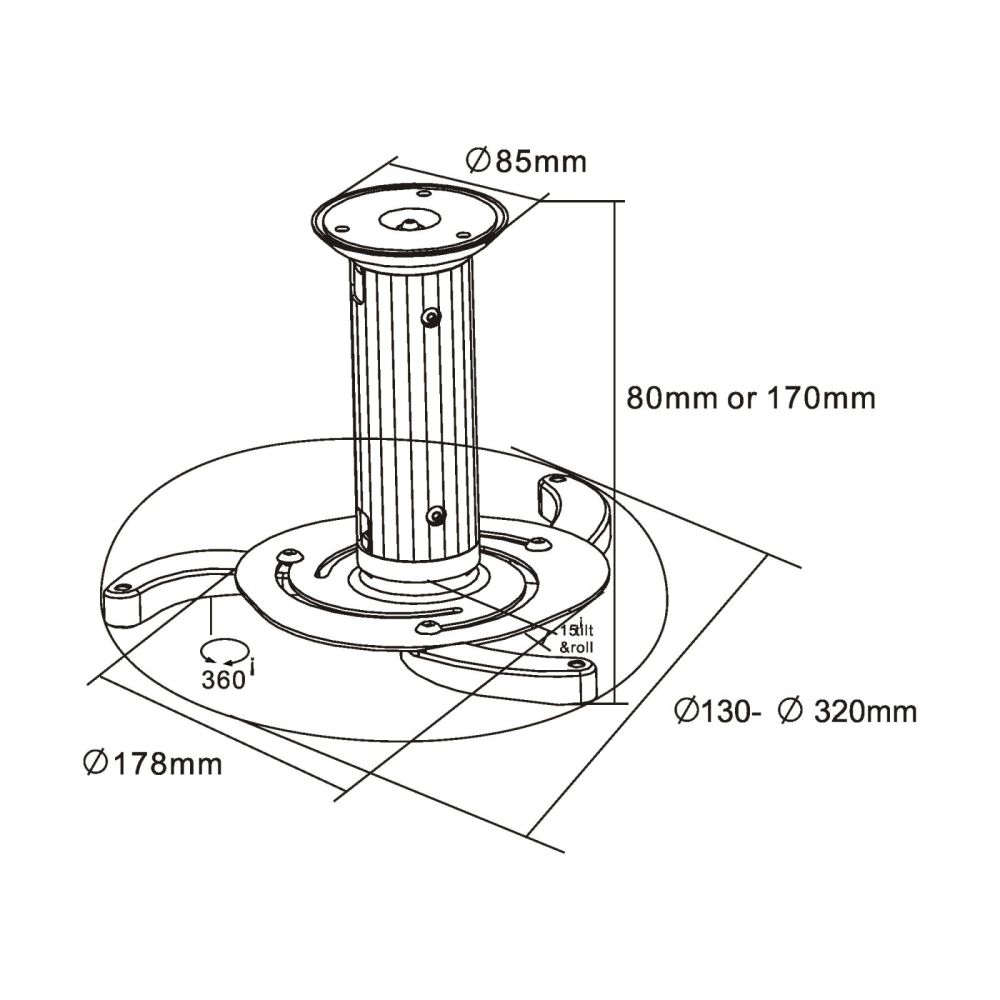

Height: 130/200 mm
Load capacity: up to 10 kg
Mount interface: 3 arms
Hole spacing diameter: approx. 130-320 mm

Logistics data
Package volume	4300 cm³
Performance
Mounting type	Ceiling
Maximum weight capacity	10 kg
Product colour	Black
Height adjustment range	130 - 200 mm
Swivel angle range	0 - 180°
Angle of rotation	180°
Tilt angle range	-15 - 15°
Mounting holes diameter	130 - 320 mm
Ceiling mounting tube length (max)	17 cm
Ceiling mounting tube length (min)	8 cm
Adjustable arm
Safety lock
Technical data
Height	130/200mm
Suitable for	Beamer
Packaging volume	0.0043m³
Net weight	1.135kg
Load (max.)	10kg
Tiltable	+/-15°
Hole distances	Approx. 130-320mm
Length packaging	0.310m
Rotatable	180°
Type	Ceiling mount
Height packaging	0.070m
Weight	1.355kg
Width packaging	0.200m
Safety lock system
Weight & dimensions
Weight	1.14 kg
Package width	200 mm
Package depth	310 mm
Package height	70 mm
Package weight	1.35 kg

---
