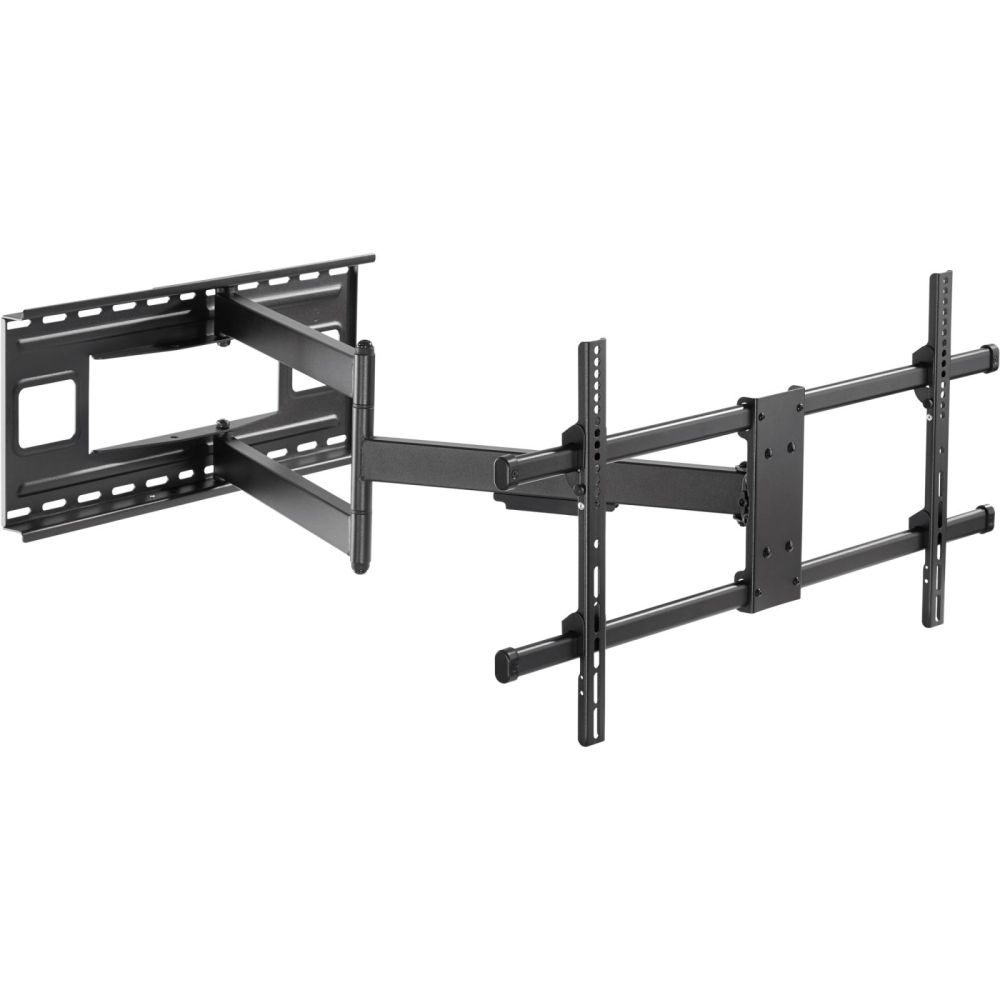

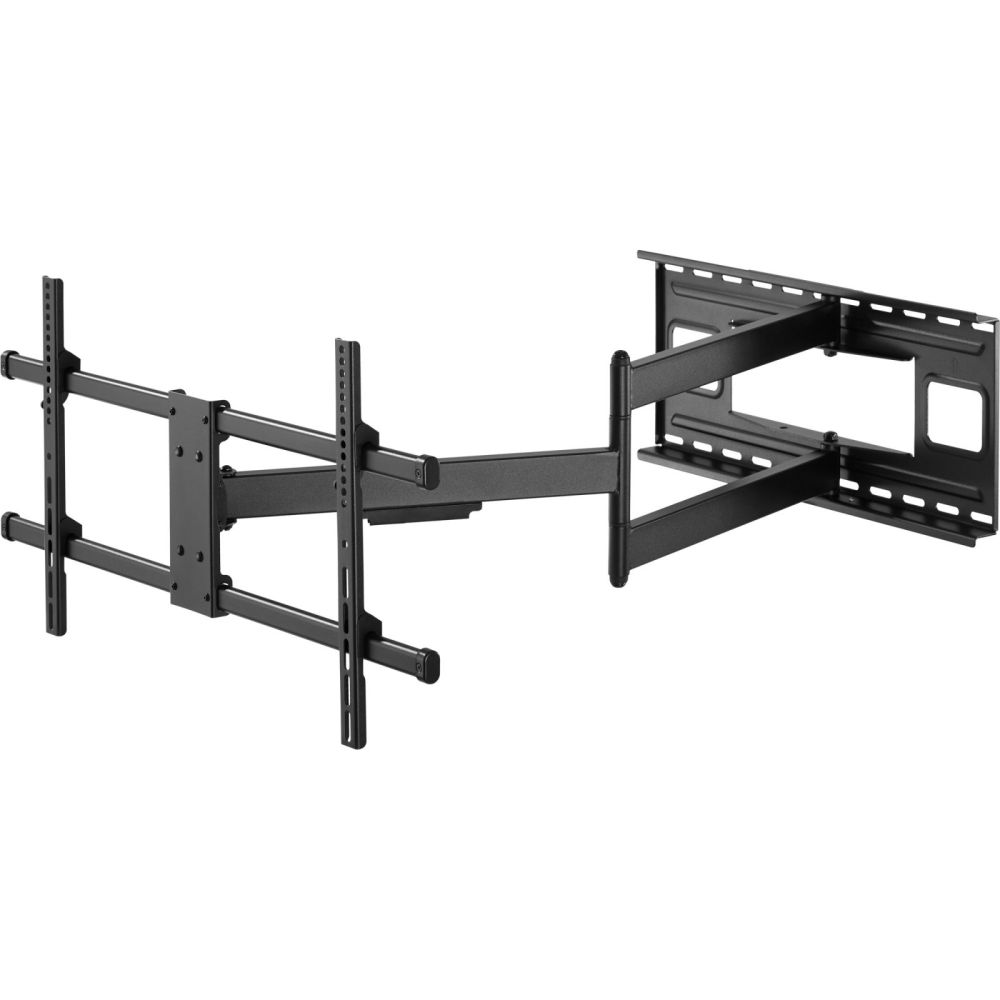

InLine® XL-Arm Full-Motion TV Wall Mount, for 109,2 cm ( 43 inch )-203,2 cm ( 80 inch ) Flat Panel TVs, max. 50kg content_copy

Flexible TV wall mounting with extra-long extensionLarge swivel and extension range: Arm extension up to 1015 mm enables flexible alignment and wide positioning.
Secure load capacity: Stable support for screens up to 50 kg.
Precise viewing angles: Tilt +5° to -15°, swivel +90° to -90°, horizontal correction ±3°.

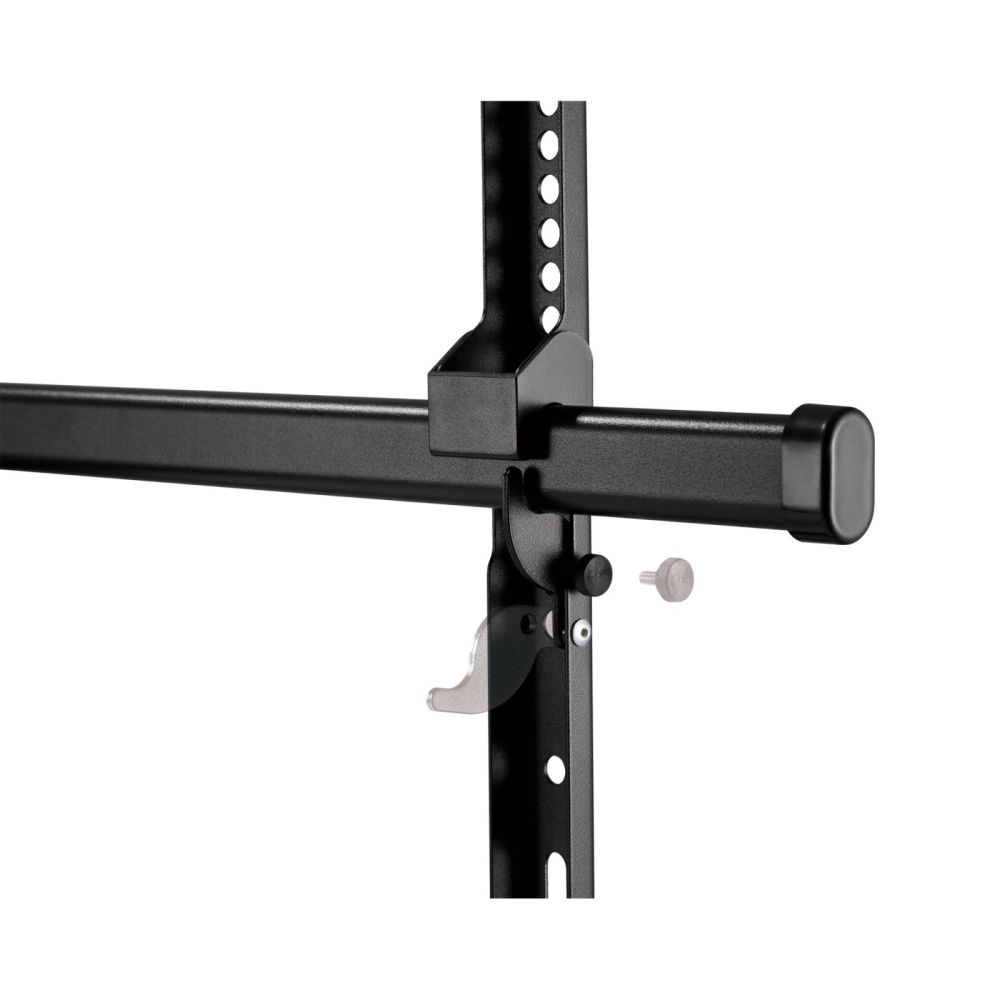

Fast handling: Quick-release mechanism makes removal and reinstallation easy.

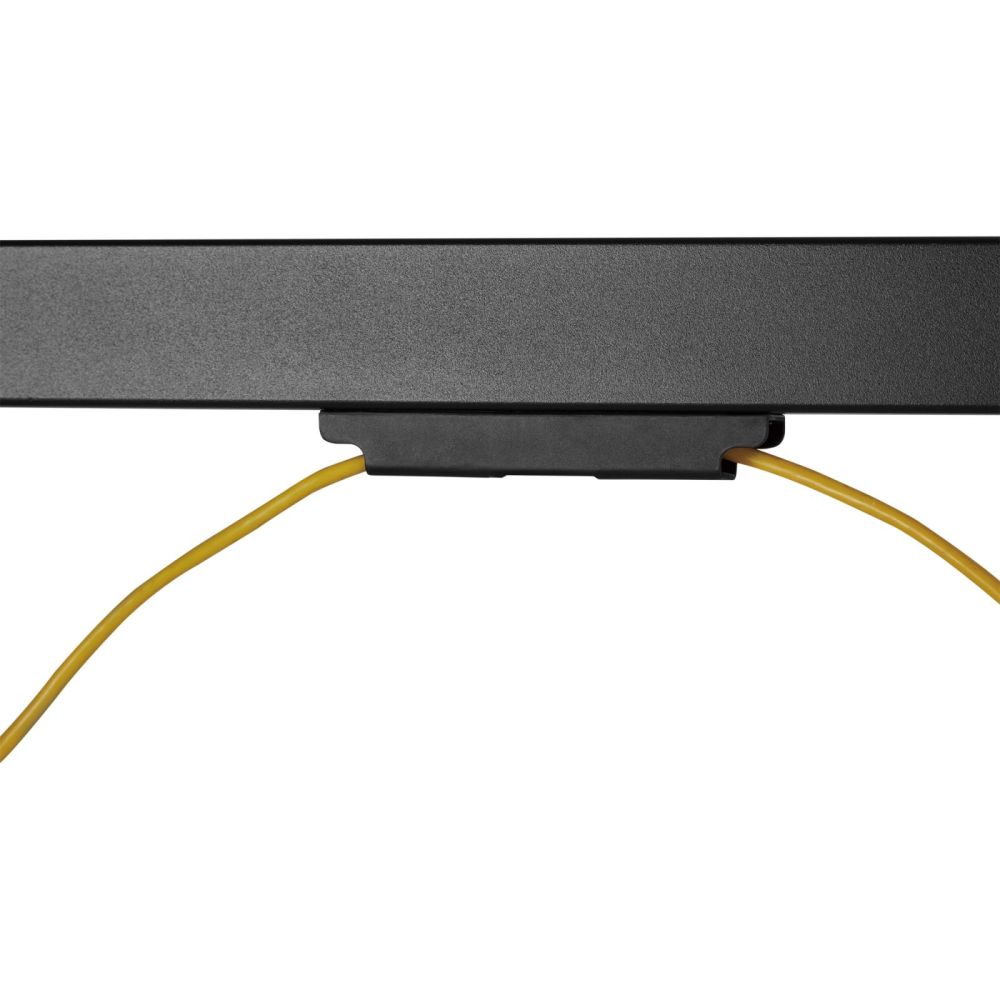

Tidy cable routing: Integrated cable management for a clean setup.

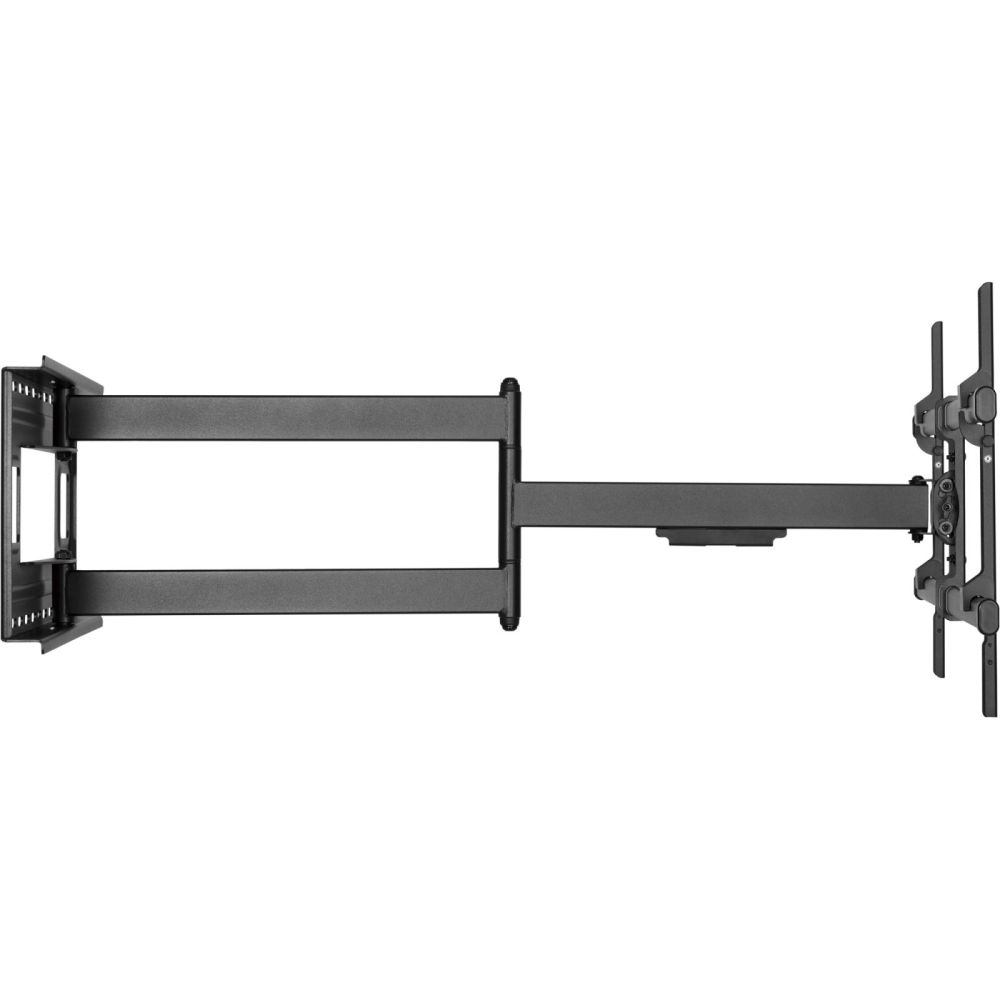

This fully articulating TV wall mount with extra-long extension positions large screens flexibly. The robust steel construction with powder-coated surface supports up to 50 kg, allows quick angle adjustment, and enables easy removal via quick-release mechanism. The integrated cable management routes cables neatly along the arms and improves the overall appearance.
In conference and training rooms, reception areas, and within existing infrastructures of companies and public institutions, the mount supports variable mounting scenarios. It is VESA-compatible up to 800x400 mm, fits 43-80 inches including curved models, and can be mounted on solid walls or double-stud walls with 406 mm, 450 mm, or 600 mm stud spacing.
Type: Fully articulating XL-arm TV wall mount
Material: Steel
Finish: Powder coating
Color: Black, fine-textured

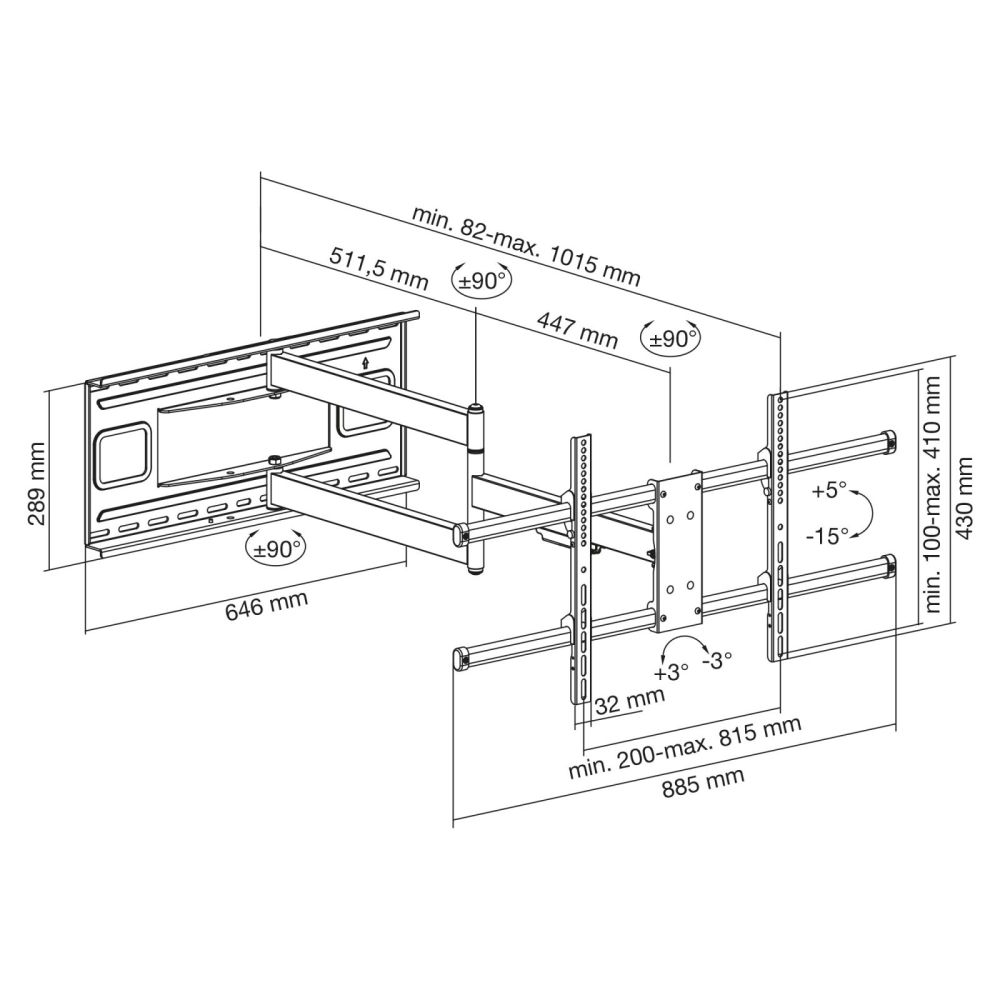

Dimensions: W 885 mm x H 430 mm x D 82-1015 mm
Arm extension: 1015 mm
Screen size: 43-80 inches (109-203 cm)
Suitable for curved TVs: Yes
Mounting hole pattern: VESA
VESA-compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400 mm
Weight capacity: 50 kg

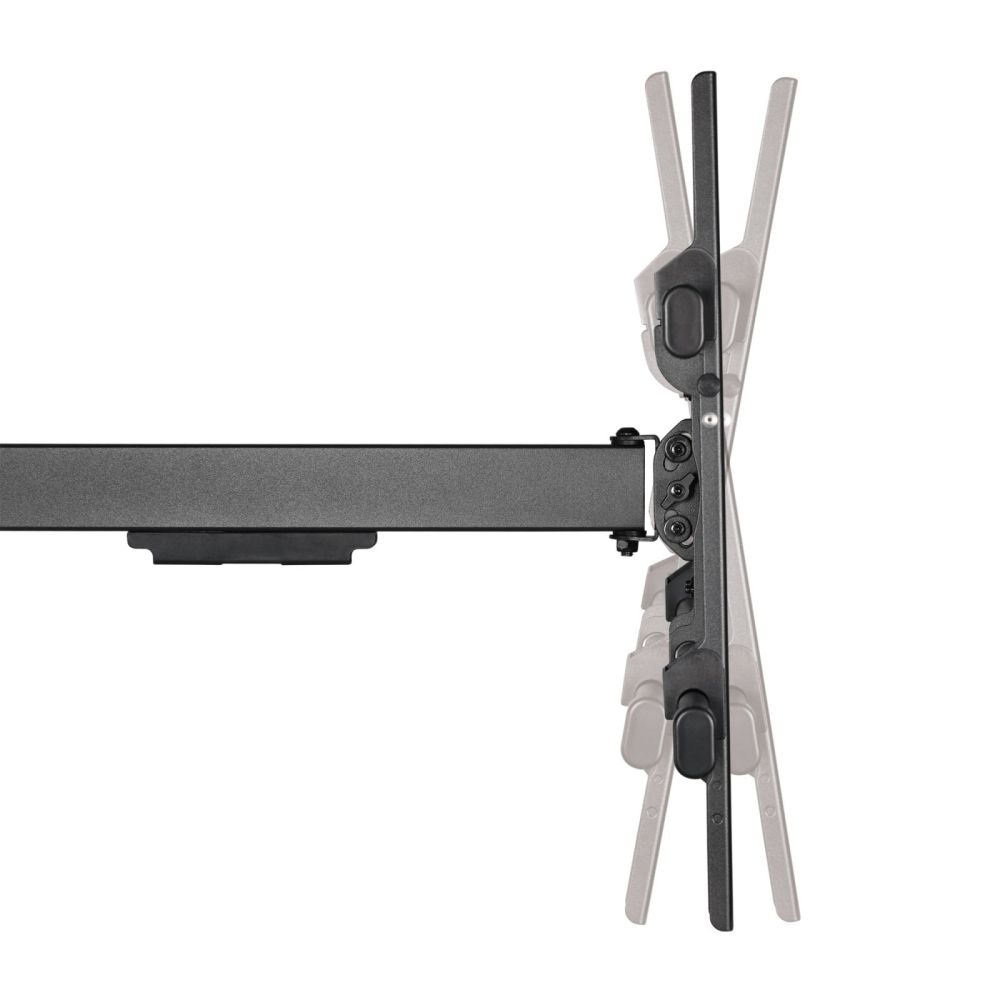

Tilt range: +5° to -15°
Swivel range: +90° to -90°
Screen level: +3° to -3°
Screen freely swiveling: Yes
Mounting surfaces: Solid wall, double-stud wall (406 mm/450 mm/600 mm)
Panel type: Removable plate
Wall plate: Fixed wall plate
Cable management: Yes
Level: Mini level included

Design
Product colour	Black
Housing material	Steel
Certification
Ergonomics
Tilt angle range	-15 - 5°
Swivel angle range	-90 - 90°
Pivot angle	-3 - 30°
Distance to the wall (max)	101.5 cm
Distance to the wall (min)	8.2 cm
Adjustable depth
Tilt adjustment
Cable management
Mounting
Maximum weight capacity	50 kg
Minimum screen size	109.2 cm (43")
Number of displays supported	1
Maximum screen size	109.2 cm (43")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 400 mm
Panel mounting interface	200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400
Mounting type	Wall
Packaging data
Package width	342 mm
Package depth	942 mm
Package height	74 mm
Package volume	23800 cm³
Package weight	12.4 kg
Technical data
VESA	200x200 / 300x200 / 300x300 / 400x200 / 400x300 / 400x400 / 600x400 / 800x400mm
Wall distance	8,2 - 101,5cm
Width packaging	0.342m
Height packaging	0.074m
Colour	Black
Weight	12.360kg
Packaging volume	0.0238m³
Rotatable	+/-90°
Load (max.)	50kg

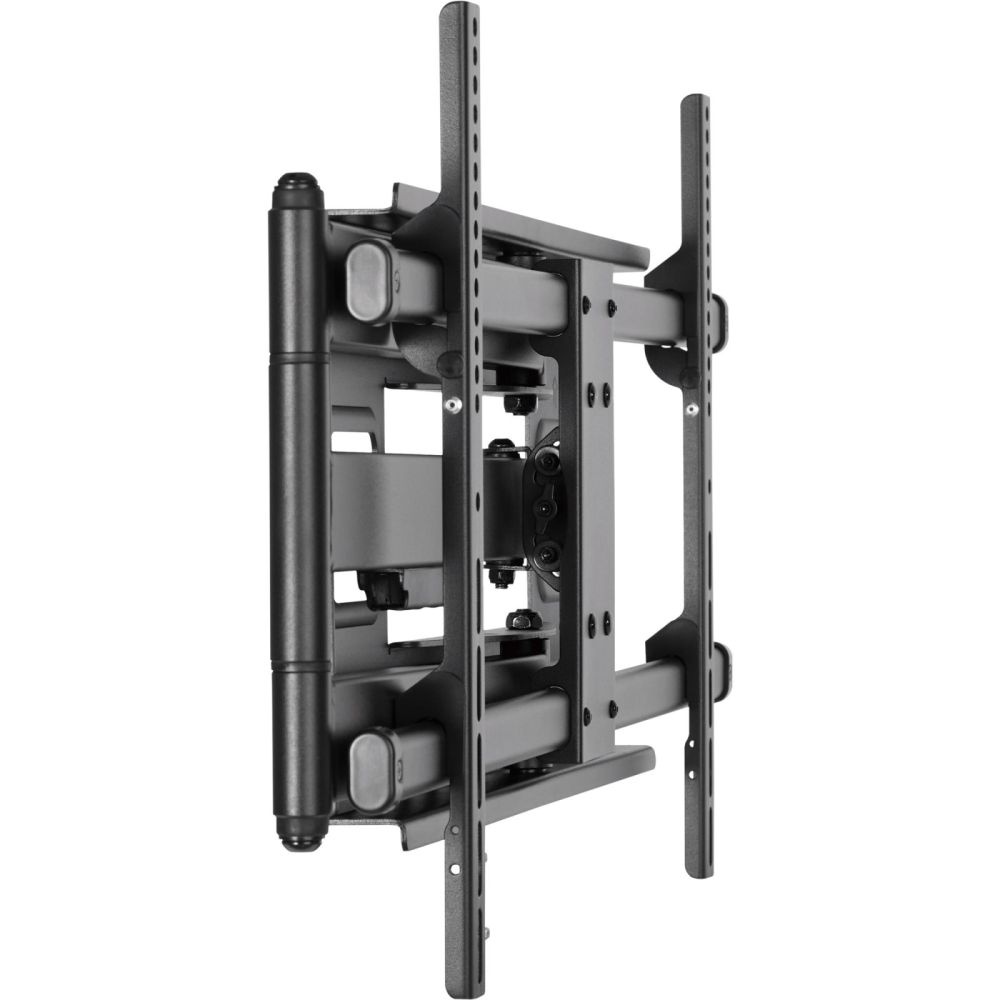

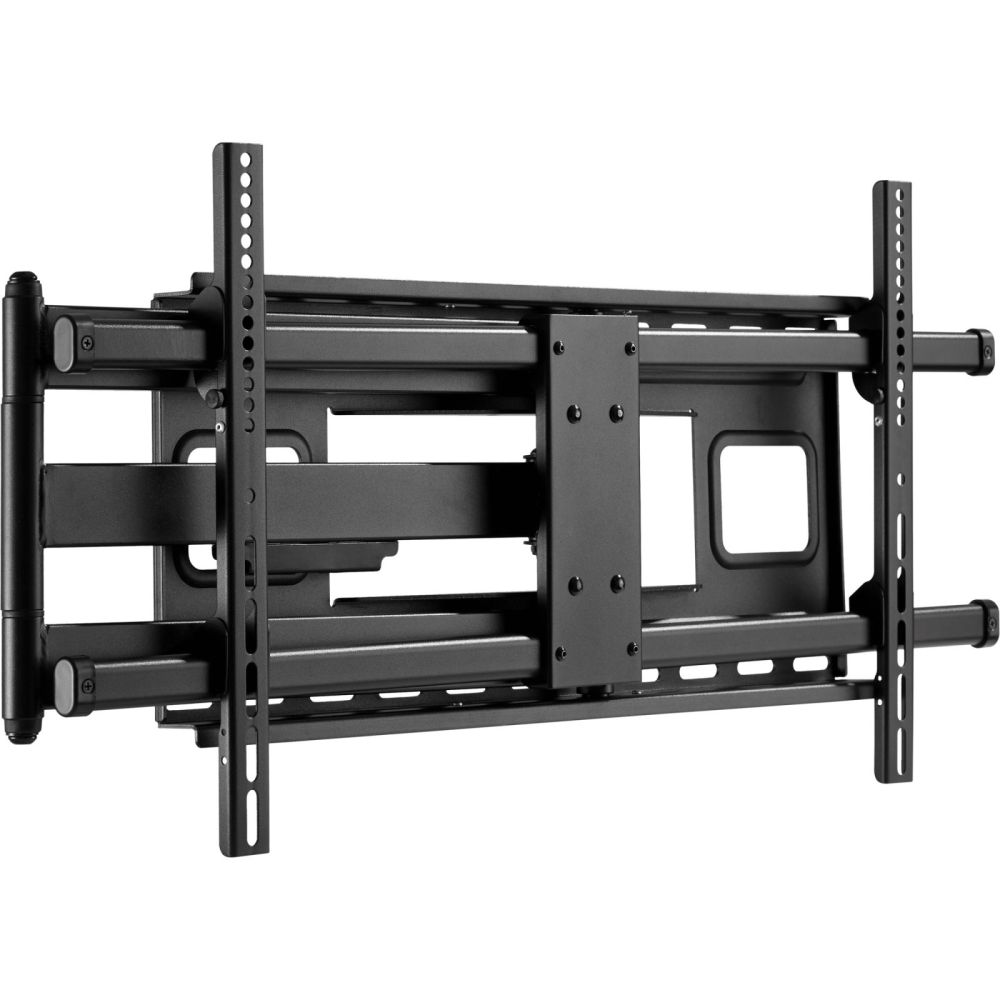

Monitor arm	Yes (flat to the wall foldable)
Length packaging	0.942m
Suitable for	Displays from 109cm (43") to 203cm (80")
Tiltable	+5 / -15°
Type	Wall Bracket for displays
Safety lock system
GS tested
Cable management
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	885 mm
Height	430 mm

---
