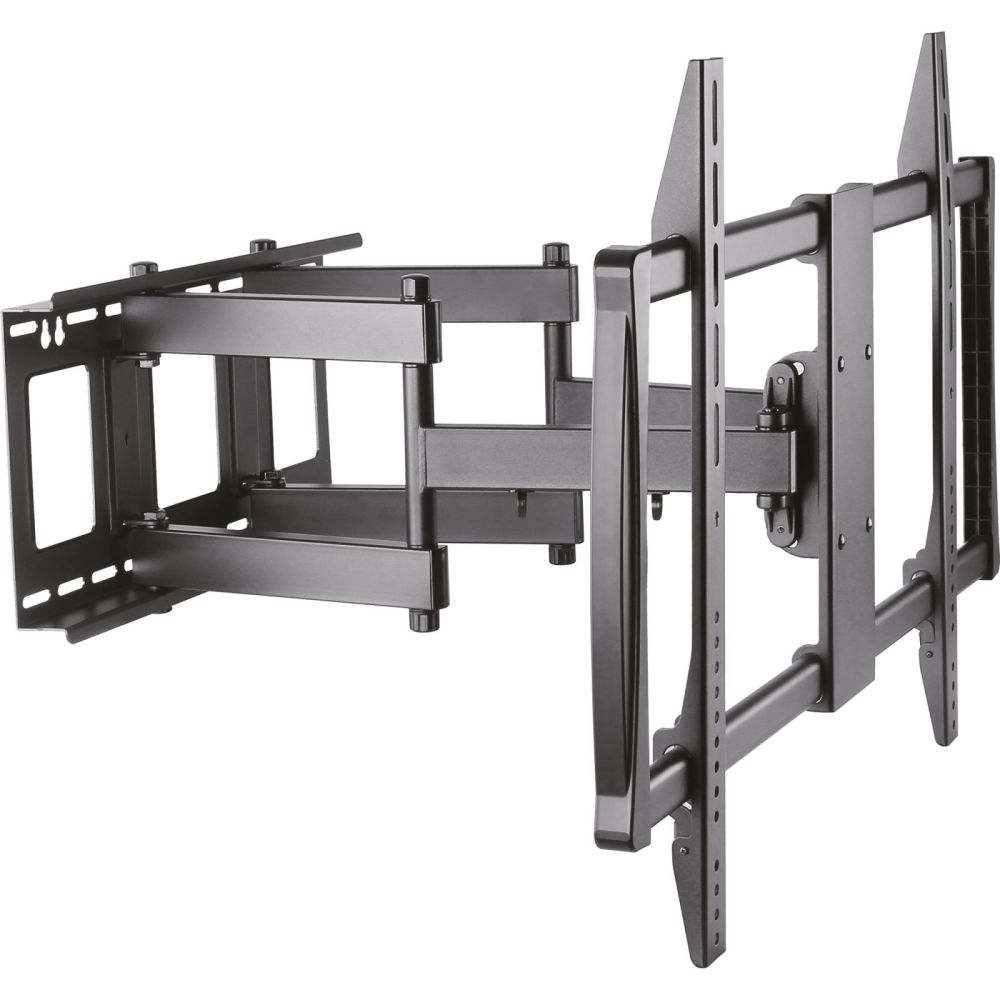

InLine® TV Wall bracket, for TFT/LCD/LED/Plasma 152-254cm (60-254 cm ( 100 inch )) max. 80kg content_copy

Flexible wall mounting for large screensPrecise alignment without effort: Tilt, swivel, and level for optimal visibility in any environment.
Variable distance to the wall: From approx. 70-625 mm for space-saving or extendable mounting.
Wide device and VESA compatibility: Suitable for 152-254 cm (60-254 cm ( 100 inch )) and common VESA hole patterns.
Secure support for heavy displays: Reliably supports approx. 80 kg.
The wall mount for large flat-panel displays combines a wide adjustment range with solid stability. Thanks to tilt, swivel, and leveling functions, you align the display precisely. The variable wall distance allows flush mounting or convenient extension to reach ports and reduce reflections.
In professional IT environments, it proves itself in on-site installations and service deployments as well as in existing infrastructures of companies and public institutions - for example in meeting and training rooms, reception areas, or sales floors where stable and flexible positioning is required.

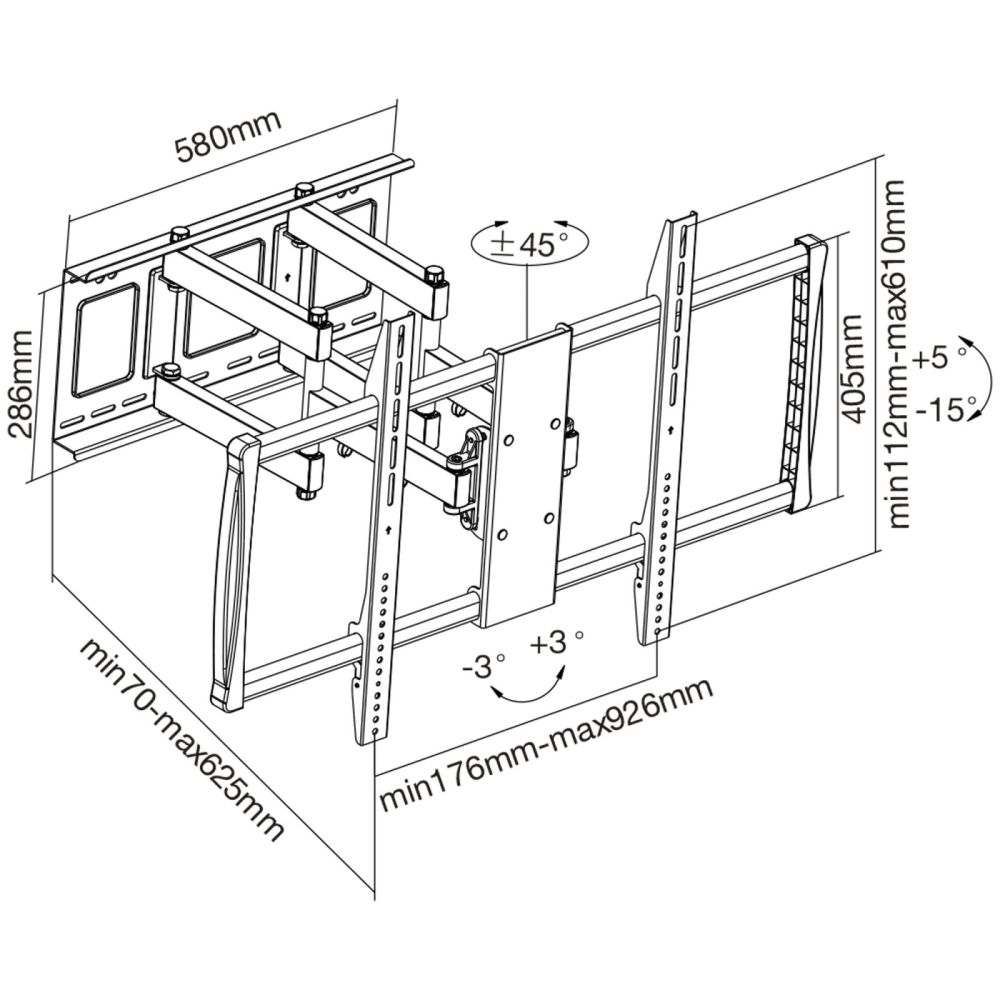

Screen diagonal: 152-254 cm (60-254 cm ( 100 inch ))
VESA hole patterns: 200x200 mm, 400x200 mm, 300x300 mm, 400x400 mm, 600x400 mm, 800x400 mm, 800x600 mm, 600x900 mm
Tilt: -15° to +5°
Swivel range: -45° to +45° (depending on the display)
Leveling adjustment: -3° to +3°
Wall distance: approx. 70-625 mm
Max. load capacity: approx. 80 kg (176 lbs)
Color: Black

Design
Product colour	Black
Housing material	Metal
Certification
Ergonomics
Tilt angle range	-15 - 15°
Swivel angle	90°
Swivel angle range	-45 - 45°
Distance to the wall (max)	62.5 cm
Distance to the wall (min)	7 cm
Tilt adjustment
Cable management
Mounting
Maximum weight capacity	80 kg
Minimum screen size	152.4 cm (60")
Number of displays supported	1
Maximum screen size	152.4 cm (60")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 900 mm
Panel mounting interface	200 x 200,300 x 300,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600
Mounting type	Wall
Packaging content
Screws included
Mounting kit
Packaging data
Package width	95 mm
Package depth	1180 mm
Package height	610 mm
Package volume	68400 cm³
Package weight	17.1 kg
Technical data
VESA	200x200 / 300x300 / 400x200 / 400x400 / 600x400 / 600x900 / 800x400 / 800x600mm
Width packaging	0.095m
Type	Wall Bracket for displays
Load (max.)	80kg
Height packaging	0.610m
Packaging volume	0.0684m³
Suitable for	Displays from 152cm (60") to 254cm (100")
Wall distance	7 - 62.5cm
Weight	17.140kg
Tiltable	+/-15°
Rotatable	+/-45°
Length packaging	1.180m
Monitor arm
GS tested
Safety lock system
Cable management

---
