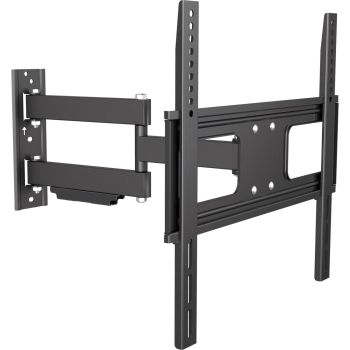

InLine® Wall Bracket for Display 81-140cm 32-139,7 cm ( 55 inch ) max. 50kg content_copy

Optimal viewing and space savings through flexible display wall mountingFlexible alignment: Tilt -20 ° to +10 ° and swivel up to +/-90 ° (depending on the display) for optimal viewing.
Straight screen: Level adjustment +/-3 ° precisely corrects small deviations.
Easy access to ports: Wall distance 60-473 mm simplifies cable routing and maintenance.
Wide VESA compatibility: Suitable for 100x200 mm, 200x200 mm, 400x200 mm, 300x300 mm, 400x400 mm.
High load capacity: Up to 50 kg for 32-139,7 cm ( 55 inch ) displays.
This wall mount secures your screen to the wall with flexibility. You align the display comfortably and, thanks to the variable wall distance, reach ports and cables without disassembly. The common VESA hole patterns enable a precise fit, while the robust construction reliably supports larger and heavier devices.
In conference and training rooms, foyers, or in digital signage installations, the flexible adjustability proves itself in daily use. It also facilitates on-site installations and later service deployments in professional IT environments and existing infrastructures of companies and public institutions.
Screen diagonal: 32-139,7 cm ( 55 inch )
VESA: 100x200 mm, 200x200 mm, 400x200 mm, 300x300 mm, 400x400 mm
Tilt: -20 ° to +10 °
Swivel range: +/-90 ° (depending on the display)
Level adjustment: +/-3 °
Wall distance: 60-473 mm
Max. load capacity: 50 kg

Design
Product colour	Black
Certification
Ergonomics
Tilt angle range	-10 - 20°
Swivel angle range	-90 - 90°
Distance to the wall (max)	47.3 cm
Distance to the wall (min)	6 cm
Tilt adjustment
Cable management
Mounting
Maximum weight capacity	50 kg
Minimum screen size	81.3 cm (32")
Number of displays supported	1
Maximum screen size	81.3 cm (32")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400
Mounting type	Wall
Packaging data
Package width	280 mm
Package depth	530 mm
Package height	68 mm
Package volume	10100 cm³
Package weight	4.33 kg
Technical data
Wall distance	6 - 47.3cm
Net weight	4.328kg
Length packaging	0.530m
Load (max.)	50kg
VESA	200x200 / 300x300 / 400x200 / 400x400mm
Weight	4.328kg
Packaging volume	0.0101m³
Rotatable	+/-90°
Type	Wall Bracket for displays
Width packaging	0.280m
Suitable for	Displays from 81cm (32") to 140cm (55")
Height packaging	0.068m
Tiltable	+10 / -20°
Safety lock system
Cable management
Monitor arm
GS tested
Weight & dimensions
Weight	4.33 kg

---
