InLine® Desk Bracket for TV / LED / TFT Display up to 81cm 32" max. 9kg black content_copy

More space and ergonomic monitor alignment at the deskFlexible positioning: Tiltable +/- 45° and 360° rotatable for the optimal viewing angle.
Ergonomic height: Height adjustment up to approx. 40 cm for comfortable eye-level alignment.

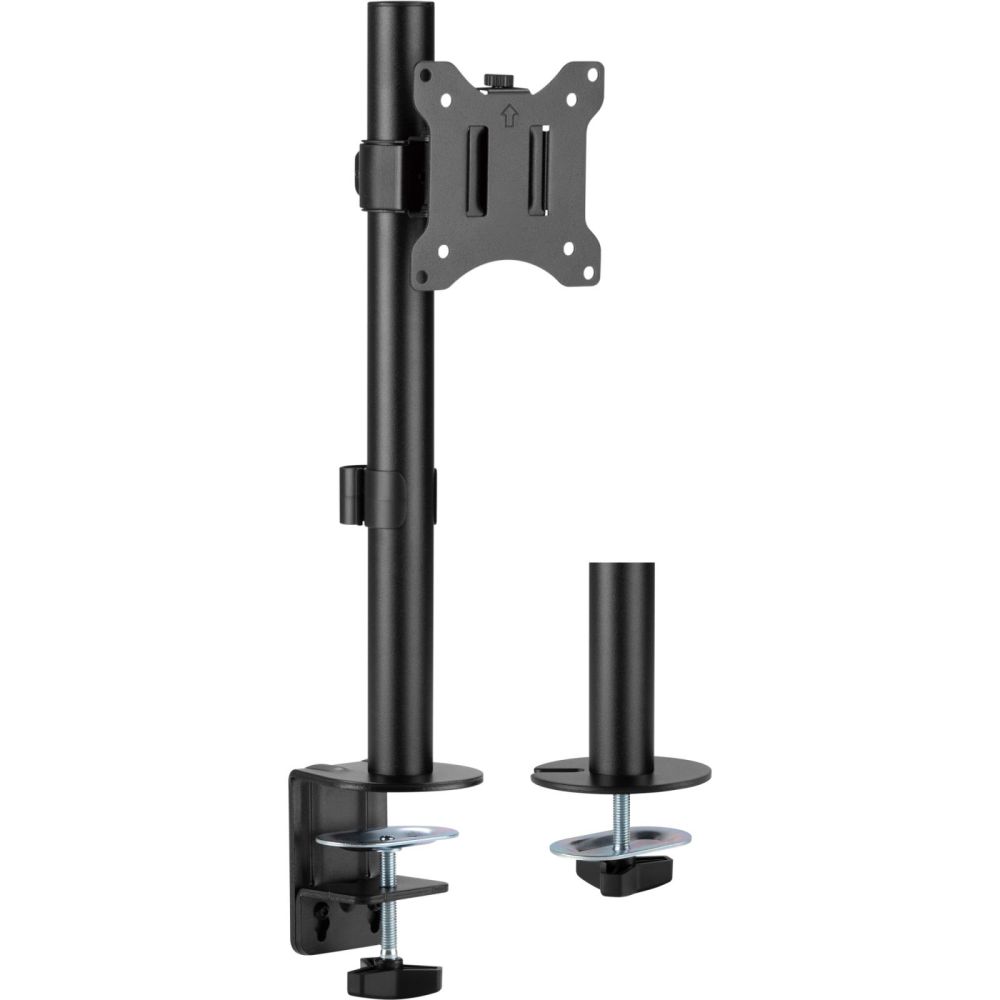

Space-saving mounting: Screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm for different tabletops.
Wide compatibility: VESA 75x75 and 100x100 mm, suitable for displays 43-81 cm (17-32 inches).
Stable load capacity: Up to 9 kg for common flat-panel displays.
This monitor desk mount creates space on the desk and enables precise alignment of the screen. With tilt, rotation and height adjustment up to approx. 40 cm, you can quickly bring the display into the right position. The VESA mount simplifies mounting, and with a screw clamp or through-desk mounting the screen sits securely on tabletops of different thicknesses. The included mounting kit with M4/M5 screws and hex keys supports quick setup.
It proves itself in professional IT environments, in on-site setups and service deployments as well as in existing workstations of companies and public institutions where flexible and stable screen mounting is required.

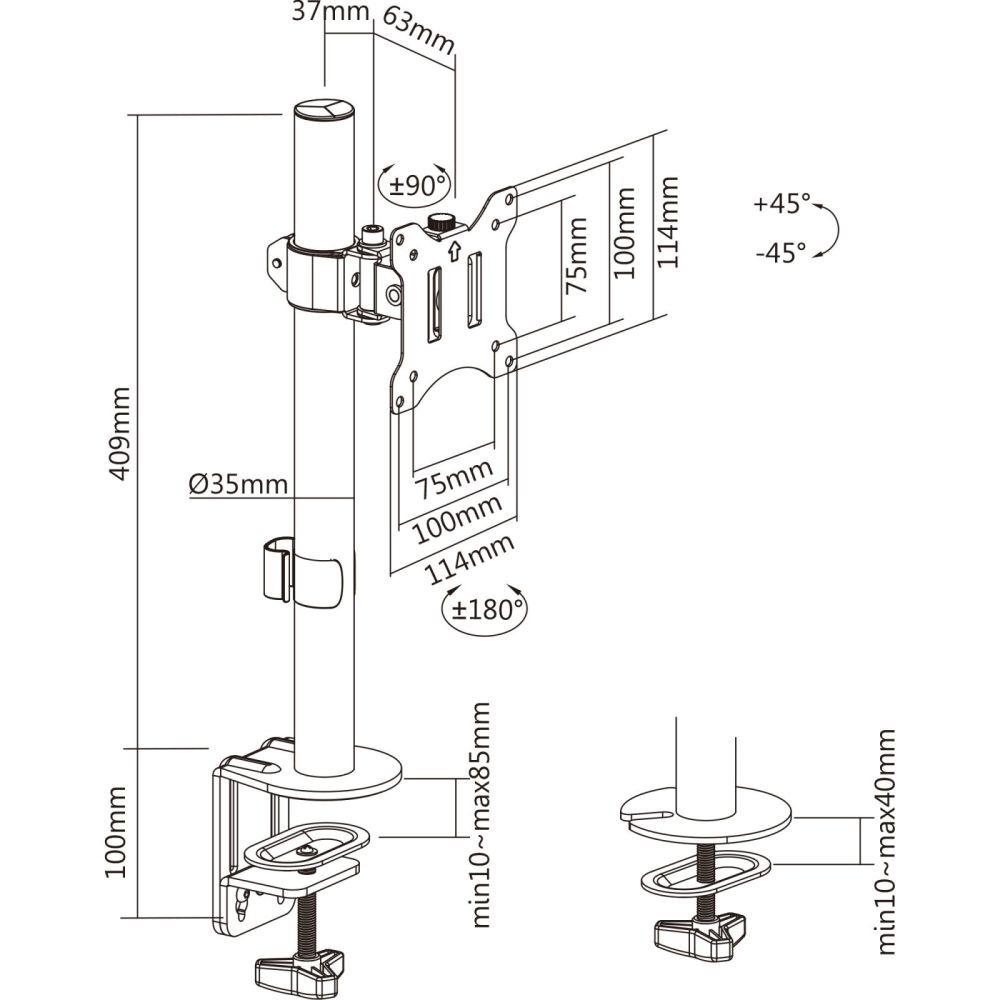

Display size: 43-81 cm (17-32 inches)
Load capacity: up to 9 kg
Tilt: +/- 45°
Rotation: 360°
Height adjustment: up to approx. 40 cm
VESA: 75x75, 100x100 mm
Mounting: screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm
Color: Black
Scope of delivery: desk mount, screw set M4/M5, 2x hex keys, manual

Design
Product colour	Black
Orientation	Landscape/Portrait
Ergonomics
Height adjustment range	0 - 409 mm
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment
Tilt adjustment
Rotating
Logistics data
Country of origin	Taiwan
Mounting
Maximum weight capacity	9 kg
Minimum screen size	43.2 cm (17")
Number of displays supported	1
Maximum weight capacity (per display)	9 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Clamp mount desk thickness (max)	8.5 cm
Grommet mount desk thickness (max)	4 cm
Other features
Dimensions (WxDxH)	90 x 500 x 90 mm
Compliance certificates	TÜV mark
Packaging content
Clamp included
VESA mount included
Mounting kit
Manual
Packaging data
Package width	180 mm
Package depth	460 mm
Package height	140 mm
Package volume	2000 cm³
Package weight	2.56 kg
Technical data
Article length	50.00cm
Number of monitors	1
Load (max.)	9kg
Length packaging	0.460m
Article width	9.00cm
Tiltable	+/-45°
Weight	2.562kg
Suitable for	Displays from 43cm (17") to 81cm (32")
VESA	75x75 / 100x100mm
Width packaging	0.180m
Colour	Black
Packaging volume	0.0020m³
Net weight	2.247kg
Height packaging	0.140m
Article height	9.00cm
Gas spring
Rotatable
Hinged/swivel arm
Adjustable in height
Weight & dimensions
Width	90 mm
Depth	500 mm
Height	90 mm
Weight	2.25 kg

---
