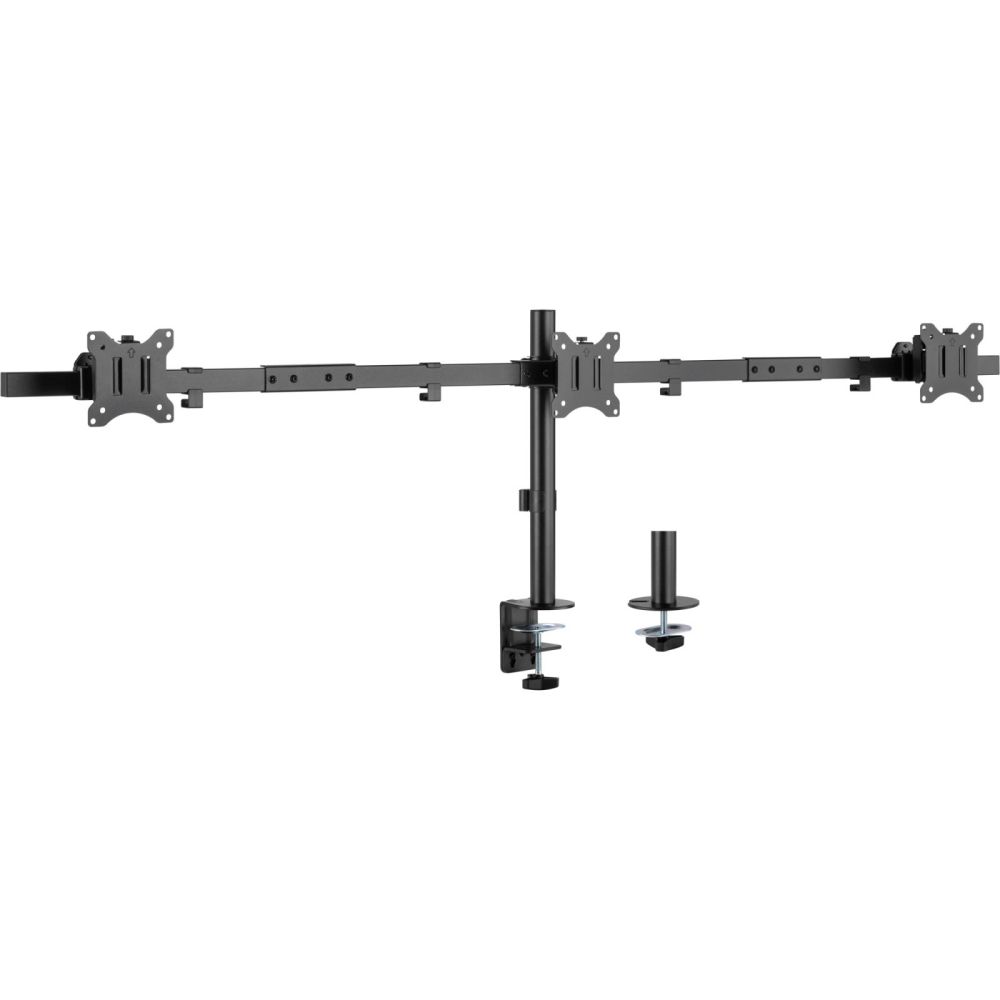

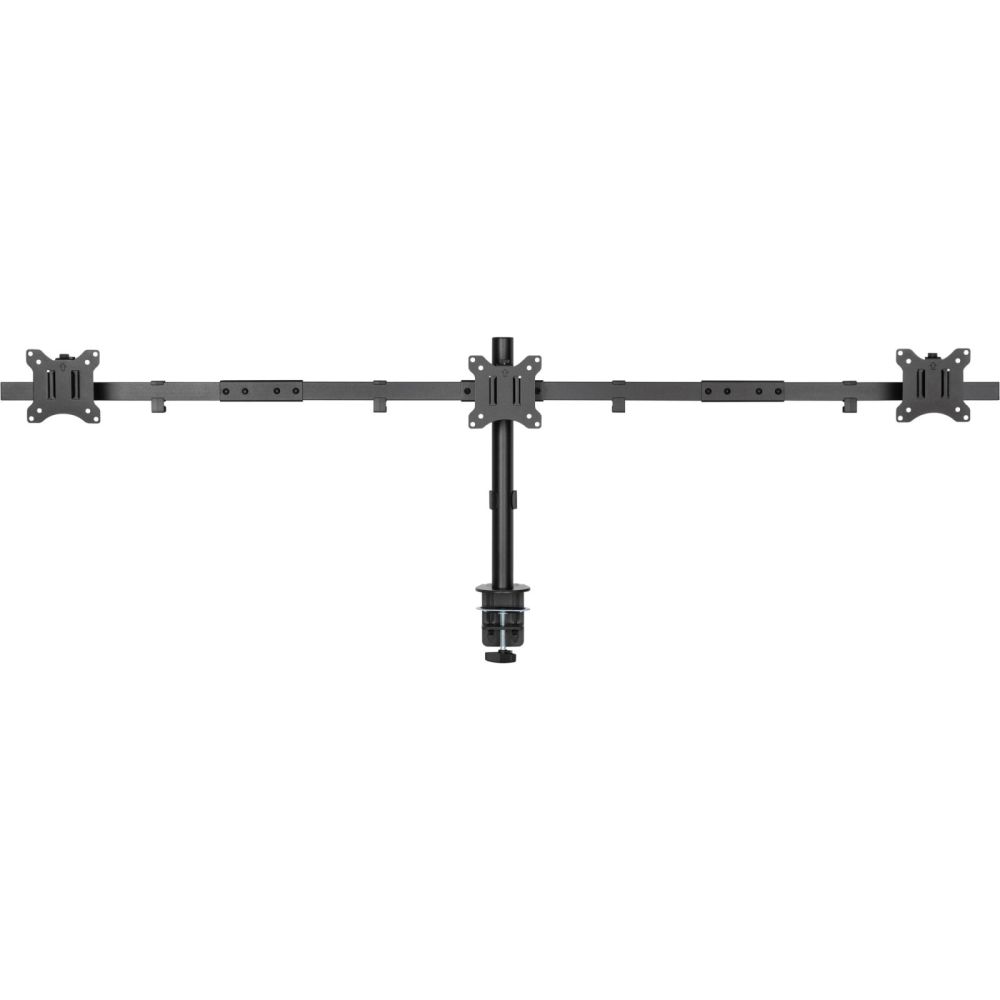

InLine® Desk Bracket for 3x TV / LED / TFT Display up to 81cm 32" max. 7kg
|
40,07 EUR |
|
|
( 47,68 EUR incl. VAT ) ≈ £33.54 | ≈ $44.84 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22194312 |
| Mfg Part No: | 23108G |
| UPC/EAN: | 4043718333868 |
| Weight: | 6.337 kg |
Product information for Inline 23108G:

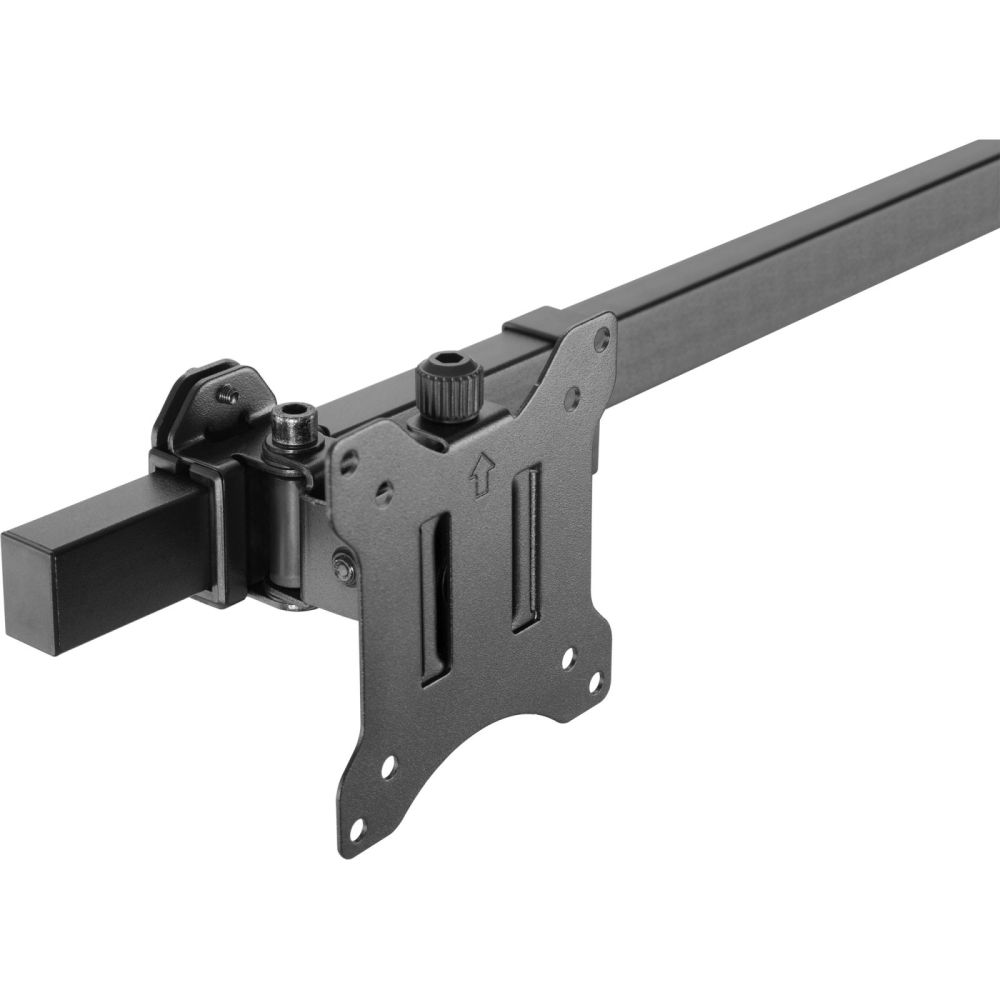

Ergonomic 3-display workstation with variable orientationIndividual screen positioning: Tilt +/-45° and 360° rotation for flexible orientation.
Quick working height adjustment: Height-adjustable up to approx. 40 cm.
Stable mounting on various desks: Screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm.
Combine three monitors clearly: Supports 3x 7 kg for 43-81 cm screen diagonals.
Widely used compatibility: VESA 75x75 and 100x100 mm.

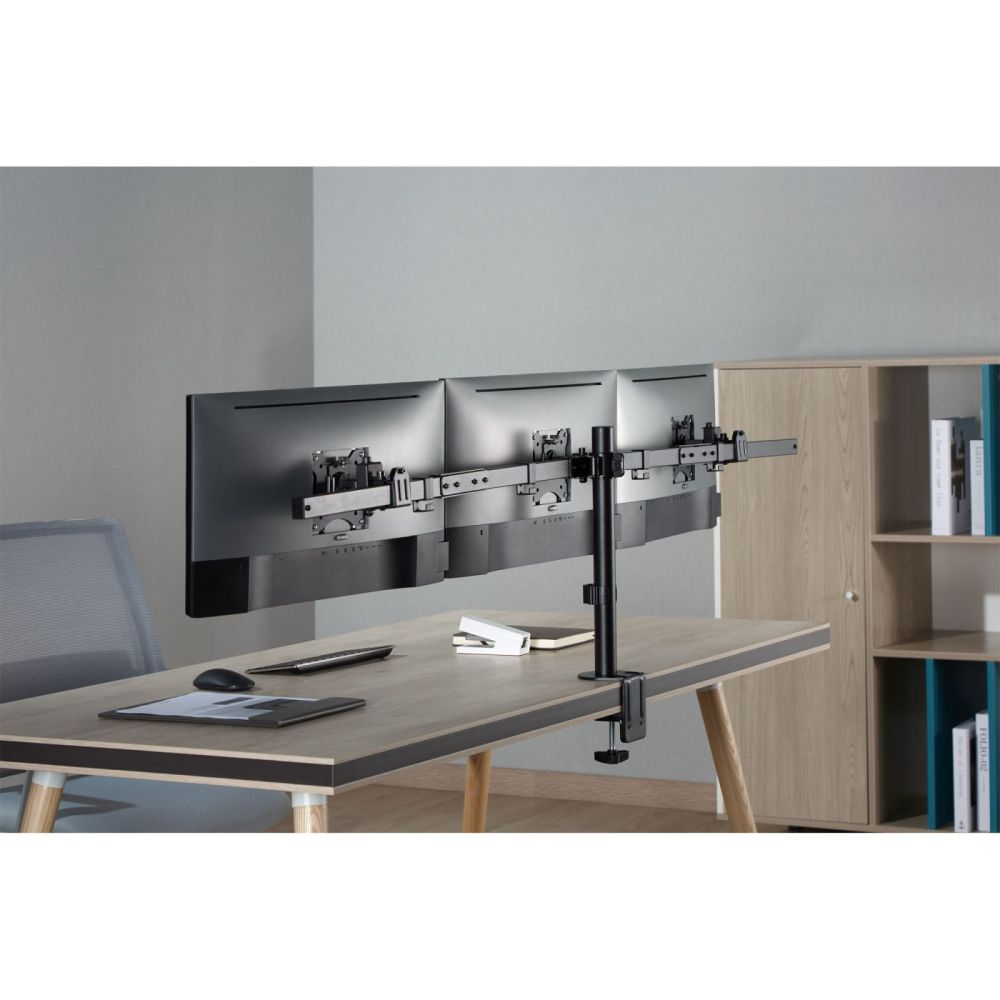

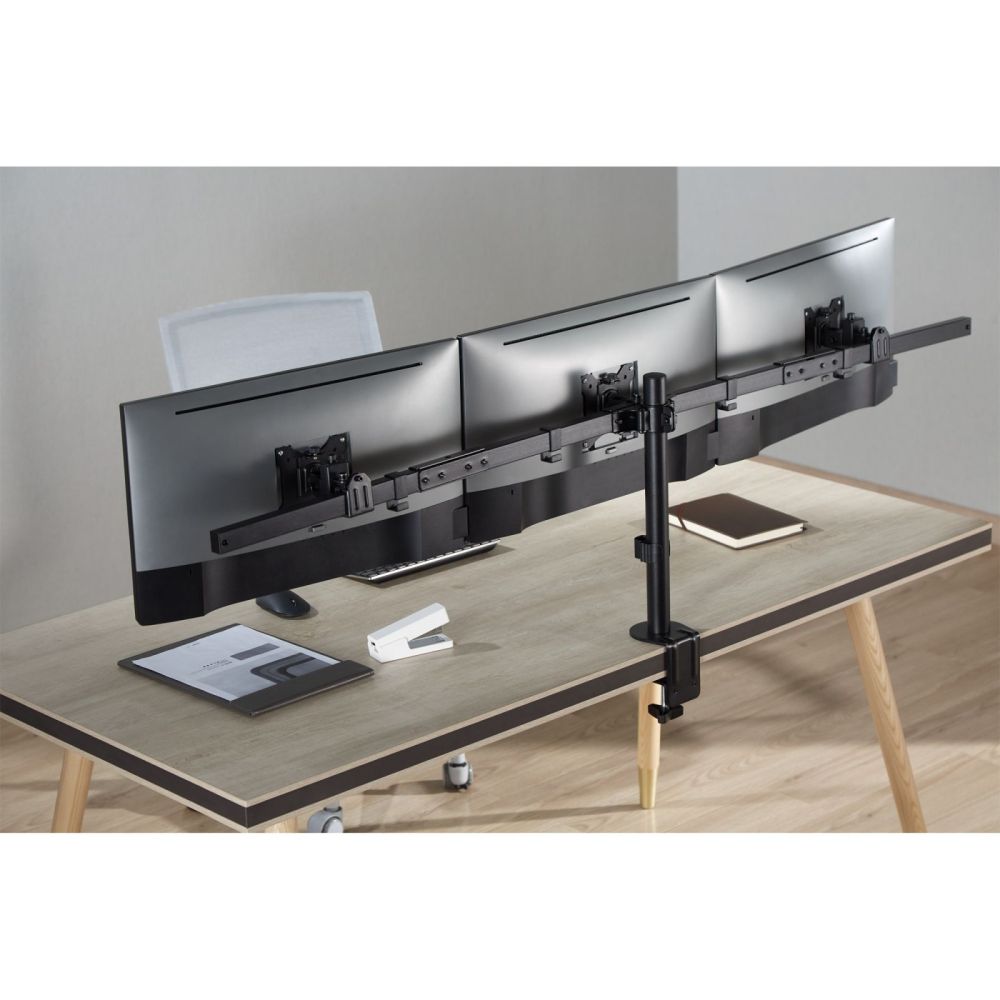

The desk mount combines three flat-panel displays into an ergonomic workstation. The displays can be aligned as needed, tilted by +/-45° and rotated by 360°. The height adjustment up to approx. 40 cm supports a relaxed head and body posture, while the optional clamp or through-desk mounting provides a secure hold.
In professional IT environments and on-site installations, the VESA hole patterns 75x75 and 100x100 mm facilitate integration into existing infrastructures. The flexible mounting options adapt to different table tops in companies and public institutions and support productive multi-screen workstations.
Number of displays: 3
Screen diagonal: 43 cm (17") to 81 cm (32")
VESA: 75x75 mm, 100x100 mm
Tilt: +/-45°
Rotation: 360°
Height adjustment: up to approx. 40 cm
Mounting: screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm
Max. load capacity: 3x 7 kg

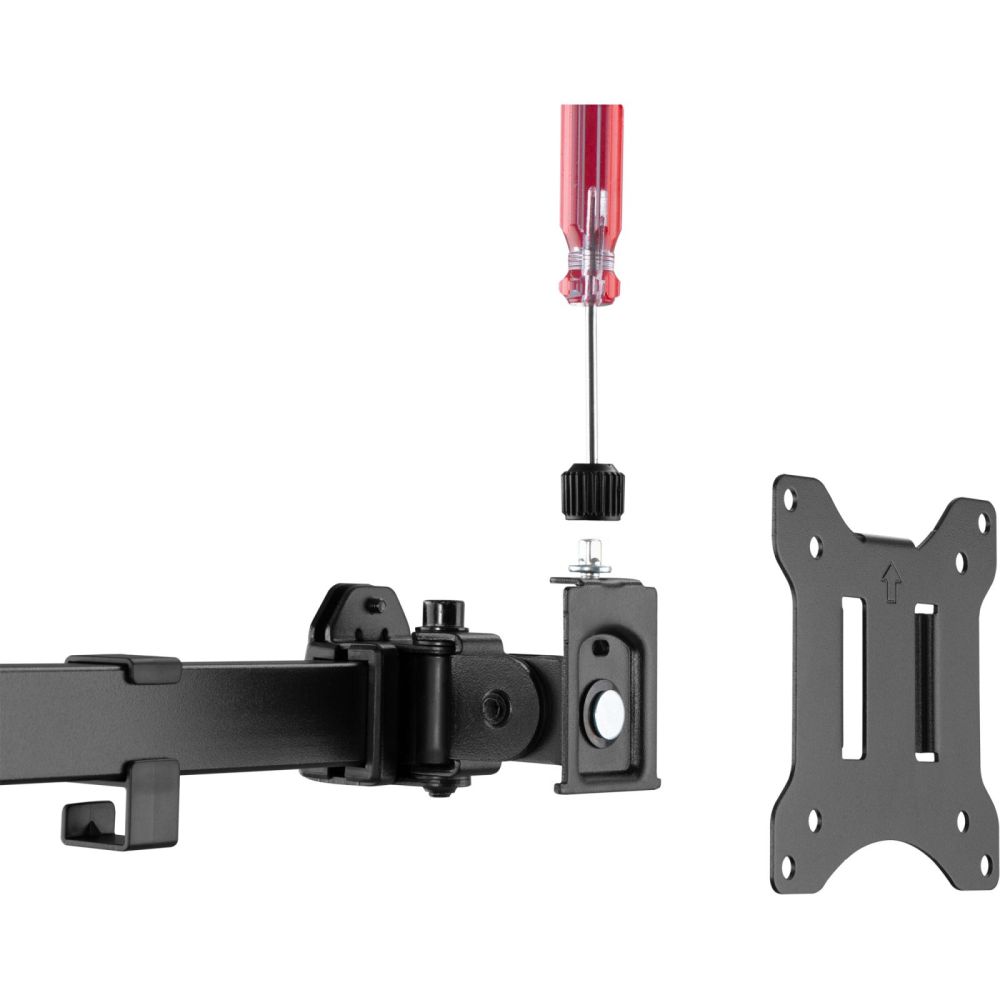

Scope of delivery: desk mount with screw clamp, screw set M4/M5, 2x hex keys, assembly instructions
Quick working height adjustment: Height-adjustable up to approx. 40 cm.
Stable mounting on various desks: Screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm.
Combine three monitors clearly: Supports 3x 7 kg for 43-81 cm screen diagonals.
Widely used compatibility: VESA 75x75 and 100x100 mm.
The desk mount combines three flat-panel displays into an ergonomic workstation. The displays can be aligned as needed, tilted by +/-45° and rotated by 360°. The height adjustment up to approx. 40 cm supports a relaxed head and body posture, while the optional clamp or through-desk mounting provides a secure hold.
In professional IT environments and on-site installations, the VESA hole patterns 75x75 and 100x100 mm facilitate integration into existing infrastructures. The flexible mounting options adapt to different table tops in companies and public institutions and support productive multi-screen workstations.
Number of displays: 3
Screen diagonal: 43 cm (17") to 81 cm (32")
VESA: 75x75 mm, 100x100 mm
Tilt: +/-45°
Rotation: 360°
Height adjustment: up to approx. 40 cm
Mounting: screw clamp up to approx. 85 mm or through-desk mounting up to approx. 40 mm
Max. load capacity: 3x 7 kg
Scope of delivery: desk mount with screw clamp, screw set M4/M5, 2x hex keys, assembly instructions
| Design | |
| Product colour | Black |
| Orientation | Landscape/Portrait |
| Ergonomics | |

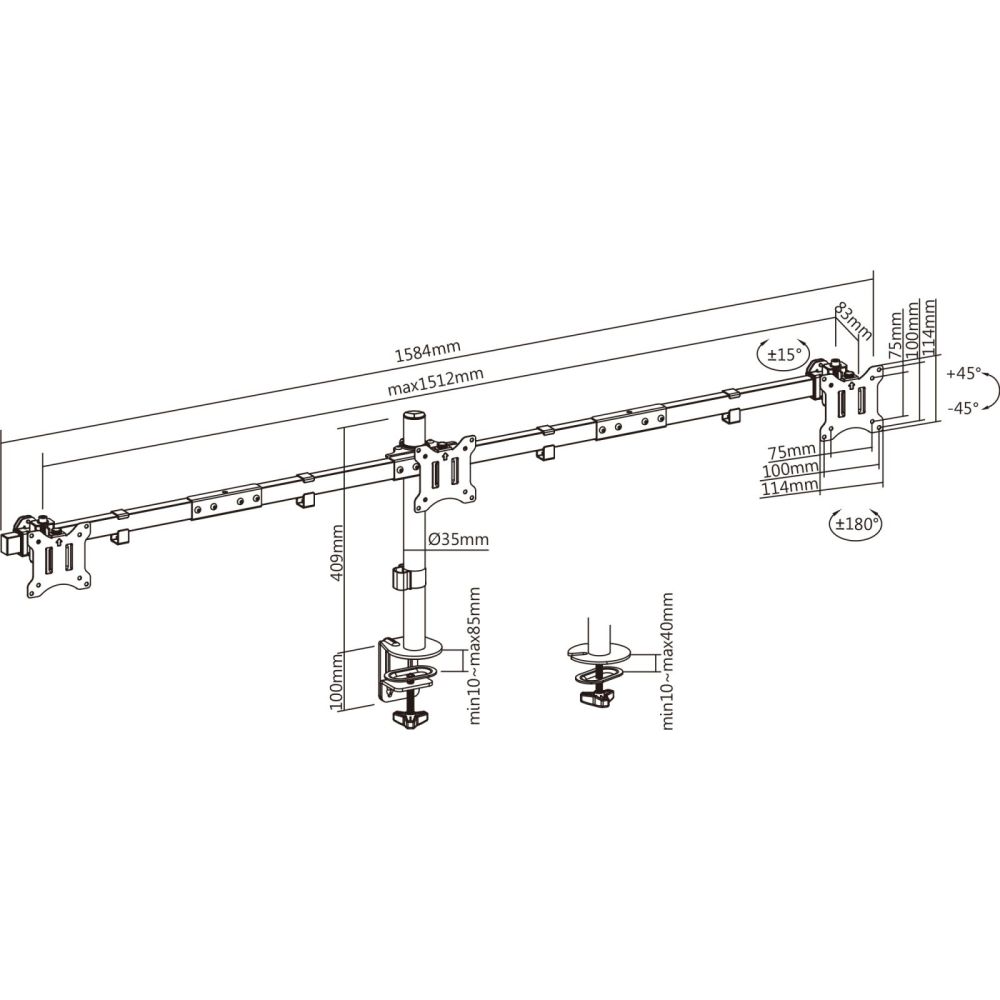

| Height adjustment range | 0 - 409 mm |
| Tilt angle range | -45 - 45° |
| Angle of rotation | 360° |
| Height adjustment | |
| Tilt adjustment | |
| Rotating | |
| Logistics data | |
| Country of origin | Taiwan |
| Mounting | |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 3 |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Clamp mount desk thickness (max) | 8.5 cm |
| Grommet mount desk thickness (max) | 4 cm |
| Other features | |
| Dimensions (WxDxH) | 1000 x 450 x 100 mm |
| Compliance certificates | TÜV mark |
| Packaging content | |
| Clamp included | |
| VESA mount included | |
| Mounting kit | |
| Manual | |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 450 mm |
| Package height | 130 mm |
| Package volume | 3200 cm³ |
| Package weight | 6.34 kg |
| Technical data | |
| VESA | 75x75 / 100x100mm |
| Weight | 6.337kg |
| Net weight | 5.950kg |
| Packaging volume | 0.0032m³ |
| Width packaging | 0.230m |
| Height packaging | 0.130m |
| Length packaging | 0.450m |
| Article width | 100.00cm |
| Number of monitors | 3 |
| Colour | Black |
| Tiltable | +/-45° |
| Suitable for | Displays from 43cm (17") to 81cm (32") |
| Article length | 45.00cm |
| Load (max.) | 7kg |
| Article height | 10.00cm |
| Hinged/swivel arm | |
| Rotatable | |
| Gas spring | |
| Adjustable in height | |
| Weight & dimensions | |
| Width | 1000 mm |
| Depth | 450 mm |
| Height | 100 mm |
| Weight | 5.95 kg |
