InLine® Desk Bracket for 2x TV / LED / TFT Display up to 81cm 32", max. 9kg content_copy

Ergonomic dual display mount with flexible alignmentMount two monitors to save space: For displays from 43 cm (17") to 81 cm (32") with up to 9 kg per display.
Ergonomics set quickly: Tilt +/-45° and 360° rotation for optimal viewing.

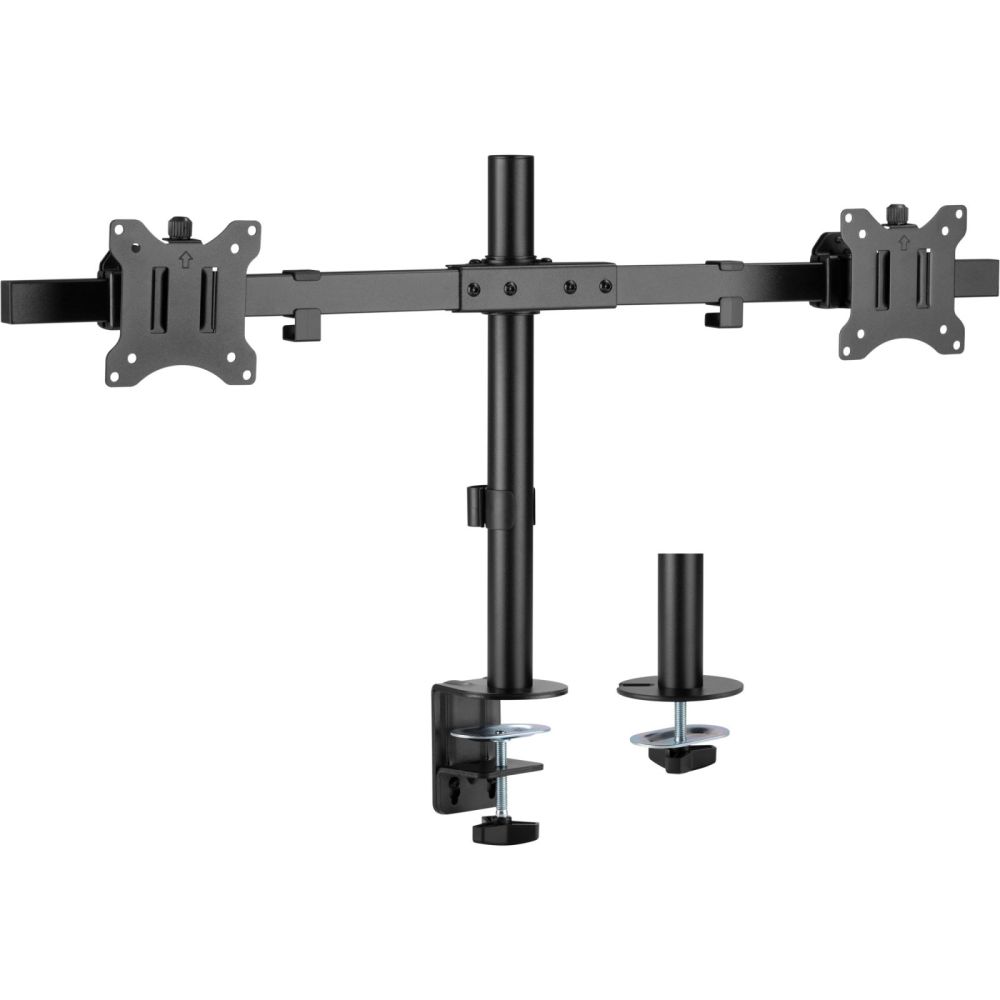

Flexible desk mounting: Screw clamp for desk tops up to approx. 85 mm or through-desk mounting up to approx. 40 mm.

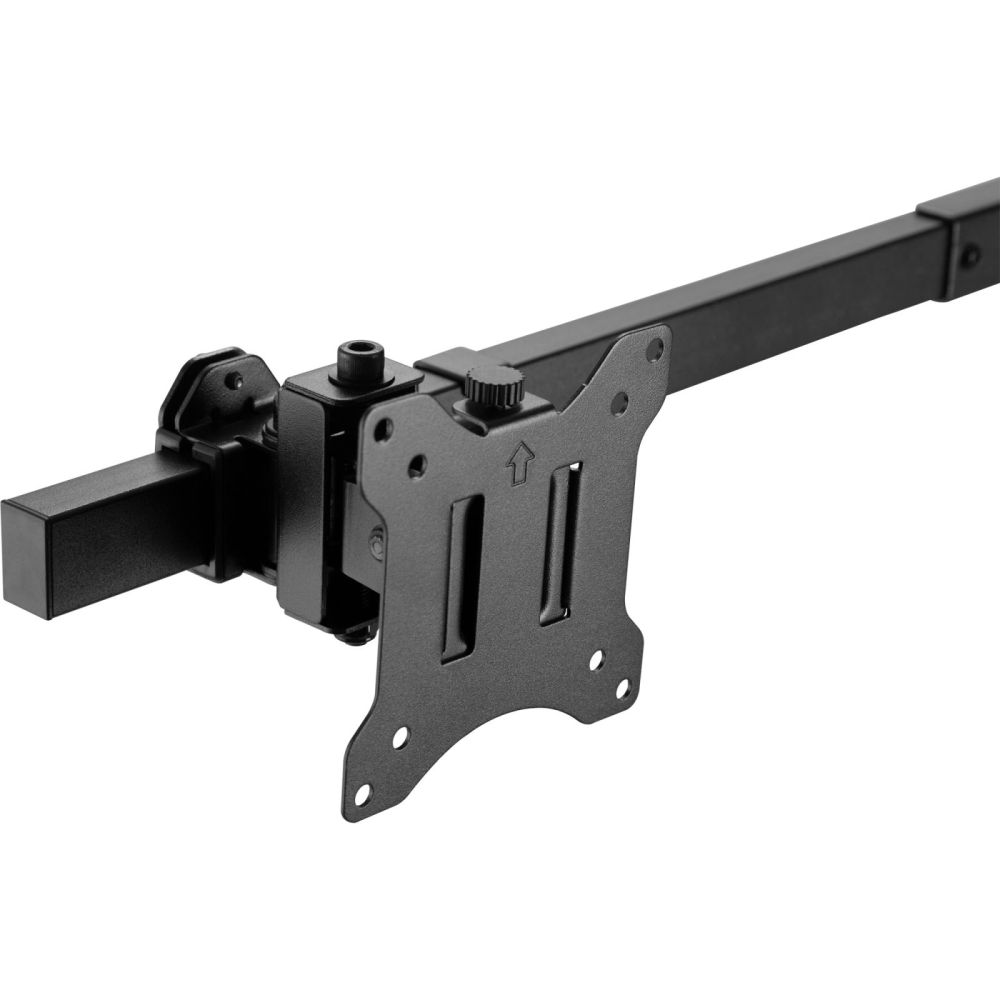

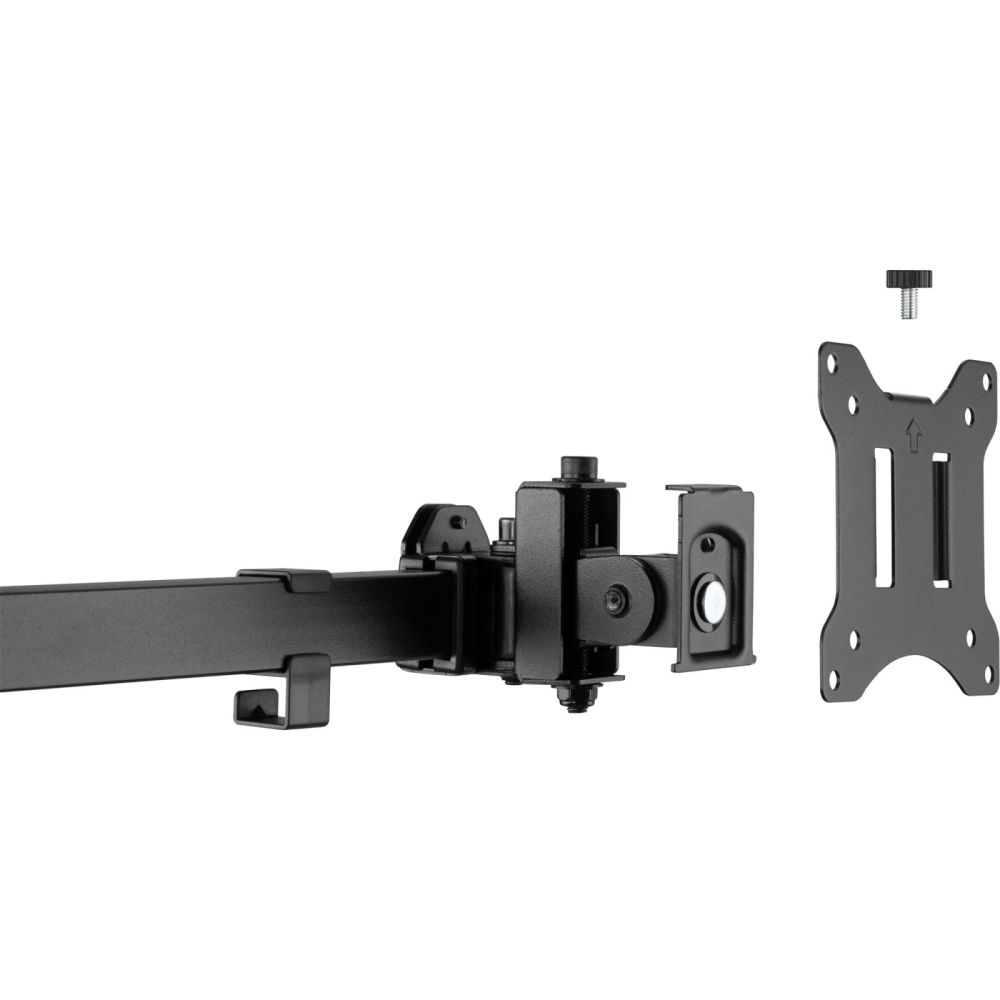

Stable VESA mount: 75x75 and 100x100 mm for a secure fit of common monitors.
Easily adjust height: Height adjustable up to approx. 40 cm for an ergonomic working posture.

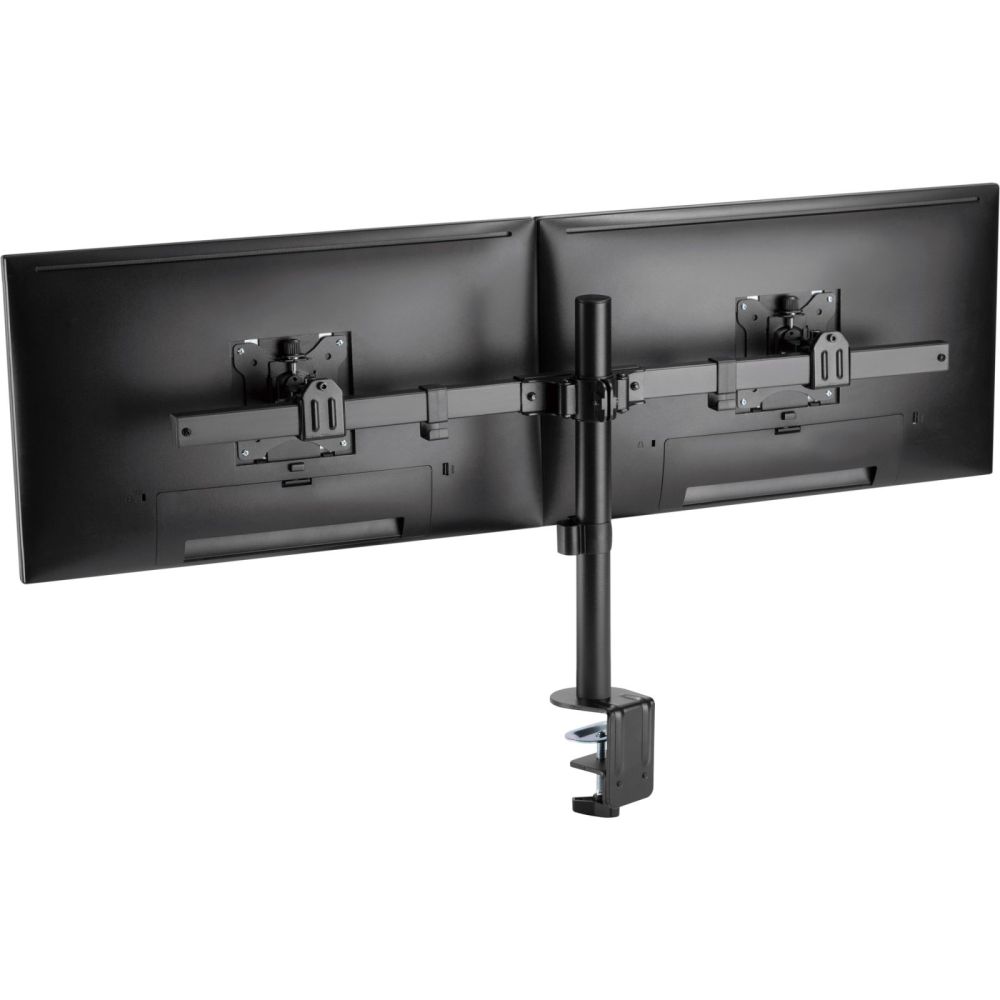

This desk mount accommodates two flat-panel displays safely and flexibly at the workstation. The height can be adjusted, which supports an ergonomic seating and viewing posture. Mounting is possible either at the desk edge or through the desk top and creates additional free space.
In professional IT environments and existing infrastructures, the dual mounting provides order and efficient use of the available space. During on-site deployments and service calls, the variable mounting facilitates a swift, clean setup in companies and public institutions.

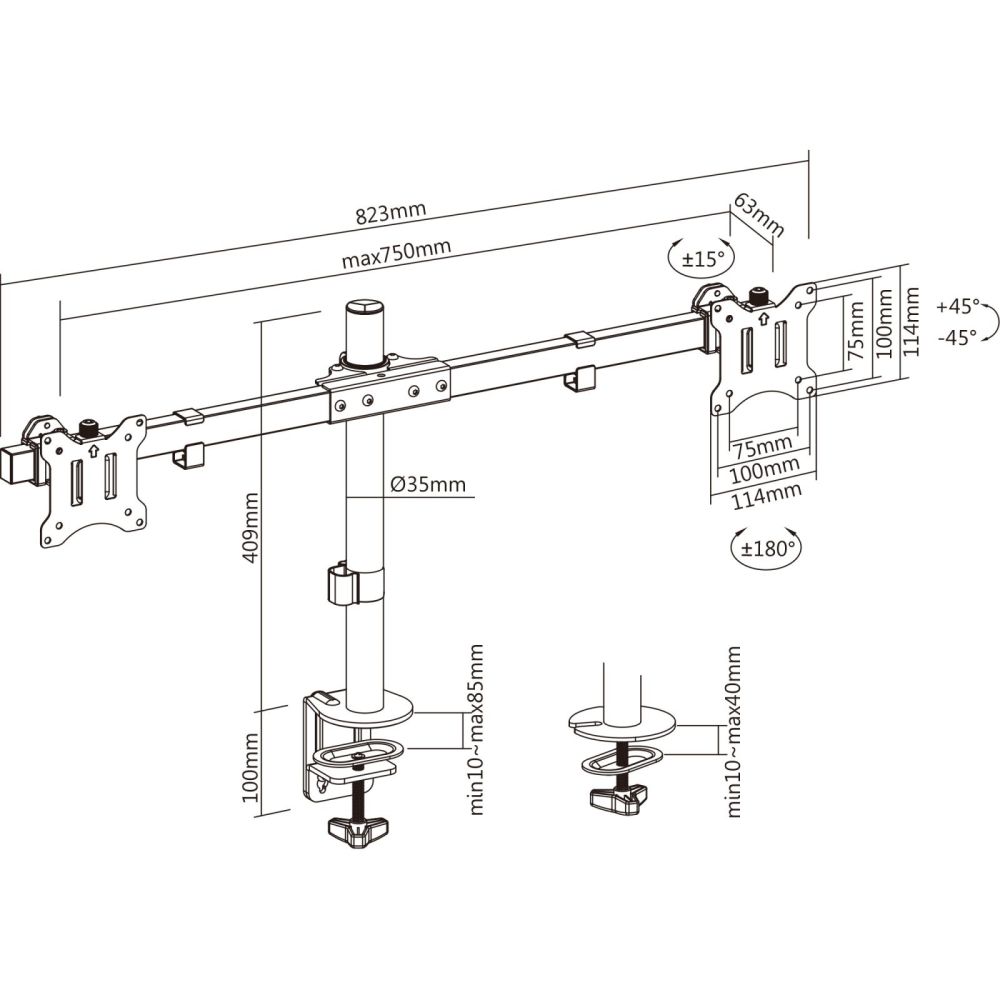

Number of displays: 2
Screen size: 43 cm (17") to 81 cm (32")
Load capacity: max. 2x 9 kg
Tilt: +/-45°
Rotation: 360°
VESA: 75x75, 100x100 mm
Mounting: Screw clamp on desk top or through-desk mounting
Desk top thickness: Clamp up to approx. 85 mm, through-desk mounting up to approx. 40 mm
Height adjustment: up to approx. 40 cm
Scope of delivery: Desk mount with screw clamp, screw set (M4/M5), 2x hex keys, assembly instructions

Design
Product colour	Black
Orientation	Landscape/Portrait
Ergonomics
Height adjustment range	0 - 400 mm
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment
Tilt adjustment
Rotating
Logistics data
Country of origin	Taiwan
Mounting
Minimum screen size	43.2 cm (17")
Number of displays supported	2
Maximum weight capacity (per display)	9 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Clamp mount desk thickness (max)	8.5 cm
Grommet mount desk thickness (max)	4 cm
Other features
Dimensions (WxDxH)	800 x 400 x 100 mm
Compliance certificates	TÜV mark
Packaging content
Clamp included
VESA mount included
Mounting kit
Manual
Packaging data
Package width	210 mm
Package depth	450 mm
Package height	140 mm
Package volume	3000 cm³
Package weight	4.36 kg
Technical data
Number of monitors	2
Colour	Black
Tiltable	+/-45°
Weight	4.355kg
Packaging volume	0.0030m³
Article width	80.00cm
Suitable for	Displays from 43cm (17") to 81cm (32")
Height packaging	0.140m
Width packaging	0.210m
Net weight	4.050kg
Article length	40.00cm
Load (max.)	9kg
Length packaging	0.450m
Article height	10.00cm
VESA	75x75 / 100x100mm
Hinged/swivel arm
Gas spring
Adjustable in height
Rotatable
Weight & dimensions
Width	800 mm
Depth	400 mm
Height	100 mm
Weight	4.05 kg

---
