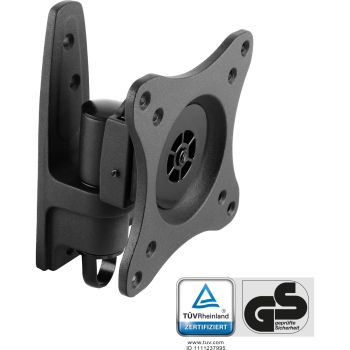

InLine® wall mount, for monitors up to 69cm (27"), max. 15kg content_copy

Flexibly positionable: The swivelling and tilting articulated arms allow your monitor to be optimally aligned for maximum comfort.
360° rotatable VESA plate: For maximum viewing angles and an even more intense viewing experience, the screen can be fully rotated.
Securely fixable: The integrated anti-theft device reliably protects against unwanted removal – ideal for public spaces.
Integrated cable hook: The holder offers an easy way to tidy up cables – for more organisation in the screen area.
Easy and quick installation: The mount is attached to the wall with just three screws, the VESA plate is designed to slide in.
Experience maximum flexibility when mounting your monitor with the InLine wall mount. Suitable for screens from 13 to 27 inches and a load capacity of up to 15 kg, the monitor can be optimally aligned thanks to swivelling arms and tiltable joints. The 360° rotatable VESA plate offers you the perfect viewing angle at all times – whether in the home office, when gaming or in the living area.
For additional security, there is an integrated anti-theft device that can be used with an optional padlock. The slide-in VESA plate makes mounting and removing the monitor much easier - a major advantage for temporary set-ups or installations.
An integrated hook ensures that connection cables can be neatly hooked in. Compatible with VESA standards 75x75 and 100x100, the bracket can be mounted quickly and securely on the wall with just three screws. An ideal solution for anyone who wants to combine functionality, design and safety.
VESA compatibility: 75x75, 100x100
Wall distance: 88 mm
Tilt range: +15° to -15°
Pivot range: +60° to -60°
Screen rotation: +180° to -180°
Suitable for screen sizes: 33 cm ( 13 inch ) to 68,6 cm ( 27 inch )
Max. Load capacity: 15 kg
Material: aluminium
Fastening: 3 screws
Theft protection: lock optional
Cable management: integrated
Insertable VESA plate: yes

Design
Product colour	Black
Housing material	Aluminium
Certification
Ergonomics
Tilt angle range	-15 - 15°
Swivel angle range	-60 - 60°
Pivot angle	-180 - 190°
Distance to the wall (max)	8.8 cm
Tilt adjustment
Cable management
Mounting
Maximum weight capacity	15 kg
Minimum screen size	33 cm (13")
Number of displays supported	1
Maximum screen size	33 cm (13")
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting type	Wall
Suitable for computer monitor
Other features
Dimensions (WxDxH)	120 x 160 x 90 mm
Packaging data
Quantity per pack	1 pair(s)
Package width	160 mm
Package depth	262 mm
Package height	100 mm
Package volume	3900 cm³
Package weight	871 g
Technical data
Height packaging	0.100m
Article height	9.00cm
Packaging volume	0.0039m³
Article length	16.00cm
Type	Wall Bracket for displays
VESA	75x75 / 100x100mm
Net weight	0.643kg
Suitable for	Displays from 33cm (13") to 68cm (27")
Article width	12.00cm
Rotatable	+/-60°
Wall distance	8.8cm
Tiltable	+/-15°
Load (max.)	15kg
Weight	0.871kg
Length packaging	0.262m
Width packaging	0.160m
GS tested
Safety lock system
Cable management
Monitor arm
Weight & dimensions
Width	120 mm
Depth	160 mm
Height	90 mm
Weight	643 g

---
