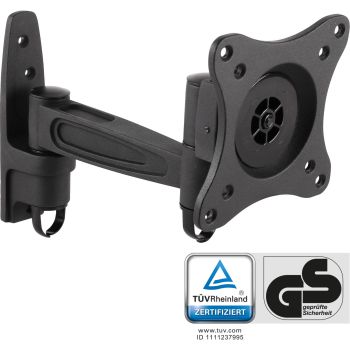

InLine® Wall mount, for monitors up to 69cm (27"), max. 15kg, one-piece arm
|
25,79 EUR |
|
|
( 30,69 EUR incl. VAT ) ≈ £21.59 | ≈ $28.86 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1605005 |
| Mfg Part No: | 23106D |
| UPC/EAN: | 4043718299904 |
| Weight: | 1.185 kg |
Further Wand-/Tischhalterungen and feet from InlineFurther products in category Wand-/Tischhalterungen and feet
All products of Inline
Product information for Inline 23106D:
Flexible alignment: The single-arm swivel arm allows the screen to be positioned freely.
Space-saving design: Ideal for workplaces with limited space due to short wall clearance.
Quick device change: Sliding VESA plate allows tool-free attachment.
Greater security: Anti-theft device protects against unauthorized removal (lock optional).
Neat cable routing: Integrated cable management keeps the workplace tidy.
The InLine wall mount with one-piece swivel arm is perfect for monitors up to 27 inches. With its tiltable, swiveling, and rotating VESA plate, it offers maximum flexibility in a minimum of space. Installation is easy with just three screws, while the slide-in VESA plate allows for quick device changes. An optional padlock provides additional theft protection – ideal for offices, home offices, or public areas. Thanks to integrated cable management, everything stays neat and secure on the wall.
Screen size: 13–27 inches
Maximum load capacity: 15 kg
Wall distance: 88–248 mm
VESA: 75x75, 100x100
Tilt: +15° to -15
Swivel: +90° to -90
Rotation: 360
Material: Aluminum
Space-saving design: Ideal for workplaces with limited space due to short wall clearance.
Quick device change: Sliding VESA plate allows tool-free attachment.
Greater security: Anti-theft device protects against unauthorized removal (lock optional).
Neat cable routing: Integrated cable management keeps the workplace tidy.
The InLine wall mount with one-piece swivel arm is perfect for monitors up to 27 inches. With its tiltable, swiveling, and rotating VESA plate, it offers maximum flexibility in a minimum of space. Installation is easy with just three screws, while the slide-in VESA plate allows for quick device changes. An optional padlock provides additional theft protection – ideal for offices, home offices, or public areas. Thanks to integrated cable management, everything stays neat and secure on the wall.
Screen size: 13–27 inches
Maximum load capacity: 15 kg
Wall distance: 88–248 mm
VESA: 75x75, 100x100
Tilt: +15° to -15
Swivel: +90° to -90
Rotation: 360
Material: Aluminum
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| Certification | |
| Ergonomics | |
| Tilt angle range | -15 - 15° |
| Swivel angle range | -90 - 90° |
| Angle of rotation | 360° |
| Pivot angle | -180 - 190° |
| Number of pivot points | 2 |
| Distance to the wall (max) | 24.8 cm |
| Distance to the wall (min) | 8.8 cm |
| Tilt adjustment | |
| Cable management | |
| Mounting | |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Number of displays supported | 1 |
| Maximum screen size | 33 cm (13") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Mounting type | Wall |
| Suitable for computer monitor | |
| Other features | |
| Dimensions (WxDxH) | 120 x 260 x 210 mm |
| Packaging data | |
| Quantity per pack | 1 pair(s) |
| Package width | 220 mm |
| Package depth | 245 mm |
| Package height | 100 mm |
| Package volume | 5200 cm³ |
| Package weight | 1.19 kg |
| Technical data | |
| Monitor arm | Yes (flat to the wall foldable) |
| Length packaging | 0.245m |
| Type | Wall Bracket for displays |
| Height packaging | 0.100m |
| Article height | 21.00cm |
| Packaging volume | 0.0052m³ |
| Article length | 26.00cm |
| VESA | 75x75 / 100x100mm |
| Tiltable | +/-15° |
| Width packaging | 0.220m |
| Wall distance | 8.8 - 12.4cm |
| Load (max.) | 15kg |
| Weight | 1.185kg |
| Net weight | 1.020kg |
| Suitable for | Displays from 33cm (13") to 68cm (27") |
| Article width | 12.00cm |
| Rotatable | +/-90° |
| Cable management | |
| Safety lock system | |
| GS tested | |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 260 mm |
| Height | 210 mm |
| Weight | 1.02 kg |
