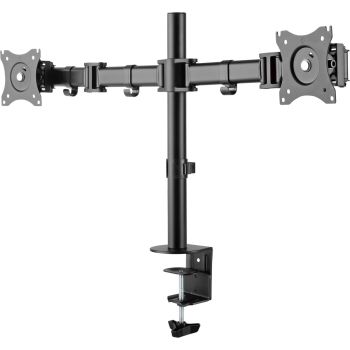

InLine® Desktop bracket, for 2x TFT/LCD/LED up to 68cm (27") max. 2x8 kg content_copy

More space and ergonomics with a flexible dual monitor mountDouble screen space: For two monitors 33-68 cm (13-68,6 cm ( 27 inch )) with up to 8 kg per arm.
Individual alignment: Height adjustable, tilt +/- 30 ° and 360 ° rotation per monitor.
Flexible mounting: Screw clamp for desk edge or through-desk mounting, tabletop thickness 10-88 mm.
Compatible and quick to install: VESA 75x75 and 100x100 mm, mounting screws included.
Tidy workspace: Integrated cable management routes cables neatly.
This desk mount enables an ergonomic dual monitor workstation. Two articulated arms securely support flat panel displays 33-68 cm (13-68,6 cm ( 27 inch )) and position them optimally via height adjustment, +/- 30 ° tilt and 360 ° rotation. Thanks to VESA 75x75/100x100 mm and the included screws, mounting is quick, while the integrated cable management keeps the desk surface tidy.
It proves its worth in professional IT environments and at office workstations, including on-site deployments. In existing infrastructures of companies and public institutions, the clamp mount or through-desk mounting enables clean, stable integration.
Number of monitors: 2
Monitor size: 33-68 cm (13-68,6 cm ( 27 inch ))
VESA: 75x75, 100x100 mm
Tilt: +/- 30 °
Rotation: 360 °
Load capacity: up to 8 kg per arm
Arms: 2 articulated arms
Mounting: screw clamp, desk edge or through-desk
Tabletop thickness: 10-88 mm
Height adjustment: adjustable
Cable management: integrated
Scope of delivery: screws for monitor mounting

Design
Product colour	Black
Ergonomics
Depth adjustment range	10 - 88 mm
Tilt angle range	-30 - 30°
Angle of rotation	360°
Height adjustment
Adjustable depth
Tilt adjustment
Mounting
Maximum weight capacity	16 kg
Minimum screen size	33 cm (13")
Number of displays supported	2
Maximum weight capacity (per display)	8 kg
Maximum screen size	33 cm (13")
Mounting	Clamp
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75,100 x 100 mm
Desk thickness (min)	1 cm
Desk thickness (max)	8.8 cm
Suitable for TV
Other features
Dimensions (WxDxH)	115 x 450 x 135 mm
Packaging content
Clamp included
VESA mount included
Packaging data
Package width	155 mm
Package depth	480 mm
Package height	135 mm
Package volume	9200 cm³
Package weight	4.93 kg
Package type	Box
Technical data
Load (max.)	2x8kg
Suitable for	Displays from 33cm (13") to 68cm (27")
Net weight	2.613kg
Tiltable	+/-30°
Packaging volume	0.0092m³
Article length	45.00cm
Width packaging	0.155m
Height packaging	0.135m
Article height	13.50cm
VESA	75x75 / 100x100mm
Number of monitors	2
Special feature	None
Article width	11.50cm
Weight	4.930kg
Length packaging	0.480m
Gas spring
Hinged/swivel arm
Adjustable in height
Rotatable
Weight & dimensions
Width	115 mm
Depth	450 mm
Height	135 mm
Weight	2.61 kg

---
