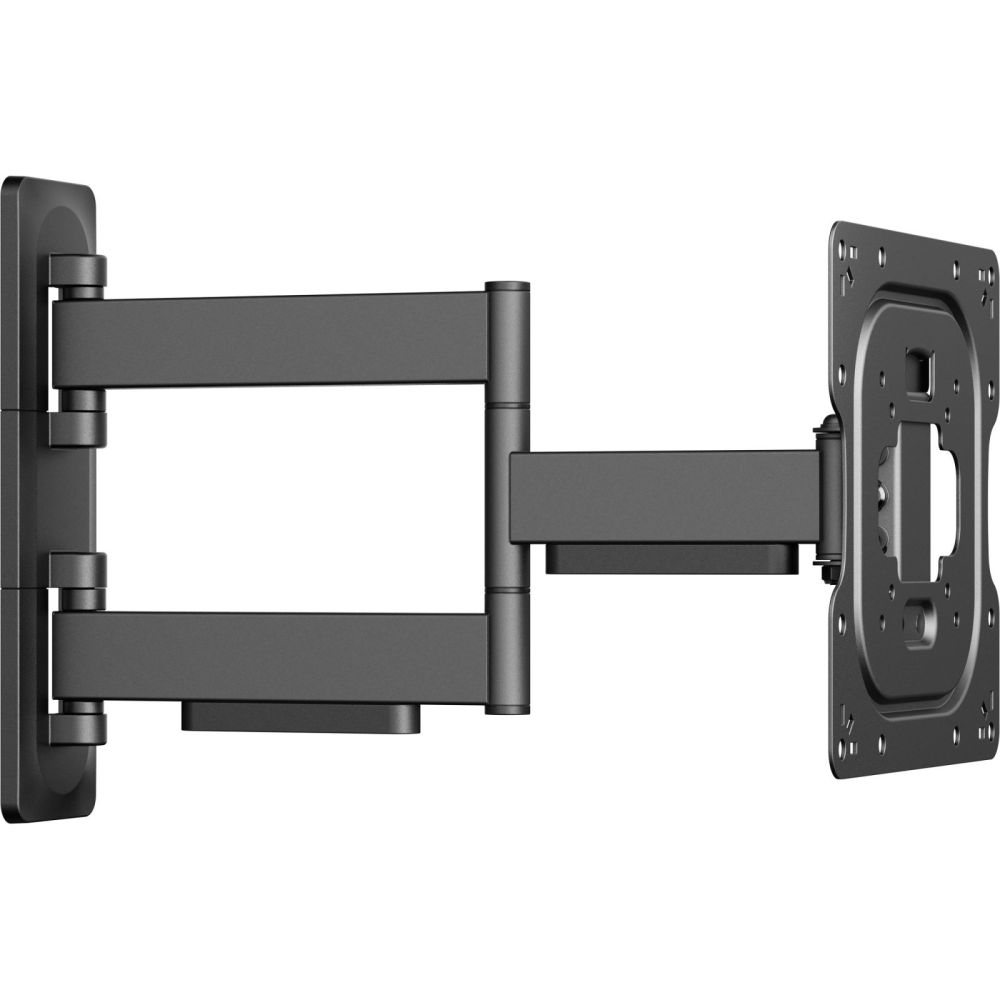

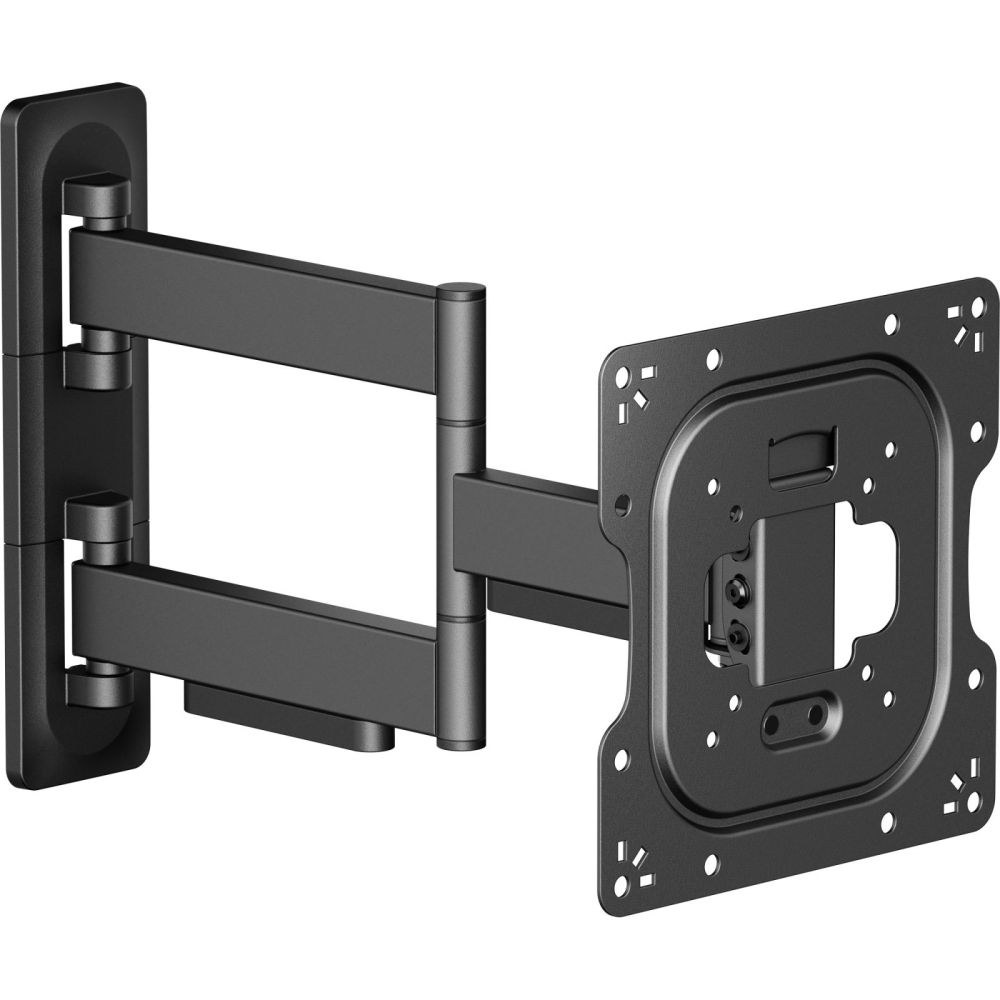

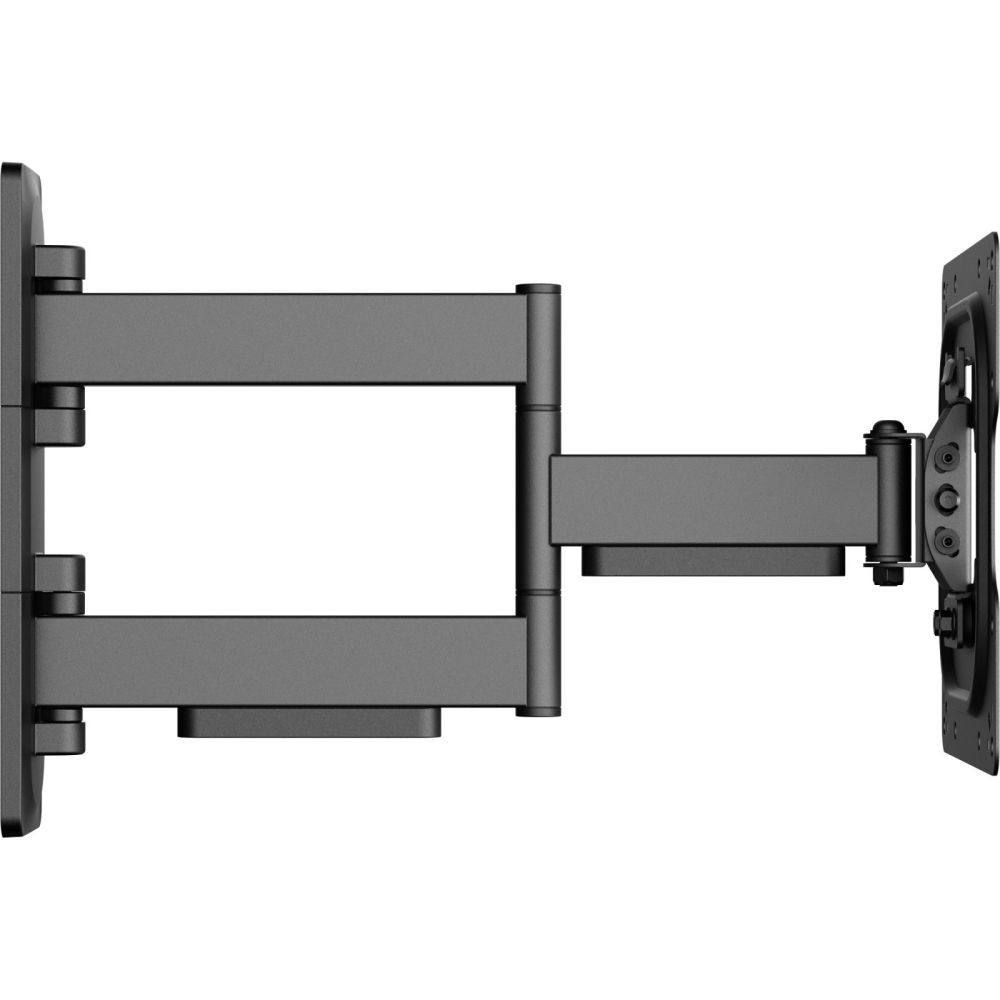

InLine® Full-Motion TV wall mount, 23-43 inch, up to 35 kg, black content_copy

Flexible alignment: Swivels up to ±90° and tilts from +5° to −10° for the best possible viewing angle.
Customizable: Extendable wall distance of 48–418 mm ensures full flexibility.
High compatibility: Suitable for 23–43-inch TVs, supports VESA 75×75 to 200×200 mm.
Robust & durable: Powder-coated steel reliably supports TVs weighing up to 35 kg.
Clean & tidy: Integrated cable management and covers for a tidy look.
The InLine Full-Motion TV Wall Mount offers maximum flexibility and security for TVs from 23 to 43 inches. It is ideal for flat screens up to 35 kg and, thanks to its swivel and tilt function, ensures the perfect viewing angle in any room.
The mount can be swiveled ±90° and tilted between +5° and −10°, reducing reflections and improving image quality. With an extendable wall distance of 48 to 418 mm, it can be adapted to different room conditions.
Thanks to VESA compatibility from 75×75 to 200×200 mm, the mount is universally applicable. The robust steel with a black matt powder coating ensures stability and durability. Integrated cable management and decorative covers ensure a neat appearance behind the screen.
Installation is easy: the removable panel plate facilitates installation and the supplied mounting hardware makes it easy to attach to solid or stud walls. This wall mount is therefore a reliable solution for a modern and space-saving TV experience.

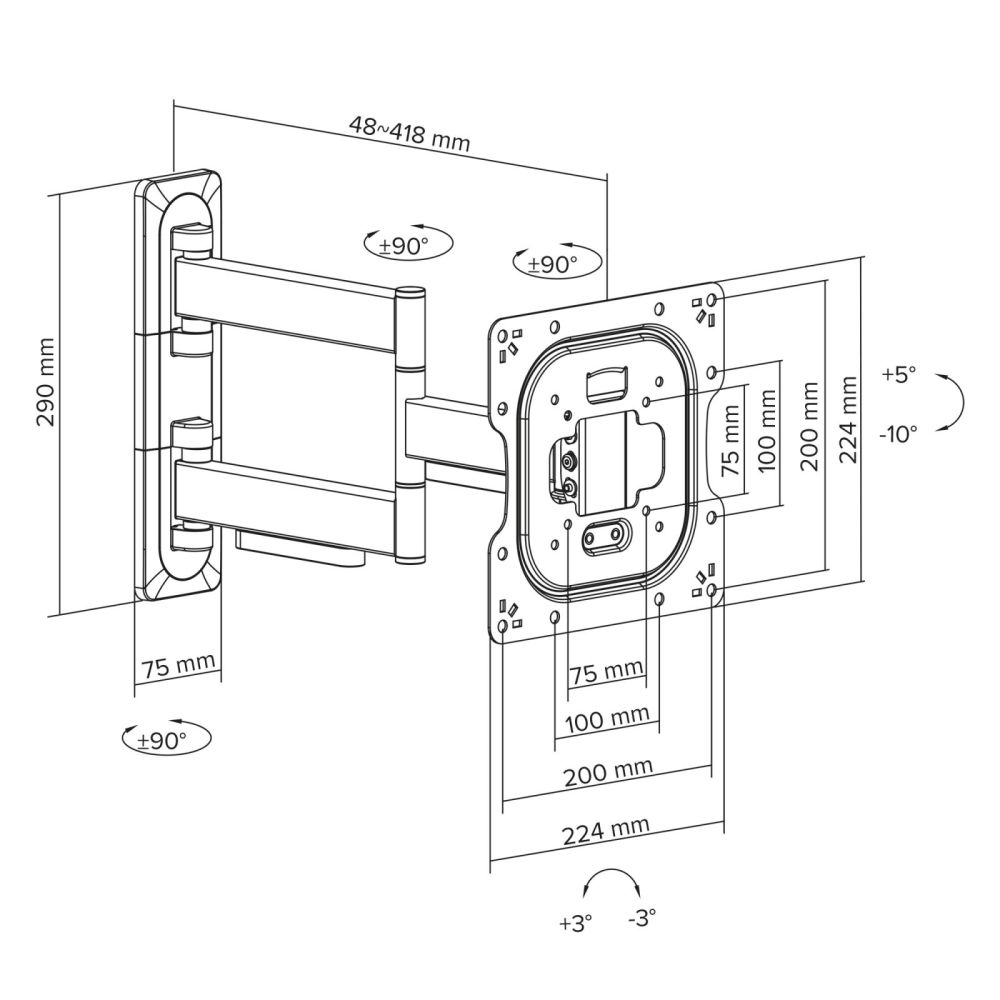

Screen size: 23–43 inches
Load capacity: up to 35 kg
VESA compatibility: 75×75, 100×100, 200×100, 200×200 mm
Swivel range: ±90
Tilt range: +5° to −10
Wall distance: 48–418 mm (extendable)
Material: Steel, powder-coated in matt black
Integrated cable management
Removable panel plate for easy installation
Mounting: Suitable for solid walls and stud walls

Design
Product colour	Black
Housing material	Steel
Ergonomics
Tilt angle range	-10 - 5°
Swivel angle range	-90 - 90°
Distance to the wall (max)	41.8 cm
Distance to the wall (min)	4.8 cm
Tilt adjustment
Swivelling
Cable management
Mounting
Maximum weight capacity	35 kg
Minimum screen size	58.4 cm (23")
Number of displays supported	1
Maximum weight capacity (per display)	35 kg
Maximum screen size	109.2 cm (43")
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	75 x 75,200 x 100,100 x 100,200 x 200
Mounting type	Wall
Other features
Dimensions (WxDxH)	224 x 48 x 290 mm
Packaging content
Mounting kit
Packaging data
Package width	270 mm
Package depth	310 mm
Package height	60 mm
Package volume	5000 cm³
Package weight	2.6 kg
Package type	Box
Technical data
Height packaging	0.060m
Type	Wall Bracket for TV
Load (max.)	35kg
Article length	4.80cm
Packaging volume	0.0050m³
Tiltable	+5 / -10°
Length packaging	0.310m
Suitable for	Displays from 58 cm (23‘) to 109 cm (43’)
Rotatable	+/-90°
Article width	22.40cm
VESA	75x75, 100x100, 200x100, 200x200
Weight	2.600kg
Article height	29.00cm
Wall distance	48-418mm
Width packaging	0.270m
Net weight	2.200kg
Safety lock system
Cable management
Monitor arm
Technical details
Country of origin	Taiwan
Compliance certificates	TÜV mark
Weight & dimensions
Width	224 mm
Depth	48 mm
Depth (max)	4.8 cm
Height	290 mm
Weight	2.2 kg

---
