InLine® Wall Bracket for TFT / LED / Plasma 58 - 107cm 23 - 106,7 cm ( 42 inch ) max. 30kg
|
24,91 EUR |
|
|
( 29,64 EUR incl. VAT ) ≈ £20.85 | ≈ $27.87 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 288686 |
| Mfg Part No: | 23103A |
| UPC/EAN: | 4043718172139 |
| Weight: | 2.155 kg |
Further Wand-/Tischhalterungen and feet from InlineFurther products in category Wand-/Tischhalterungen and feet
All products of Inline

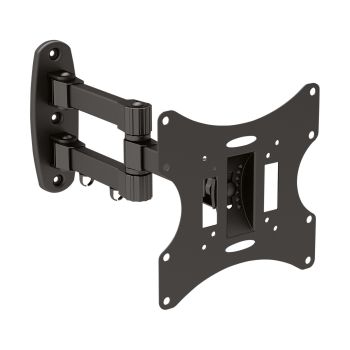

Product information for Inline 23103A:
Space-saving wall mounting with tilt and swivel functionOptimal view from any angle: Tilt by +/- 20° and swivel 90° left/right (up to approx. 81,3 cm ( 32 inch )).
Adjustable wall distance: 10-39 cm make connection work easier and support adaptation to the room.
Neat cable routing: Integrated cable management bundles cables for a tidy appearance.
Broad compatibility: For displays 58-107 cm (23-106,7 cm ( 42 inch )) up to 30 kg with VESA 75x75, 100x100, 200x100, 200x200 mm.
The wall mount enables space-saving, flexible mounting of flat-panel displays. With the tilt and swivel function, you can comfortably align the screen for seated or standing positions, while the variable wall distance simplifies access to connectors and adapts positioning to different room conditions. The integrated cable management keeps cables neatly routed.
It proves itself in meeting and training rooms, reception areas, and in on-site installations. In professional IT environments and existing infrastructures of companies and public institutions, it supports clear presentation and information solutions.
Mounting type: Wall mount
Display size: 58-107 cm (23-106,7 cm ( 42 inch ))
Display type: TFT/LCD/LED/Plasma
VESA: 75x75, 100x100, 200x100, 200x200 mm
Tilt: +/- 20°
Swivel: 90° left/right (up to approx. 81,3 cm ( 32 inch ))
Wall distance: approx. 10-39 cm
Load capacity: up to 30 kg
Cable management: integrated
Adjustable wall distance: 10-39 cm make connection work easier and support adaptation to the room.
Neat cable routing: Integrated cable management bundles cables for a tidy appearance.
Broad compatibility: For displays 58-107 cm (23-106,7 cm ( 42 inch )) up to 30 kg with VESA 75x75, 100x100, 200x100, 200x200 mm.
The wall mount enables space-saving, flexible mounting of flat-panel displays. With the tilt and swivel function, you can comfortably align the screen for seated or standing positions, while the variable wall distance simplifies access to connectors and adapts positioning to different room conditions. The integrated cable management keeps cables neatly routed.
It proves itself in meeting and training rooms, reception areas, and in on-site installations. In professional IT environments and existing infrastructures of companies and public institutions, it supports clear presentation and information solutions.
Mounting type: Wall mount
Display size: 58-107 cm (23-106,7 cm ( 42 inch ))
Display type: TFT/LCD/LED/Plasma
VESA: 75x75, 100x100, 200x100, 200x200 mm
Tilt: +/- 20°
Swivel: 90° left/right (up to approx. 81,3 cm ( 32 inch ))
Wall distance: approx. 10-39 cm
Load capacity: up to 30 kg
Cable management: integrated
| Design | |
| Product colour | Black |
| Certification | |
| Ergonomics | |
| Tilt angle range | -20 - 20° |
| Swivel angle range | -90 - 90° |
| Distance to the wall (max) | 39 cm |
| Distance to the wall (min) | 10 cm |
| Tilt adjustment | |
| Cable management | |
| Mounting | |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 58.4 cm (23") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200 |
| Mounting type | Wall |
| Other features | |
| Screen size compatibility | 431.8 - 939.8 mm (17 - 37") |
| Packaging data | |
| Package width | 225 mm |
| Package depth | 270 mm |
| Package height | 95 mm |
| Package volume | 5800 cm³ |
| Package weight | 2.15 kg |
| Technical data | |
| Weight | 2.155kg |
| Length packaging | 0.270m |
| Rotatable | +/-90° |
| Suitable for | Displays from 58cm (23") to 107cm (42") |
| Load (max.) | 30kg |
| Packaging volume | 0.0058m³ |
| Tiltable | +/-20° |
| Width packaging | 0.225m |
| VESA | 75x75 / 100x100 / 200x100 / 200x200mm |
| Net weight | 2.082kg |
| Wall distance | 10 - 39cm |
| Height packaging | 0.095m |
| Type | Wall Bracket for displays |
| Monitor arm | |
| GS tested | |
| Safety lock system | |
| Cable management | |
| Weight & dimensions | |
| Weight | 2.08 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of InLine® Wall Bracket for TFT / LED / Plasma 58 - 107cm 23 - 106,7 cm ( 42 inch ) max. 30kg?
The article InLine® Wall Bracket for TFT / LED / Plasma 58 - 107cm 23 - 106,7 cm ( 42 inch ) max. 30kg is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 23103A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Wall Bracket for TFT / LED / Plasma 58 - 107cm 23 - 106,7 cm ( 42 inch ) max. 30kg always at the best possible price. We can give you a discount of 2% on InLine® Wall Bracket for TFT / LED / Plasma 58 - 107cm 23 - 106,7 cm ( 42 inch ) max. 30kg if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
