InLine® 48,3 cm ( 19 inch ) cable management panel, 1U, 5 plastic brackets, horizontal, gray content_copy

Optimized cable routing for 19-inch racks: Keeps your network cabinet tidy and makes it easier to lay and maintain patch cables.
Rotatable plastic brackets for maximum flexibility: The five sturdy D-rings can be rotated 360° and removed without tools – ideal for changing requirements.
Space-saving 1U design with zero U option: Saves valuable rack space as the panel can be mounted directly at device height.
Secure protection for your cables and ports: Rounded brackets prevent kinks and abrasion, extending the service life of your network technology.
Easy installation with complete accessories: Delivered pre-assembled including mounting hardware and replacement D-rings for immediate use.

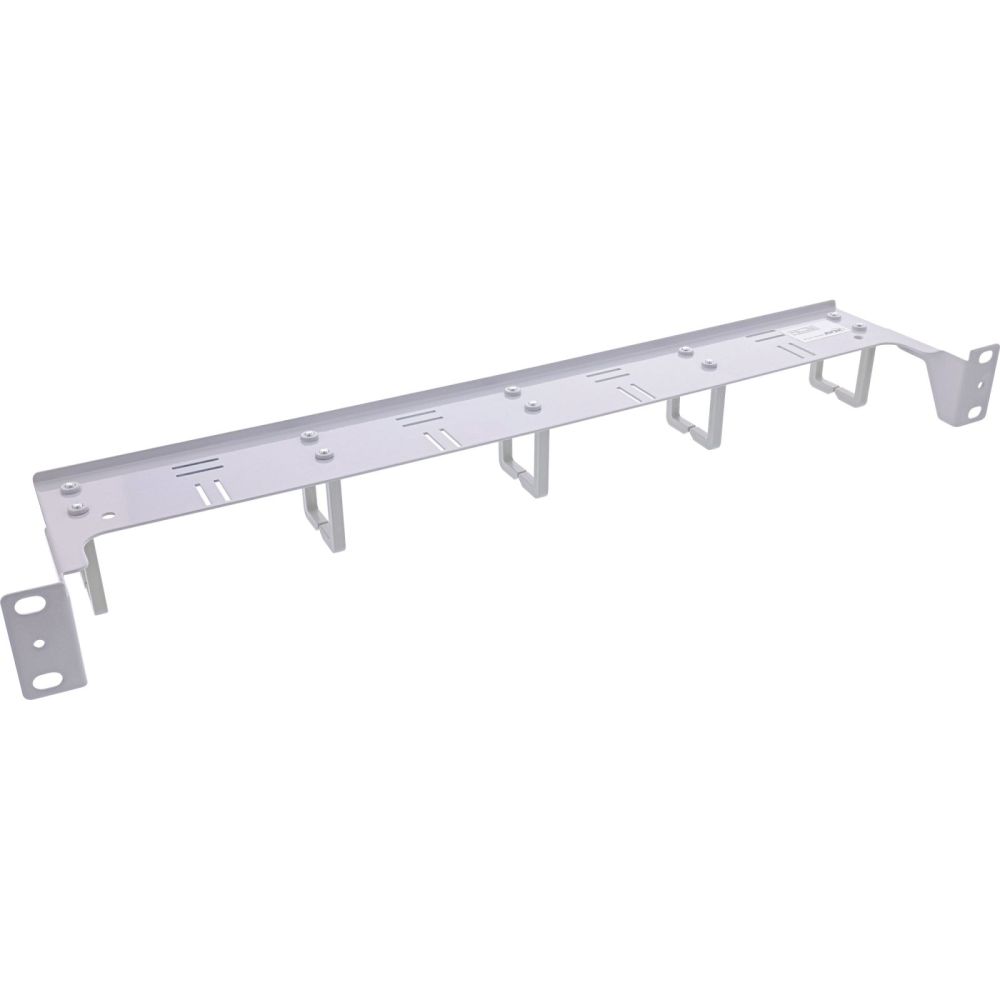

The InLine 19-inch cable management panel was developed for demanding home networks and professional IT environments where order and structure are essential. With its five sturdy plastic brackets in a rotating C-design, horizontal cable management can be optimally implemented – ideal for patch cables and other network cables. The 360° swivel D-rings can be removed without tools and allow flexible adaptation to your cabling.
Thanks to its compact 1U design, the panel can be seamlessly integrated into 19-inch racks. The zero U mounting option allows it to be installed directly above or below active devices without taking up additional height units, saving valuable space in the network cabinet.
The rounded cable brackets provide optimum protection against kinks, abrasion, and stress that could otherwise damage connections or cables. At the same time, the side slots provide additional options for securing with cable ties, enabling even more structured cable management.
The panel is delivered pre-assembled and includes everything you need for immediate installation – including mounting hardware and replacement D-rings. A well-designed solution for tidy, durable, and professional network management.
Material: Metal panel, plastic D-rings
D-ring dimensions: approx. 43 x 43 mm
Panel depth: approx. 100 mm
Installation height: 1U
Compatible with: 19-inch network cabinets

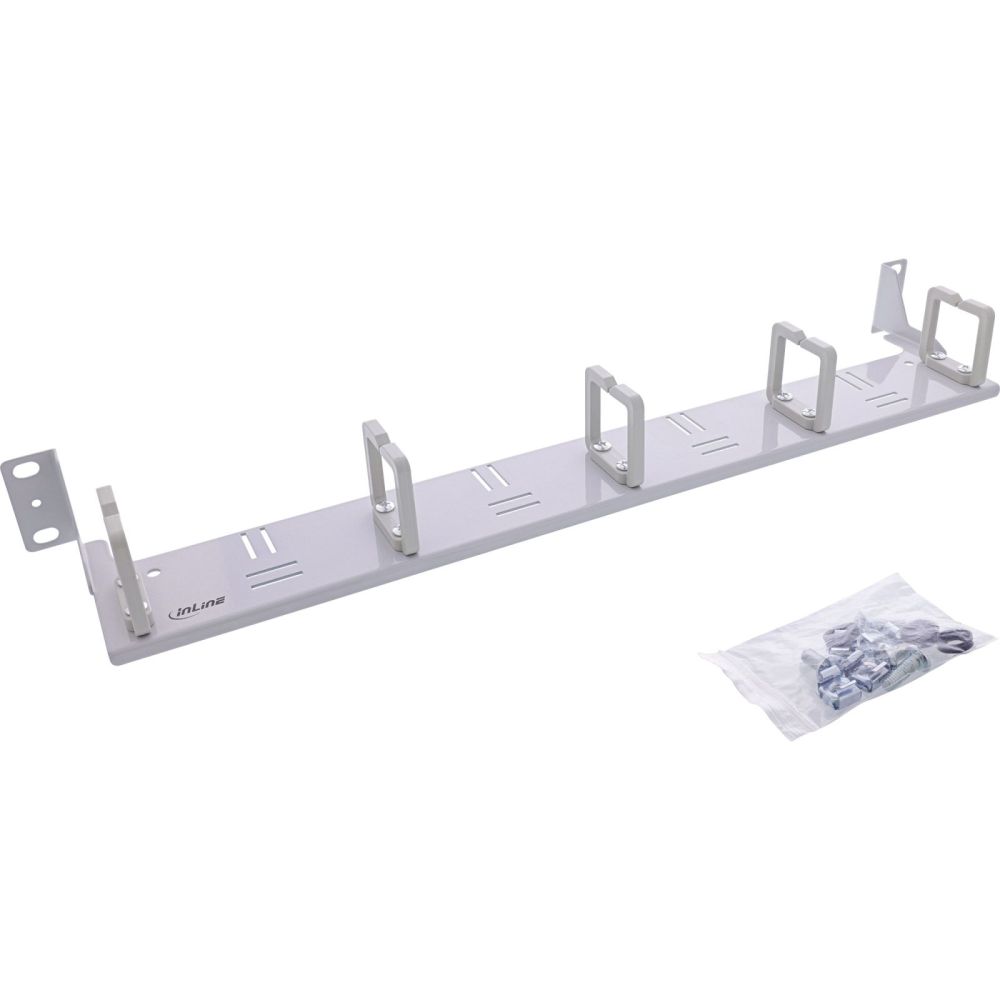

Scope of delivery: Cable management panel, mounting hardware, replacement D-rings

Features
Type	Cable panel
Product colour	White
Rack capacity	1U
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 80 °C
Country of origin	Taiwan
Other features
Dimensions (WxDxH)	45 x 482 x 100 mm
Packaging content
Mounting kit
Packaging data
Quantity per pack	1 pc(s)
Package width	105 mm
Package depth	495 mm
Package height	57 mm
Package volume	3000 cm³
Package weight	429 g
Technical data
Length packaging	0.495m
Article width	4.50cm
Operation temperature	-40 to +80°C
Article length	48.20cm
Weight	0.429kg
Height unit	1U
Packaging volume	0.0030m³
Width packaging	0.105m
Article height	10.00cm
Height packaging	0.057m
Colour	Grey (RAL7035)
Net weight	0.325kg
Storage temperature	-40 to +85°C
Number of brackets	5
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	45 mm
Depth	482 mm
Height	100 mm
Weight	325 g

---
