InLine® 48,3 cm ( 19 inch ) wall rack, 4U, depth 24-40cm, covers, grey RAL7035
|
34,03 EUR |
|
|
( 40,50 EUR incl. VAT ) ≈ £28.48 | ≈ $38.08 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193918 |
| Mfg Part No: | 19104D |
| UPC/EAN: | 4043718284856 |
| Weight: | 5.506 kg |
Product information for Inline 19104D:
Adjustable installation depth: The adjustable 24-40cm depth adapts to different installations and offers a flexible solution for various 19-inch components.
Protected installation: Top and bottom covers protect installed components, covering half the mounting depth for a compact, structured installation.
Easy assembly: The folded rack is easy to transport with little space and includes eight M6 cage nuts and four wall-mounting screws.

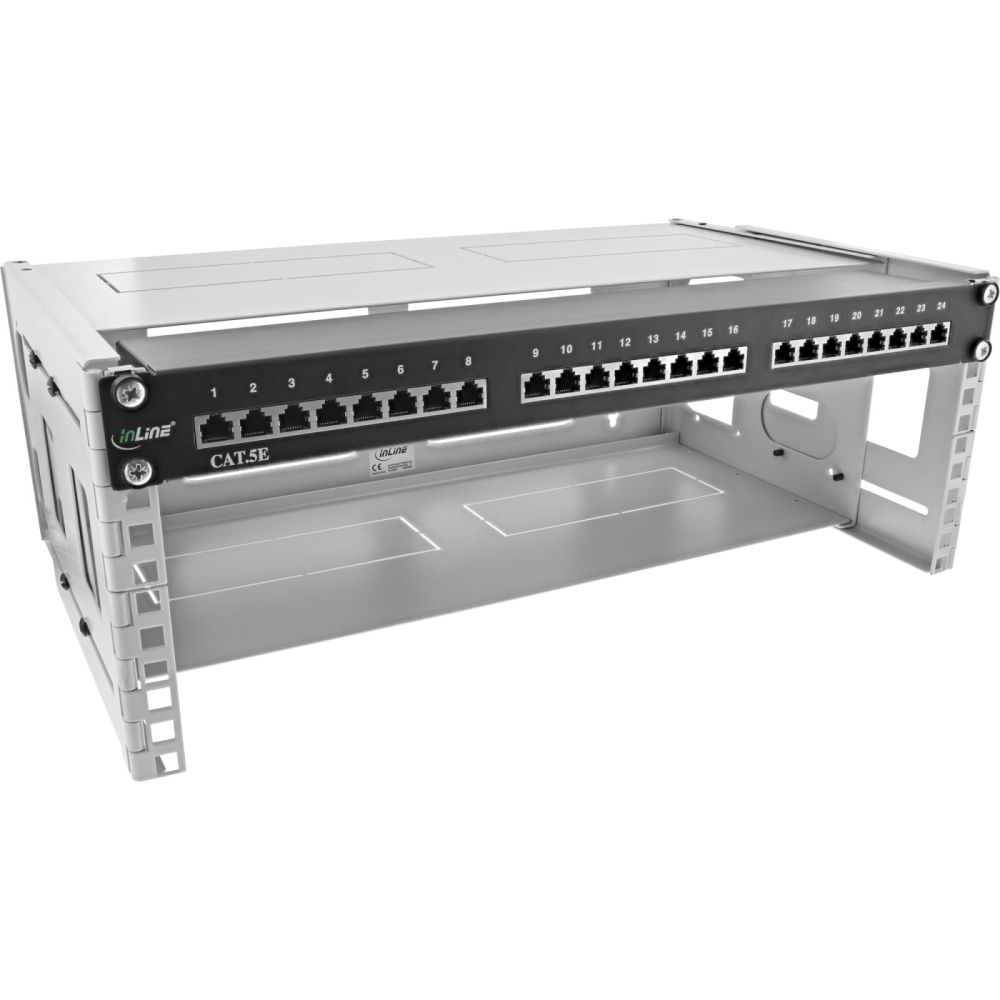

Versatile use: The 19-inch rack is available in 2U and 4U versions for suitable components such as patch panels and network switches.

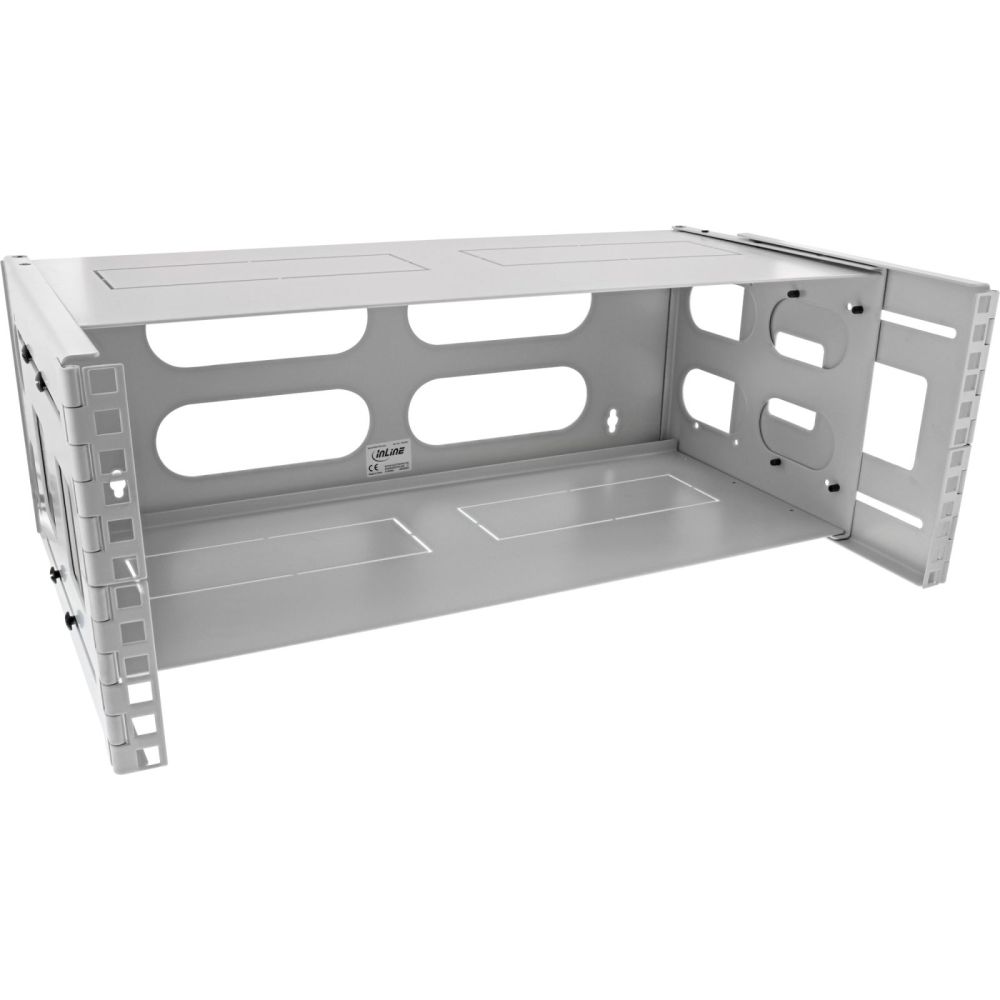

The InLine 19-inch wall rack is a compact solution for mounting 19-inch components directly on a wall. Its space-saving design allows organised installation in various environments.
The rack depth adjusts from 24-40cm to suit different components. Top and bottom covers provide protected placement in a compact design.

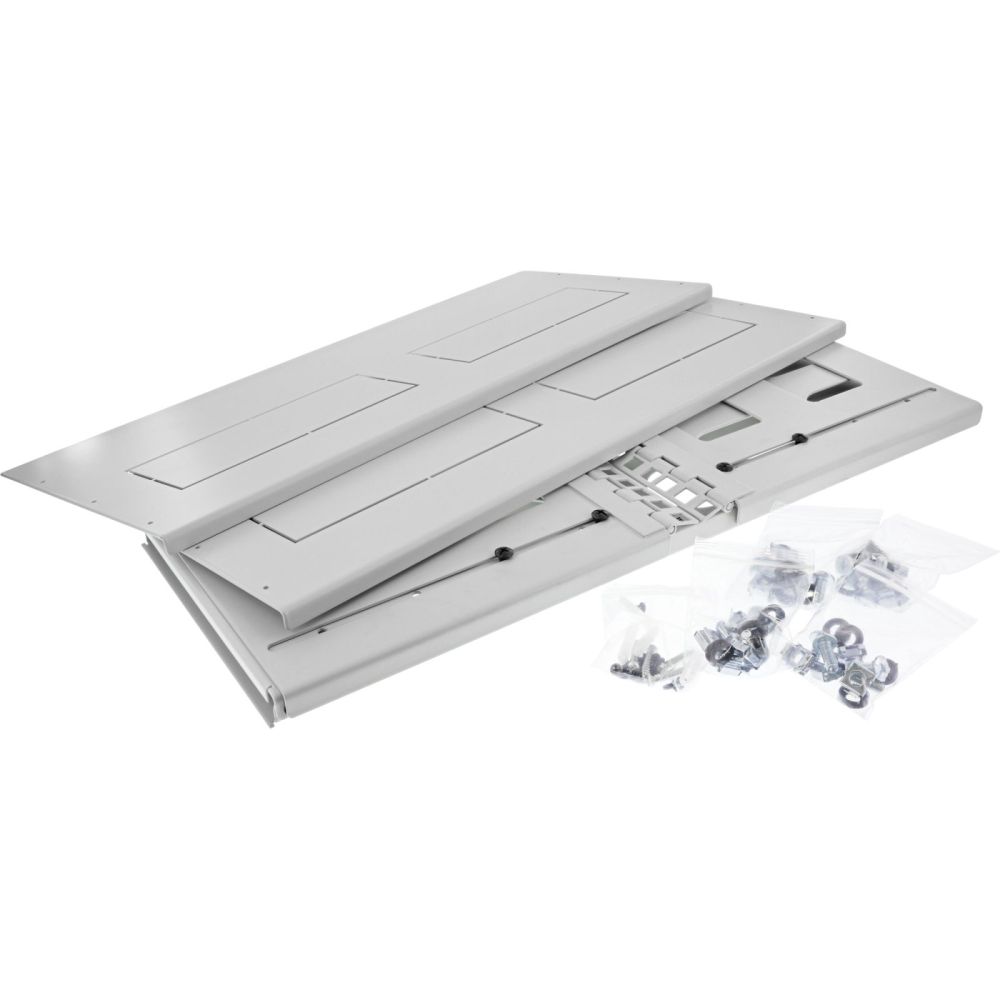

Available in 2U and 4U versions with different mounting heights for suitable components. Supplied folded for space-saving storage.
Content of delivery includes eight M6 cage nuts and four wall-mounting screws.
The InLine 19-inch wall rack suits structured 19-inch installations and provides a flexible solution for compact wall mounting.

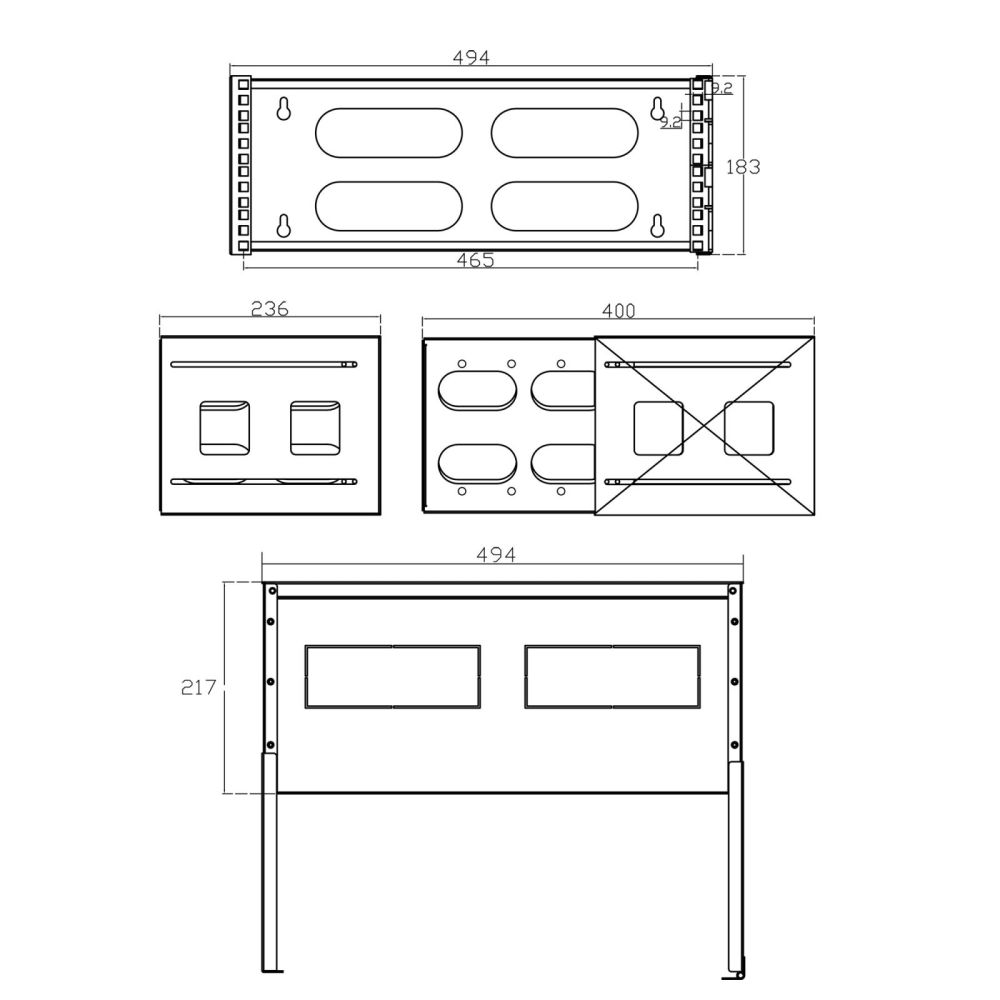

Design: 19-inch wall-mount rack
Mounting height: 2U or 4U
Adjustable depth: 24-40cm
Width: 49.4cm
Height of 2U version: 92mm
Height of 4U version: 183mm
Covers: top and bottom, covering half the mounting depth
Load capacity of 2U model: approx. 10kg max.
Load capacity of 4U model: approx. 12kg max.
Content of delivery: eight M6 cage nuts and four wall-mounting screws
| Features | |
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Product colour | Grey |
| Frame type | Closed |
| Adjustable depth | |
| Other features | |
| Dimensions (WxDxH) | 5 x 2 x 2 mm |
| Packaging data | |
| Number of screws | 4 |
| Package width | 215 mm |
| Package depth | 515 mm |
| Package height | 60 mm |
| Package volume | 6700 cm³ |
| Package weight | 5.51 kg |
| Screws included | |
| Wall mounting kit | |
| Mounting kit | |
| Technical data | |
| Weight | 5.506kg |
| Height (outside) | 183mm |
| Article height | 0.20cm |
| Colour | Grey (RAL7035) |
| Width packaging | 0.215m |
| Width | 494mm |
| Net weight | 5.129kg |
| Packaging volume | 0.0067m³ |
| Article length | 0.20cm |
| Height packaging | 0.060m |
| Article width | 0.50cm |
| Height unit | 4U |
| Length packaging | 0.515m |
| Weight & dimensions | |
| Width | 5 mm |
| Depth | 2 mm |
| Height | 2 mm |
| Weight | 5.13 kg |
| Mounting depth (min) | 24 cm |
| Mounting depth (max) | 40 cm |
