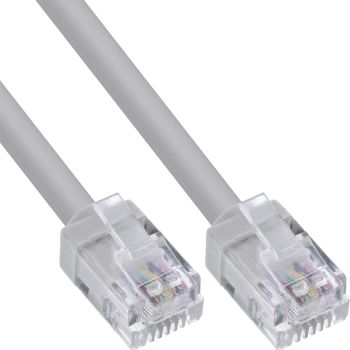

InLine® Modular round cable RJ12, male/male, 6-core, 6P6C, 3m content_copy

Reliable RJ12 Connections for Communication, Control, and Sensor TechnologyStable Signal Transmission: Pure copper conductors (AWG 26) reduce line resistance compared to conventional CCS versions and ensure reliable transmission in communication and signal systems.
Robust connector: Moulded RJ12 connectors increase mechanical stability and protect the connection during frequent plugging and unplugging as well as in long-term use in technical installations.
Fully populated 6P6C version: All six contacts are connected, enabling use in applications with full signal assignment, from communication systems to signal-carrying connections.
Flexible routing: The round cable is easier to route than comparable flat cables and supports neat cable routing in control cabinets, enclosures, and installations.
Versatile: Suitable for telephone, fax, and communication applications, as well as for connections in control systems, regulation systems, sensor technology, and other technical systems with RJ12 connectors.
The InLine RJ12 modular cable was developed for applications where reliable signal transmission and a robust connection are paramount. Unlike many standard versions, the series features pure copper conductors with AWG26. The larger conductor cross-section and reduced line resistance support stable signal transmission even over longer connections.
The fully populated 6P6C version connects all six contacts and is suitable for applications with full signal assignment. In addition to classic telephone, fax, and communication applications, the cable can also be used in control systems, regulation systems, sensor technology, and other signal-carrying systems. Moulded RJ12 connectors improve mechanical durability and increase the stability of the connection in daily use.
The round cable also offers advantages during installation and enables neat cable routing in technical installations. The gray finish in RAL 7035 makes it easy to distinguish the series from conventional modular cables.
RJ12 connector to RJ12 connector
6P6C connector
6-wire full assignment
Conductor cross-section AWG26
Pure copper conductors
Molded connector design
Round cable
Color: Gray, RAL 7035

Features
Cable length	3 m
Connector 1	RJ-12
Connector 2	RJ-12
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Grey
Cable type	Round
AWG wire size	26
Packaging data
Diameter	4.3 mm
Weight	262 g
Package width	170 mm
Package depth	235 mm
Package height	3 mm
Package weight	269 g
Technical data
Weight	0.097kg
Length packaging	0.235m
Assignment	6P6C
Width packaging	0.170m
Side A	RJ12 plug
Packing	Retail
Article width	0.90cm
Signal	Data
Article length	300.00cm
Colour	Grey
Diameter	AWG 26
Version	1:1 assignment
Article height	1.10cm
Shielding	Unshielded
Height packaging	0.002m
Design	Round cable
Variant	CU
Outer diameter	4.3mm
Net weight	0.090kg
Side B	RJ12 plug
UL
Technical details
Dimensions (WxDxH)	9 x 10000 x 11 mm

---
