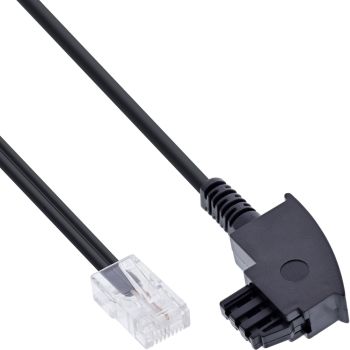

InLine® DSL cable, TAE-F plug to RJ45 8P2C, black, 10 m content_copy

DSL connection cable with TAE-F plug to RJ45 for direct router connection Direct DSL connection: Connect the TAE-F connector directly to the RJ45 port of a suitable DSL router. The cable is suitable for complete DSL connections without a splitter.
Defined pinout: The connection from TAE to RJ45 is made via pin assignments 1-4 and 2-5. The RJ45 plug is configured as 8P2C, enabling a clear assignment of the pins.
Space-saving flat cable: The 2-core unshielded DSL cable has an outer diameter of 4.8 x 2.4 mm. The flat design facilitates space-saving cable routing during installation.
Direct connection instead of an additional adapter: TAE-F and RJ45 connectors are already integrated into the connection cable. This allows you to connect compatible ports directly using a DSL connection cable.
Unambiguously matching connectors: Side A has an RJ45 connector and side B has a TAE-F connector. This makes it easy to select the correct router cable based on the required connector.
The InLine DSL cable establishes a direct connection between a TAE-F socket and the RJ45 socket of a compatible DSL router. It is suitable for complete DSL connections without a splitter. The TAE-F plug and RJ45 plug are already permanently attached to the connection cable. An additional adapter for this connection is therefore not required.
The 2-core unshielded flat cable offers a compact design for cable routing. With an outer diameter of 4.8 x 2.4 mm, it can be laid even where space is limited.
The pinout from the TAE-F plug to the RJ45 plug is 1-4 and 2-5. The RJ45 plug has an 8P2C pinout. This allows you to check specifically before installation whether the connection type and pinout are compatible with your DSL router and the existing TAE-F socket.
The black DSL connection cable thus connects two clearly defined connector types and offers a straightforward solution for corresponding DSL installations without the need for a splitter.
No additional technical specifications. All relevant technical details are already included in the bullet points or in the full description.

Features
Cable length	10 m
Connector 1	TAE-F
Connector 2	RJ45
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Packaging data
Weight	118 g
Package width	170 mm
Package depth	120 mm
Package height	20 mm
Package weight	121 g
Package volume	400 cm³
Technical data
Outer diameter	4.8x2.4mm
Net weight	0.118kg
Side A	RJ45 plug
Article length	1000.00cm
Side B	TAE-F plug
Length packaging	0.120m
Length	10m
Height packaging	0.020m
Width packaging	0.170m
Weight	0.121kg
Assignment	8P2C
Colour	Black
Packaging volume	0.0004m³
UL
Technical details
Connector type	8P2C

---
