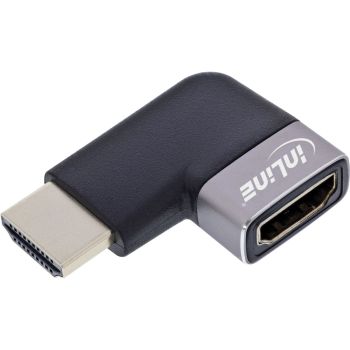

InLine® HDMI adapter, HDMI A plug / socket, 90° left, 8K UHD content_copy

Space-saving installation: The 90-degree angle allows connection in tight spaces and reduces stress on the HDMI port.
Uncompromised signal transmission: The 1:1 pin assignment supports stable transmission of digital audio and video signals.
Suitable for high-resolution applications: Supports UHD 8K and has been tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits.
Reliable contact technology: Gold-plated contacts reduce contact resistance and ensure permanently stable signal paths.
Robust aluminum housing: The metal construction protects the internal contact surfaces and is suitable for demanding installation environments.
The HDMI adapter enables the connection or redirection of an HDMI cable in space-critical installations. The 90-degree angle facilitates use in areas where there is little distance between the device and the wall. The HDMI A plug and socket side allows direct integration into existing HDMI routes without additional active components.
The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals. The adapter supports resolutions up to UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits. Gold-plated contacts minimize contact resistance and contribute to stable signal transmission.
The robust aluminum housing protects the contact surfaces and allows use in stationary and mobile installations. The recommended total length of the signal connection is up to 1.5 meters and can reach a maximum of 2 meters.
The compact design makes the adapter suitable for installation environments where HDMI signals need to be safely and efficiently redirected or extended.
Item width: 3.1 cm
Item height: 1.1 cm
Item length: 4.2 cm
Audio: Yes
Housing material: Aluminum
Outer jacket: Black PVC
Side A: HDMI A plug
Side B: HDMI A socket
Angle direction: 90 degrees left
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Recommended total length: up to 1.5 m, maximum 2 m

Certificates
Compliance certificates	CE, RoHS, TÜV mark
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Other features
Dimensions (WxDxH)	31 x 42 x 11 mm
Packaging data
Package width	50 mm
Package depth	40 mm
Package height	12 mm
Package weight	15 g
Package type	Polybag
Performance
Product colour	Black, Grey
Housing material	Aluminium
Maximum resolution (HDMI)	7680 x 4320 pixels
Ports & interfaces
Connector 1	HDMI A
Connector 2	HDMI A
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector contacts plating	Gold
Technical data
Length packaging	0.040m
Article length	4.20cm
Type	Gold-plated contacts
Net weight	0.013kg
Housing material	Aluminum
Signal	Audio/Video
Width packaging	0.050m
Article width	3.10cm
Height packaging	0.012m
Weight	0.015kg
Design	Angled left
Article height	1.10cm
Side A	HDMI A plug
Side B	HDMI A female
Audio
Weight & dimensions
Width	31 mm
Depth	42 mm
Height	11 mm
Weight	13 g

---
