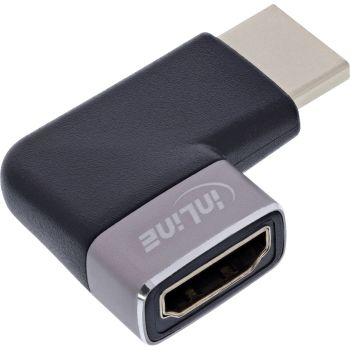

InLine® HDMI adapter, HDMI A plug / socket, 90° right, 8K UHD content_copy

Space-saving solution: The 90-degree angle allows HDMI connection even with minimal wall clearance and facilitates cable routing on TVs and monitors.
Suitable for UHD 8K: Supports high-resolution image signals and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8-bit.
Stable signal transmission: The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals without additional components.
Reliable contact technology: Gold-plated contacts reduce contact resistance and support permanently stable signal connections.
Robust aluminum housing: The high-quality metal construction protects the contact surfaces and is ideal for mobile or fixed installations.
The HDMI adapter allows you to connect or reroute an HDMI cable in situations where there is little space between the device and the wall. The 90-degree angle allows HDMI cables to be routed in a particularly space-saving manner, which makes installation on televisions, monitors, or wall mounts much easier. The combination of HDMI A plug and HDMI A socket allows for flexible expansion or adaptation of an existing HDMI connection.
The adapter supports resolutions up to UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits. This makes it suitable for applications that require high-quality and stable image reproduction. The 1:1 pin assignment ensures that digital audio and video signals are transmitted without distortion.
The gold-plated contacts reduce contact resistance and contribute to reliable signal stability. The robust aluminum housing protects the internal contact surfaces and makes the adapter resilient and durable. With its compact design, it is suitable for both mobile use and permanent installations. The recommended total length of the signal connection is up to 1.5 meters and can reach a maximum of 2 meters.
Item width: 2.9 cm
Item height: 1.0 cm
Item length: 4.2 cm
Audio: Yes
Housing material: Aluminum
Outer jacket: Black PVC
Side A: HDMI A plug
Side B: HDMI A socket
Angle direction: 90 degrees to the right
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Recommended total length: up to 1.5 m, maximum 2 m

Certificates
Compliance certificates	TÜV mark, RoHS
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Other features
Dimensions (WxDxH)	29 x 42 x 10 mm
Packaging data
Package width	50 mm
Package depth	50 mm
Package height	15 mm
Package weight	15 g
Package type	Polybag
Performance
Product colour	Black, Grey
Housing material	Aluminium
Maximum resolution (HDMI)	7680 x 4320 pixels
Ports & interfaces
Connector 1	HDMI A
Connector 2	HDMI A
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector contacts plating	Gold
Technical data
Length packaging	0.050m
Article length	4.20cm
Height packaging	0.015m
Weight	0.015kg
Signal	Audio/Video
Type	Gold-plated contacts
Net weight	0.013kg
Housing material	Aluminum
Width packaging	0.050m
Article width	2.90cm
Side A	HDMI A plug
Design	Angled right
Article height	1.00cm
Side B	HDMI A female
Audio
Weight & dimensions
Width	29 mm
Depth	42 mm
Height	10 mm
Weight	13 g

---
