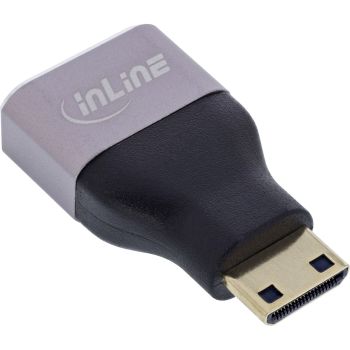

InLine® HDMI adapter, HDMI A female / Mini HDMI C male, 8K UHD content_copy

Reliable connection: HDMI A female connector to mini HDMI C male connector enables a direct connection between mini HDMI devices and existing HDMI cables.
Suitable for UHD 8K: Supports high-resolution signals and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8-bit.
Stable signal transmission: The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals without additional components.
Robust contact technology: Gold-plated contacts reduce contact resistance and support permanently stable transmission paths.
High-quality housing: Aluminum housing and compact design are ideal for mobile applications and professional AV installations.
The HDMI adapter allows a mini HDMI device to be connected directly to a standard HDMI cable. The HDMI A socket and mini HDMI C plug make it easy to extend or adapt the existing signal path without the need for additional active technology. The 1:1 pin assignment ensures that the digital audio and video signal is transmitted reliably and without distortion.
The adapter supports resolutions up to UHD 8K and has been successfully tested with 3840x2160 at 120 Hz and 4:4:4 8 bits. This makes it particularly suitable for demanding applications where high image quality is required. The gold-plated contacts reduce contact resistance and contribute to consistent signal transmission.
The robust aluminum housing protects the internal contacts and makes the adapter resistant and durable. Its compact design makes it suitable for both mobile use and installation in various AV environments. The recommended total length of the signal path is up to 1.5 meters and can reach a maximum of 2 meters.
The adapter offers a practical solution when mini HDMI signals need to be integrated into an existing HDMI infrastructure or existing HDMI cables need to be extended flexibly.
Item width: 1.9 cm
Item height: 1.0 cm
Item length: 3.6 cm
Audio: Yes
Housing material: Aluminum
Outer jacket: Black PVC
Side A: HDMI A socket
Side B: Mini HDMI C plug
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Recommended total length: up to 1.5 m, maximum 2 m

Certificates
Compliance certificates	TÜV mark, RoHS
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Other features
Dimensions (WxDxH)	19 x 36 x 10 mm
Packaging data
Package width	55 mm
Package depth	30 mm
Package height	15 mm
Package weight	10 g
Package type	Polybag
Performance
Product colour	Black, Grey
Housing material	Aluminium
Maximum resolution (HDMI)	7680 x 4320 pixels
Ports & interfaces
Connector 1	HDMI A
Connector 2	Mini HDMI C
Connector 1 gender	Female
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Technical data
Width packaging	0.055m
Article height	1.00cm
Weight	0.010kg
Side B	Mini-HDMI C plug
Height packaging	0.015m
Net weight	0.008kg
Housing material	Aluminum
Type	Gold-plated contacts
Article width	1.90cm
Length packaging	0.030m
Article length	3.60cm
Signal	Audio/Video
Side A	HDMI A female
Audio
Weight & dimensions
Width	19 mm
Depth	36 mm
Height	10 mm
Weight	8 g

---
