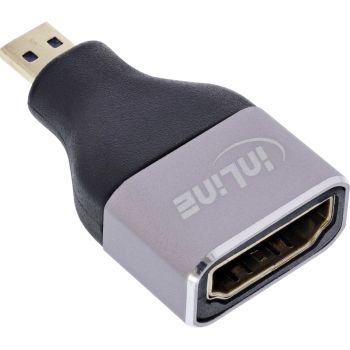

InLine® HDMI adapter, HDMI A female / Micro HDMI D male, 8K UHD content_copy

Reliable connection: HDMI A female connector to Micro HDMI D male connector enables a direct connection between devices and existing HDMI cables.
Suitable for UHD 8K: Supports high-resolution image signals and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8-bit.
Stable signal transmission: The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals.
Robust contact technology: Gold-plated contacts support a stable connection and reduce contact resistance.
High-quality housing: Aluminum housing and compact design are ideal for mobile use and professional installations.
The HDMI adapter connects devices with a micro HDMI output directly to an existing HDMI connection. The HDMI A socket and micro HDMI D plug allow for easy extension or adjustment of the signal path without additional active components. The 1:1 pin assignment ensures that the digital audio and video signal is transmitted without distortion.
The adapter supports resolutions up to UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits. This makes it suitable for high-quality image reproduction and modern content in high quality. The gold-plated contacts contribute to stable signal transmission and reduce electrical contact resistance.
The robust aluminum housing protects the internal contact surfaces and makes the adapter both compact and durable. The design allows for use in a variety of installation environments, both stationary and mobile. The recommended maximum total length of the signal path is 1.5 meters and can reach up to 2 meters.
The adapter is suitable for flexible connection or extension of HDMI cables when micro HDMI signals are to be integrated into an existing HDMI infrastructure.
Housing material: Aluminum
Outer jacket: Black PVC
Audio: Yes
Side A: HDMI A socket
Side B: Micro HDMI D plug
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Dimensions: 19.3 mm x 12 mm x 10 mm

Certificates
Compliance certificates	RoHS, TÜV mark
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Other features
Dimensions (WxDxH)	20 x 35 x 10 mm
Packaging data
Package width	140 mm
Package depth	70 mm
Package height	10 mm
Package weight	10 g
Package type	Polybag
Performance
Product colour	Black, Grey
Housing material	Aluminium
Maximum resolution (HDMI)	7680 x 4320 pixels
Ports & interfaces
Connector 1	HDMI A
Connector 2	Micro HDMI D
Connector 1 gender	Female
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Technical data
Type	Gold-plated contacts
Article width	2.00cm
Length packaging	0.070m
Article height	1.00cm
Weight	0.010kg
Height packaging	0.010m
Net weight	0.007kg
Signal	Audio/Video
Housing material	Aluminum
Side B	Micro-HDMI D plug
Side A	HDMI A female
Width packaging	0.140m
Article length	3.50cm
Audio
Weight & dimensions
Width	20 mm
Depth	35 mm
Height	10 mm
Weight	7 g

---
