InLine® HDMI adapter, HDMI A socket / socket, 8K UHD content_copy

Stable signal transmission: The 1:1 pin assignment enables reliable transmission of HDMI audio and video signals without any loss of quality.
Supports high resolutions: The adapter works with UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8bit.
Durable contact technology: Gold-plated contacts ensure a secure connection and reduce contact resistance in daily use.

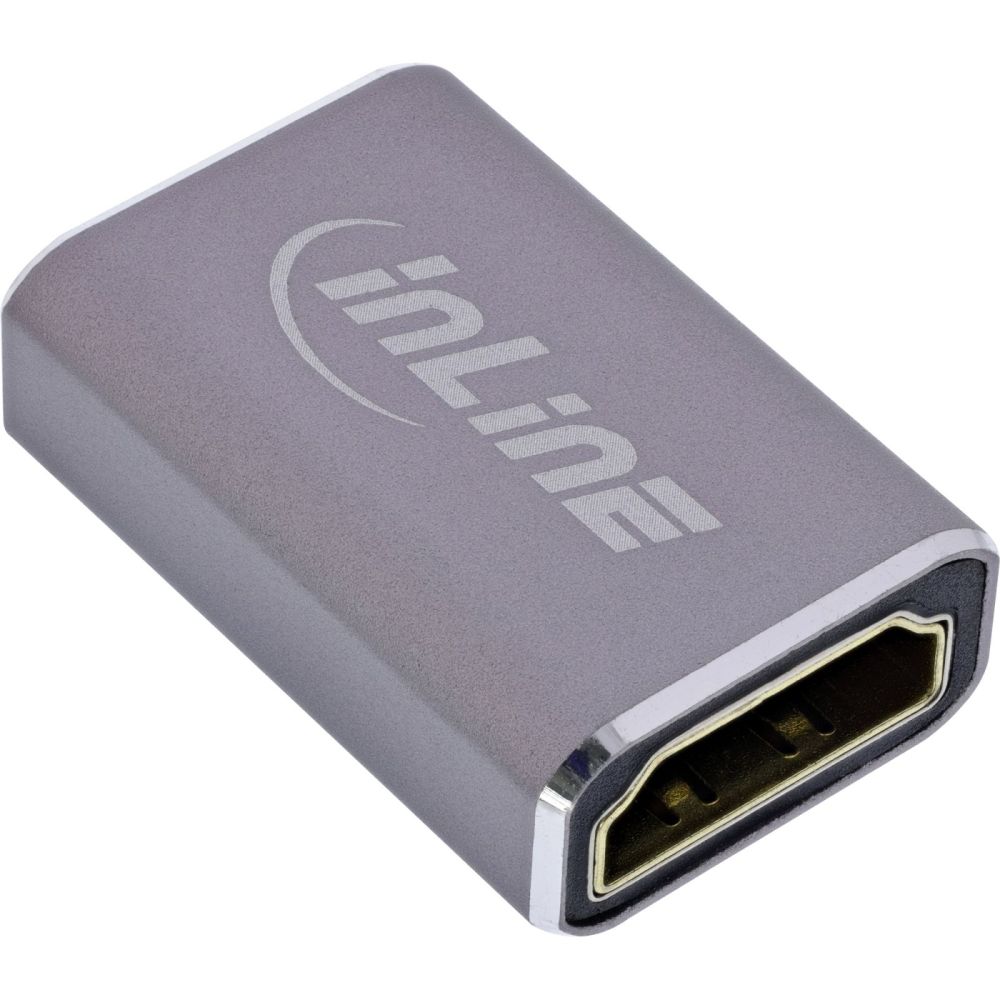

Robust aluminum housing: The metal housing protects the internal contacts and supports a stable HDMI connection even in demanding environments.
Flexible use: Ideal for connecting or extending two HDMI cables in home entertainment, media technology, and digital signage installations.
The HDMI adapter connects two HDMI cables together and allows flexible extension of the existing signal path. The 1:1 pin assignment ensures direct and unadulterated transmission of digital audio and video signals. This allows the connection between devices to be quickly and reliably adjusted without the need for additional technology.
The adapter supports resolutions up to UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8bit. This ensures high image sharpness and stable playback of modern content. The gold-plated contacts contribute to a permanently secure connection and reduce contact resistance.
The compact aluminum housing protects the contact surfaces and offers a durable solution for a variety of applications. The adapter is suitable for extending or connecting existing HDMI cables in areas such as home entertainment, media technology, and digital signage. Due to its passive design, it can be easily integrated into existing installations.
The recommended total length of the connection is up to 1.5 meters and can reach a maximum of 2 meters.
Housing material: Aluminum
Audio: Yes
Side A: HDMI A female connector
Side B: HDMI A female connector
Signal type: Audio/video
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Dimensions: 29.2 mm x 19.3 mm x 9.5 mm

Certificates
Compliance certificates	RoHS, TÜV mark
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Other features
Dimensions (WxDxH)	10 x 30 x 20 mm
Packaging data
Package width	140 mm
Package depth	70 mm
Package height	10 mm
Package weight	13 g
Package type	Polybag
Performance
Product colour	Grey
Maximum resolution (HDMI)	7680 x 4320 pixels
Ports & interfaces
Connector 1	HDMI A
Connector 2	HDMI A
Connector 1 gender	Female
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Technical data
Weight	0.013kg
Signal	Audio/Video
Type	Gold-plated contacts
Article height	2.00cm
Side A	HDMI A female
Length packaging	0.070m
Article length	3.00cm
Width packaging	0.140m
Net weight	0.010kg
Side B	HDMI A female
Height packaging	0.010m
Article width	1.00cm
Housing material	Aluminum
Audio
Weight & dimensions
Width	10 mm
Depth	30 mm
Height	20 mm
Weight	10 g

---
