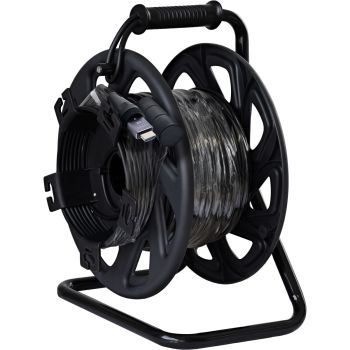

InLine® HDMI cable reel, AOC HDMI 2.1 cable, 8K/60Hz, armoured, black, 90m content_copy

Lossless signal transmission over 50 meters: Thanks to active fiber optic technology, image and sound quality remain intact even over long distances.
8K Ultra HD with HDMI 2.1: Supports 8K at 60 Hz and 4K at 120 Hz with up to 48 Gb/s bandwidth for a crystal-clear AV experience.
Reinforced and robust for continuous use: Metallic armor and protected connectors offer ideal protection during transport, storage, and frequent use.
No power supply required: Passive operation saves time and effort during installation and reduces potential sources of error.
Perfect for demanding applications: Ideally suited for home theater, projector setups, stage installations, or professional AV systems.
The InLine HDMI AOC cable reel with 50 m cable length is the ideal solution for interference-free AV transmission over long distances. The HDMI 2.1 cable supports high-resolution content up to 8K at 60 Hz and 4K at 120 Hz with a bandwidth of 48 Gb/s. Fiber optic technology ensures lossless and low-latency transmission.
Passive operation means that no external power supply is required. The signal direction is clearly defined (source to display), making installation safe and straightforward. Metallic armor protects the cable from tensile stress, pressure, and external influences. The HDMI connectors are additionally equipped with protective sleeves to protect the connections from damage during transport and storage.
The integrated drum facilitates laying and transport. Whether in home cinema or professional applications, this cable drum offers the highest quality, flexibility, and reliability for your AV setup.
HDMI Type A plug ↔ HDMI Type A plug
8K @ 60 Hz, 48 Gb/s, HDMI 2.1
Directional - source → display
Supports EDID, HDCP, CEC, eARC
Passive operation - no external power supply required
PVC jacket, cable color black
Ø 5.5 mm, cable length 50 m / 90 m
Operating temperature −20 °C to +50 °C
Storage temperature −20 °C to +70 °C

Features
Cable length	90 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI cable type	Ultra High Speed HDMI cable
Product colour	Black
HDMI version	2.1
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Data transfer rate	48 Gbit/s
AWG wire size	30
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
HDCP
Magnetically shielded
Enhanced Audio Return Channel (eARC)
Extended display identification data (EDID)
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Depth	90000 mm
Height	430 mm
Width	260 mm
Dimensions (WxDxH)	260 x 90000 x 430 mm
Packaging data
Package width	280 mm
Package depth	350 mm
Package height	450 mm
Package weight	7.9 kg
Package type	Reel
Quantity per pack	1 pc(s)
Technical data
Length packaging	0.350m
Side A	HDMI A plug
Article height	43.00cm
Diameter	AWG 30
Outer diameter	5.5mm
Weight	7.900kg
Net weight	7.300kg
Side B	HDMI A plug
Colour	Black
Packaging volume	0.0440m³
Design	Round cable
Variant	AOC cable
Height packaging	0.450m
Operation temperature	-20 bis +50°C
Storage temperature	-20 to +70°C
Width packaging	0.280m
Article length	9000.00cm
Length	90m
Article width	26.00cm
Signal	Audio/Video
Gold plated contacts
UL
Active cable
Weight & dimensions
Cable diameter	5.5 mm
Weight	7.3 kg
Package volume	44000 cm³

---
