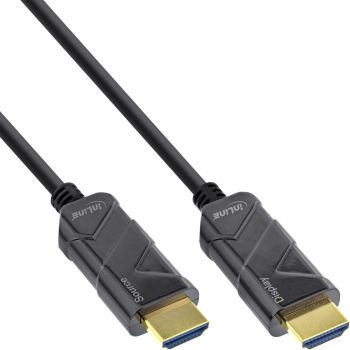

InLine® HDMI AOC cable, Ultra High Speed HDMI, 8K4K, black, 80 m
|
80,43 EUR |
|
|
( 95,71 EUR incl. VAT ) ≈ £67.32 | ≈ $90.00 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193717 |
| Mfg Part No: | 17980I |
| UPC/EAN: | 4043718311378 |
| Weight: | 2.348 kg |
Product information for Inline 17980I:
8K HDMI fiber optic cable for stable connections over long distancesHigh bandwidth for brilliant images: With up to 48 Gb/s, the HDMI 2.1 cable transmits 8K at 60 Hz or 4K at 120 Hz and supports 4:4:4 with 8/10-bit.
AOC technology for long cable runs: The HDMI fiber optic cable combines 4 optical fibers with 7 solid copper strands, enabling high-performance audio and video connections over long distances.
Extensive HDMI features: Use Dynamic HDR, ARC, 3D, HDCP, EDID, CEC and DDC for versatile AV installations. eARC is supported for cable lengths up to 75 m.
Compact and robust design: Metal connectors, aramid protection and a PVC jacket support a durable installation. The cable diameter of just 4.8 mm makes routing easier.
High resolutions with DSC: With Display Stream Compression, the 8K HDMI cable supports up to 8K at 120 Hz and 10K at 100 Hz, provided the connected devices support this feature.
The active optical HDMI cable combines optical fiber and copper conductors in a hybrid design. This allows high-resolution audio and video signals to travel over long distances. The AOC cable suits connections between HDMI sources and displays that are far apart. Optical signal transmission is less susceptible to electromagnetic interference than an all-copper connection.
With 8K at 60 Hz and 4K at 120 Hz, the cable suits high-resolution images and high frame rates. The maximum data transfer rate is 48 Gb/s. With DSC, resolutions up to 8K at 120 Hz and 10K at 100 Hz are possible, provided the connected devices support Display Stream Compression.
The directional cable connects the HDMI source to the display. No external power supply is required. It can be used for home cinema, gaming, streaming, presentations, digital signage, and video and graphics installations.
Gold-plated contacts support a durable, corrosion-resistant connection. The cable diameter of just 4.8 mm makes routing easier. Metal connectors, aramid protection and a PVC jacket provide a robust design.
Product type: Active optical HDMI cable (AOC)
HDMI specification: HDMI 2.1
Cable construction: Hybrid cable with 4 optical fibers and 7 solid copper strands
Connectors: HDMI male to HDMI male
Signal direction: HDMI source connector to HDMI display connector
Maximum data transfer rate: 48 Gb/s
Data transfer rate per channel: 12 Gb/s
Maximum resolution without DSC: 8K at 30 Hz
4K support: 4K at 120 Hz, 4:4:4, 8/10-bit
Resolutions with DSC: Up to 8K at 120 Hz and 10K at 100 Hz if the source and display support DSC
Supported features: 3D, HDCP, EDID, CEC, DDC, Dynamic HDR and ARC
eARC: Supported up to a maximum cable length of 75 m
Contacts: Gold-plated
Connector design: Metal connectors
Cable protection: Aramid-protected
Cable jacket: PVC
Cable diameter: 4.8 mm
External power supply: Not required
Operating temperature: 0-50 °C
Storage temperature: -20-70 °C
Color: Black
AOC technology for long cable runs: The HDMI fiber optic cable combines 4 optical fibers with 7 solid copper strands, enabling high-performance audio and video connections over long distances.
Extensive HDMI features: Use Dynamic HDR, ARC, 3D, HDCP, EDID, CEC and DDC for versatile AV installations. eARC is supported for cable lengths up to 75 m.
Compact and robust design: Metal connectors, aramid protection and a PVC jacket support a durable installation. The cable diameter of just 4.8 mm makes routing easier.
High resolutions with DSC: With Display Stream Compression, the 8K HDMI cable supports up to 8K at 120 Hz and 10K at 100 Hz, provided the connected devices support this feature.
The active optical HDMI cable combines optical fiber and copper conductors in a hybrid design. This allows high-resolution audio and video signals to travel over long distances. The AOC cable suits connections between HDMI sources and displays that are far apart. Optical signal transmission is less susceptible to electromagnetic interference than an all-copper connection.
With 8K at 60 Hz and 4K at 120 Hz, the cable suits high-resolution images and high frame rates. The maximum data transfer rate is 48 Gb/s. With DSC, resolutions up to 8K at 120 Hz and 10K at 100 Hz are possible, provided the connected devices support Display Stream Compression.
The directional cable connects the HDMI source to the display. No external power supply is required. It can be used for home cinema, gaming, streaming, presentations, digital signage, and video and graphics installations.
Gold-plated contacts support a durable, corrosion-resistant connection. The cable diameter of just 4.8 mm makes routing easier. Metal connectors, aramid protection and a PVC jacket provide a robust design.
Product type: Active optical HDMI cable (AOC)
HDMI specification: HDMI 2.1
Cable construction: Hybrid cable with 4 optical fibers and 7 solid copper strands
Connectors: HDMI male to HDMI male
Signal direction: HDMI source connector to HDMI display connector
Maximum data transfer rate: 48 Gb/s
Data transfer rate per channel: 12 Gb/s
Maximum resolution without DSC: 8K at 30 Hz
4K support: 4K at 120 Hz, 4:4:4, 8/10-bit
Resolutions with DSC: Up to 8K at 120 Hz and 10K at 100 Hz if the source and display support DSC
Supported features: 3D, HDCP, EDID, CEC, DDC, Dynamic HDR and ARC
eARC: Supported up to a maximum cable length of 75 m
Contacts: Gold-plated
Connector design: Metal connectors
Cable protection: Aramid-protected
Cable jacket: PVC
Cable diameter: 4.8 mm
External power supply: Not required
Operating temperature: 0-50 °C
Storage temperature: -20-70 °C
Color: Black
| Features | |
| Cable length | 80 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.1 |
| Supported graphics resolutions | 7680 x 4320 |
| Supported video modes | 2160p, 4320p |
| Data transfer rate | 48 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Connector contacts plating | Gold |
| Cable jacket material | Thermoplastic polyurethane (TPU) |
| 3D | |
| Audio Return Channel (ARC) | |
| HDCP | |
| High Dynamic Range (HDR) supported | |
| Unidirectional | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
| Depth | 80000 mm |
| Height | 10 mm |
| Width | 20 mm |
| Dimensions (WxDxH) | 20 x 80000 x 10 mm |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 205 mm |
| Package height | 160 mm |
| Package weight | 2.35 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Technical data | |
| Weight | 2.348kg |
| Article length | 8000.00cm |
| Variant | AOC cable |
| Packaging volume | 0.0068m³ |
| Special feature | Aramid reinforced |
| Side A | HDMI A plug |
| Diameter | AWG 26 |
| Length packaging | 0.205m |
| Net weight | 1.750kg |
| Colour | Black |
| Design | Round cable slim |
| Article width | 2.00cm |
| Signal | Audio/Video |
| Width packaging | 0.205m |
| Length | 80m |
| Outer diameter | 5.0mm |
| Article height | 1.00cm |
| Side B | HDMI A plug |
| Height packaging | 0.160m |
| Storage temperature | -20 to +70°C |
| UL | |
| Active cable | |
| Gold plated contacts | |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 1.75 kg |
| Package volume | 6800 cm³ |
