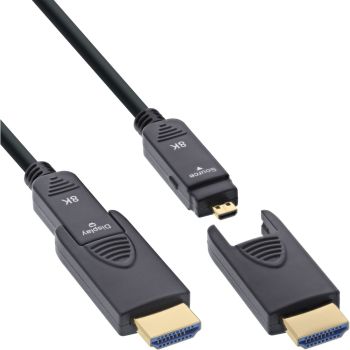

InLine® HDMI AOC cable, Ultra High Speed 2.1, detachable, 8K, 30m content_copy

Ultra High Speed HDMI 2.1: For 8K at 60 Hz or 4K at 120 Hz with full HDR and eARC support.
Removable connectors: HDMI-A and HDMI-D can be removed without tools for tight cable routing.
Flexible routing: Ultra-slim, aramid-protected cable design with a diameter of only 4.8 mm.
Maximum compatibility: 4-in-1 solution – can be used in various connection variants (A/A, D/D, A/D, D/A).
Reliable signal transmission: Hybrid cable with fibre optic and copper structure, optimally shielded against interference.
Experience the full power of HDMI 2.1 technology with the InLine® HDMI AOC cable. It supports resolutions up to 8K at 60 Hz or 4K at 120 Hz – including Dynamic HDR, eARC, CEC, HDCP and more. Thanks to its innovative 4-in-1 solution with detachable HDMI A and HDMI D connectors, it is versatile and particularly easy to install – even in tight cable routes.
The cable combines fibre optics for loss-free signal transmission with copper strands for control signals – ideal for home cinema, gaming or professional AV installations. The aramid-protected, slim design with a diameter of only 4.8 mm offers maximum flexibility. Gold-plated contacts ensure durability, reliable connection and protection against corrosion.
Whether for streaming, presentations or immersive audio and video worlds – the InLine® HDMI AOC cable is the premium solution for anyone who values uncompromising quality.
HDMI version: HDMI 2.1 (Ultra High Speed)
Hybrid: 4 fibre optic conductors + 7 copper conductors
Cable diameter: 4.8 mm
Temperature range: 0 °C to +50 °C (operation), -20 °C to +70 °C (storage)
Connectors: HDMI-A & HDMI-D, removable without tools
Compatible with 3D, EDID, DDC
No additional power supply required

Certificates
Compliance certificates	TÜV mark, CE
Features
Cable length	10 m
Connector 1	HDMI Type-A/HDMI Type-D
Connector 2	HDMI Type-A/HDMI Type-D
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI version	2.1
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Dolby technologies	Dolby TrueHD, DTS-HD
Data transfer rate	48 Gbit/s
AWG wire size	30
Connector contacts plating	Gold
Cable material	Fibre optic/Copper
Cable jacket material	Nylon/Polyvinyl Chloride (PVC)
3D
Audio Return Channel (ARC)
HDCP
High Dynamic Range (HDR) supported
Extended display identification data (EDID)
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Depth	30000 mm
Height	10 mm
Width	20 mm
Dimensions (WxDxH)	20 x 30000 x 10 mm
Packaging data
Package width	210 mm
Package depth	220 mm
Package height	70 mm
Package weight	860 g
Package type	Box
Quantity per pack	1 pc(s)
Technical data
Colour	Black
Packaging volume	0.0001m³
Net weight	0.752kg
Diameter	AWG 30
Outer diameter	4.8mm
Article width	2.00cm
Side B	HDMI A plug
Width packaging	0.210m
Signal	Audio/Video
Length packaging	0.220m
Article height	1.00cm
Length	30m
Storage temperature	-20 to +70°C
Side A	HDMI A plug
Weight	0.860kg
Article length	3000.00cm
Variant	AOC cable
Height packaging	0.070m
UL
Gold plated contacts
Active cable
Weight & dimensions
Cable diameter	4.8 mm
Weight	752 g
Package volume	100 cm³

---
