INLINE HDMI cable Ultra High Speed HDMI cable 8K4K male male black gold 1m
|
12,63 EUR |
|
|
( 15,03 EUR incl. VAT ) ≈ £10.57 | ≈ $14.13 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1480481 |
| Mfg Part No: | 17901P |
| UPC/EAN: | 4043718285242 |
| Weight: | 0.107 kg |
Product information for Inline 17901P:

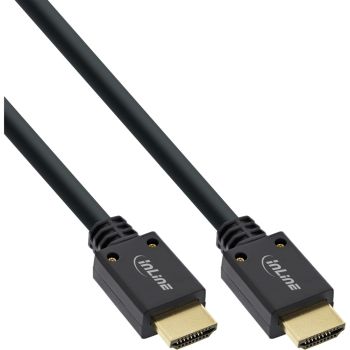

InLine® Ultra High Speed HDMI Cable M/M 8K4K gold platedHDMI 2.1 Cable
Connections: HDMI-A plug to HDMI-A plug
Robust full metal plugs
Wire cross section: 28 AWG data cable / 28 AWG power cable
Cable diameter: approx. 7mm
Full copper conductor
Shielding: Triple shielded cable
Contacts: Gold-plated
Transmission of audio and video signals
Data transfer rate up to 48 Gbps
Resolution up to: 7680x4320 @60Hz*, 5120x2880 @120Hz*, 3840x2160 @240 Hz*
3D support: Up to 3840x2160 @120 Hz*
Supports color sampling in 4:4:4, 4:2:2 and 4:2:0 formats
Supports Display Stream Compression 1.2 (DSC), Dynamic HDR, Variable Refresh Rate (VRR), Enhanced Audio Return Channel (eARC)
up to 32 audio channels for speakers
up to 1536 kHz audio sampling rate
Supports Dolby® TrueHD and DTS-HD Master Audio™
Supports dynamic adjustment of lip sync in case of picture/sound delays
Supports CEC 2.0 control commands
Colour: black / gold
Connections: HDMI-A plug to HDMI-A plug
Robust full metal plugs
Wire cross section: 28 AWG data cable / 28 AWG power cable
Cable diameter: approx. 7mm
Full copper conductor
Shielding: Triple shielded cable
Contacts: Gold-plated
Transmission of audio and video signals
Data transfer rate up to 48 Gbps
Resolution up to: 7680x4320 @60Hz*, 5120x2880 @120Hz*, 3840x2160 @240 Hz*
3D support: Up to 3840x2160 @120 Hz*
Supports color sampling in 4:4:4, 4:2:2 and 4:2:0 formats
Supports Display Stream Compression 1.2 (DSC), Dynamic HDR, Variable Refresh Rate (VRR), Enhanced Audio Return Channel (eARC)
up to 32 audio channels for speakers
up to 1536 kHz audio sampling rate
Supports Dolby® TrueHD and DTS-HD Master Audio™
Supports dynamic adjustment of lip sync in case of picture/sound delays
Supports CEC 2.0 control commands
Colour: black / gold
- depending on system and connected hardware HDMI 2.1:
This InLine HDMI 2.1 specification cable supports 8K video transmission at up to 60 frames per second or 4K at up to 120 frames per second. The even higher resolution enables, among other things, smoother gameplay and the reduction of motion blur, faster transmission of frames and lower latency as well as seamless switching between different video sources. The Enhanced Audio Return Channel (eARC) supports the transmission of lossless high-definition audio. This makes the InLine HDMI cable particularly suitable for home cinema systems, professional video editing studios or digital signage systems to reproduce content with outstanding detail and clarity.
Home cinema: Connect your 8K home cinema components such as projectors, TVs, AV receivers and streaming boxes with the InLine HDMI cable and benefit not only from a higher resolution and more bandwidth, but also from uncompressed, high-resolution audio formats such as Dolby TrueHD and DTS-HD Master Audio for an immersive visual and acoustic cinema experience within your own four walls.
Gaming: For gaming enthusiasts, the InLine cable offers the opportunity to experience games in impressive 8K resolution with incredibly clear graphics and smoother frame rates. This is particularly relevant for state-of-the-art PC gaming setups or gaming consoles such as the PlayStation 5 or Xbox Series X.
Business: In professional production environments, such as film or graphic design studios, the InLine HDMI cable can be used to edit and play back high-resolution video and image content in real time. This enables precise colour reproduction and detail for demanding production requirements. In business environments, the InLine HDMI cable can be used to transmit presentations, graphics and multimedia content in 8K resolution to provide an impressive and high-quality visual display at conferences, meetings or events.
Streaming: Users can enjoy content from 8K-capable streaming devices such as streaming players, IPTV receivers or media PCs in impressive 8K quality on their screens with the InLine HDMI cable.
Gold-plated contacts
The gold-plated plugs improve the conductivity, durability and corrosion resistance of the InLine HDMI cable. The risk of oxidation or corrosion is significantly reduced. This increases the long-term reliability of the connection, e.g. even in environments with higher humidity. Gold-plated contacts adapt better to the connections and are less susceptible to abrasion and damage when plugging and unplugging. In addition, the higher conductivity can improve signal transmission and therefore picture and sound quality, especially over longer cable runs.
| Features | |
| Cable length | 1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.1 |
| Supported graphics resolutions | 7680 x 4320 |
| Supported video modes | 4320p |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Data transfer rate | 48 Gbit/s |
| AWG wire size | 28/30 |
| Connector contacts plating | Gold |
| Cable material | Copper |
| 3D | |
| Unidirectional | |
| Other features | |
| Depth | 1000 mm |
| Height | 10 mm |
| Width | 19 mm |
| Dimensions (WxDxH) | 19 x 1000 x 10 mm |
| Packaging data | |
| Package width | 92 mm |
| Package depth | 181 mm |
| Package height | 40 mm |
| Package weight | 107 g |
| Quantity per pack | 1 pc(s) |
| Technical data | |
| Length packaging | 0.181m |
| Article height | 1.00cm |
| Signal | Audio/Video |
| Operation temperature | -10 - 60°C |
| Maximum display resolution | 4096x2160 @30Hz |
| Net weight | 0.079kg |
| Diameter | AWG 28 |
| Height packaging | 0.040m |
| Weight | 0.107kg |
| Width packaging | 0.092m |
| Article length | 100.00cm |
| Side B | HDMI A plug |
| Packaging volume | 0.0007m³ |
| Storage temperature | -20 - 70°C |
| Side A | HDMI A plug |
| Outer diameter | 7.0mm |
| Article width | 1.90cm |
| Colour | Black |
| Shielding | Triple shielding |
| Gold plated contacts | |
| Active cable | |
| UL | |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Weight | 79 g |
| Package volume | 700 cm³ |
