InLine® HDMI Adapter Type A female / A female gold plated with flange, 4K2K
|
5,07 EUR |
|||||||||||
|
( 6,03 EUR incl. VAT ) ≈ £4.24 | ≈ $5.67 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193584 | ||||||||||
| Mfg Part No: | 17600N | ||||||||||
| UPC/EAN: | 4043718197910 | ||||||||||
| Weight: | 0.016 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

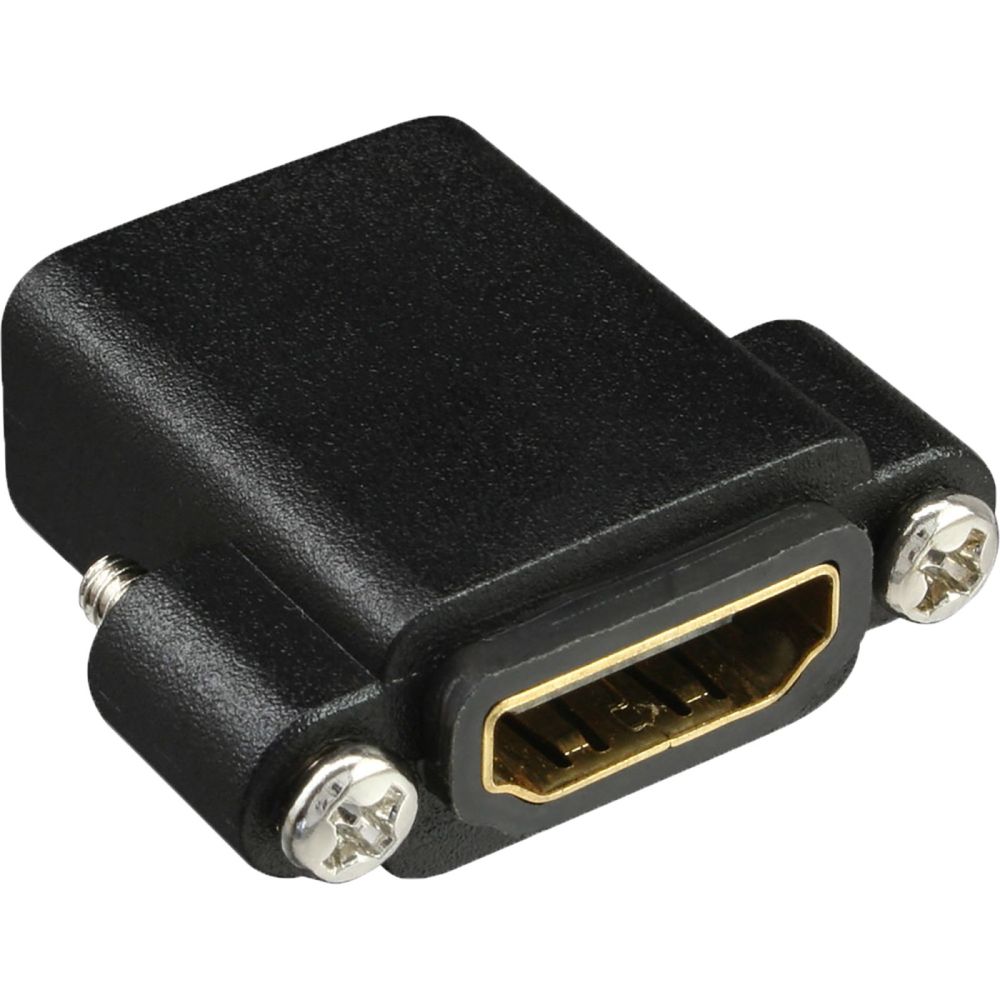

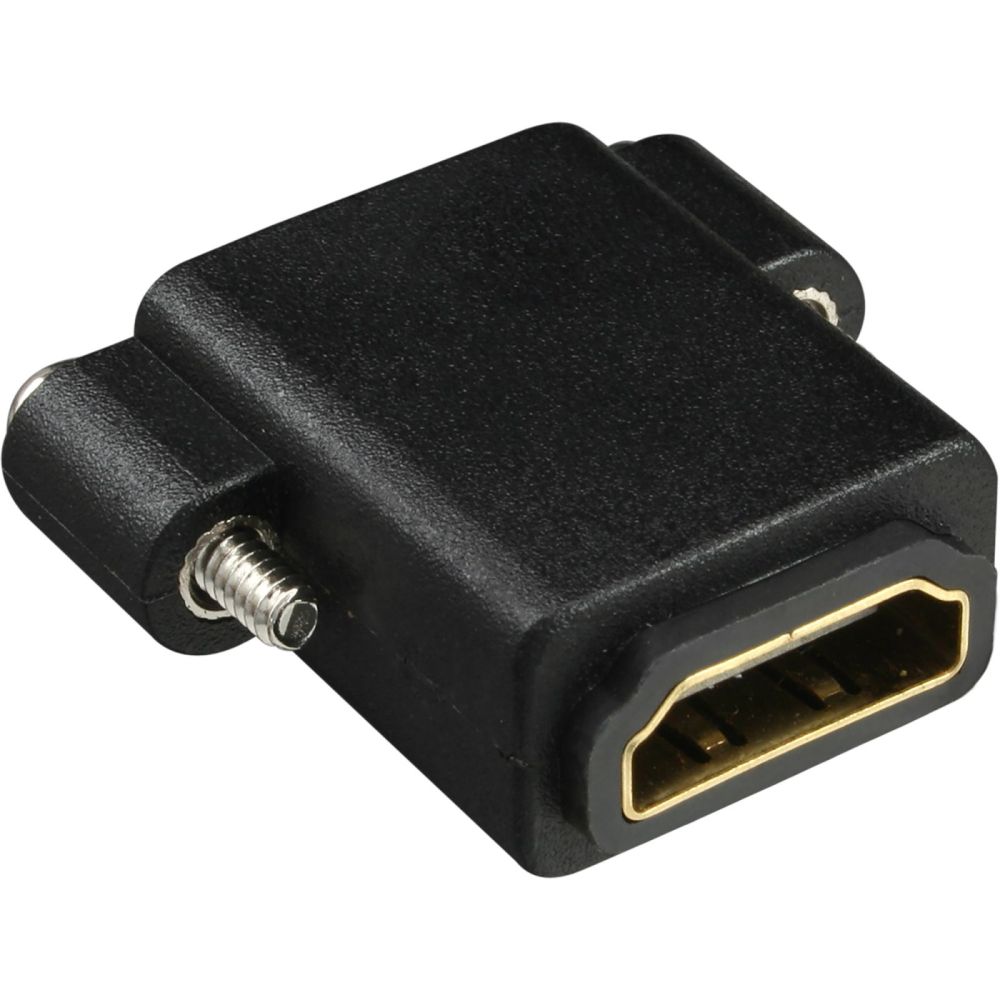

Product information for Inline 17600N:
UHD video transmission: 4K2K @30 Hz (3840 x 2160) compatible for clear display in A/V setups and digital signage.
Direct pass-through: 2x HDMI A sockets with 1:1 pinout for a continuous connection without an adapter cable.
High-quality contacting: Gold-plated contacts for a high-quality digital connection.
With this HDMI panel-mount adapter, you route an HDMI port cleanly to the front of patch panels, control panels, or integrated systems. The HDMI A sockets on both sides pass the signal through 1:1, allowing you to directly couple two HDMI cables and connect devices without additional electronics.
It proves itself in professional IT and A/V environments in on-site installations and service deployments, from the conference room and auditorium to airports, stadiums, and existing digital signage infrastructures, where a robust, maintenance-friendly front interface is required.
Connection: 2x HDMI A sockets, 19-pin
Mounting: panel mounting with threads
Dimensions: 8 x 18 mm
Hole spacing: approx. 25 mm
Screws: 2 x approx. 15 mm, #4-40 thread, included
Resolution: 4K2K @30 Hz (3840 x 2160) compatible
Pinout: 1:1 (straight)
Contacts: gold-plated

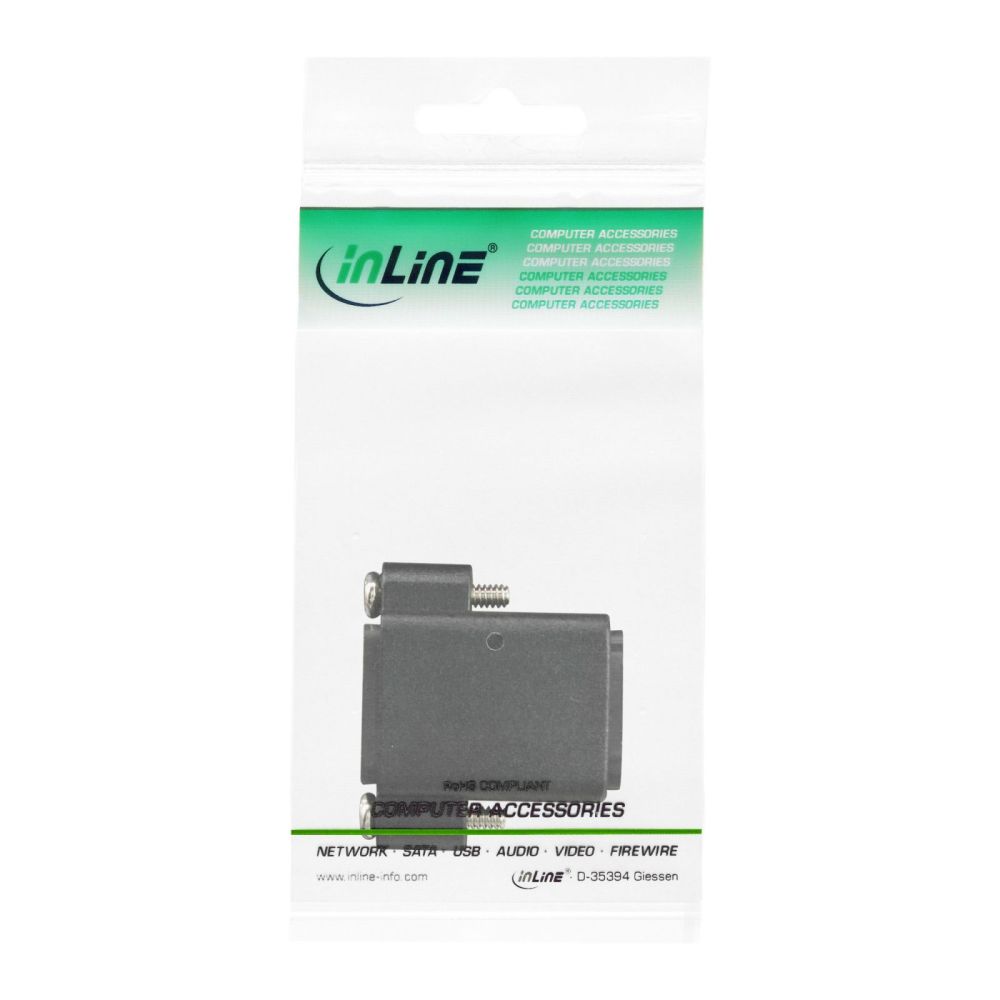

Packaging: resealable blister PE packaging with EAN code
| Logistics data | |
| Package volume | 100 cm³ |
| Packaging data | |
| Package width | 32 mm |
| Package depth | 27 mm |
| Package height | 12 mm |
| Package weight | 16 g |
| Performance | |
| Product colour | Black |
| Ports & interfaces | |
| Connector 1 | HDMI A female |
| Connector 2 | HDMI A |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Technical data | |
| Net weight | 0.015kg |
| Side A | HDMI A female |
| Variant | Threaded installation version |
| Assignment | 1:1 |
| Length packaging | 0.027m |
| Side B | HDMI A female |
| Height packaging | 0.012m |
| Packaging volume | 0.0001m³ |
| Signal | Audio/Video |
| Width packaging | 0.032m |
| Supported display resolution | 4K2K @ 30 Hz |
| Weight | 0.016kg |
| Type | Gold-plated contacts |
| Audio | |
| Weight & dimensions | |
| Weight | 15 g |
