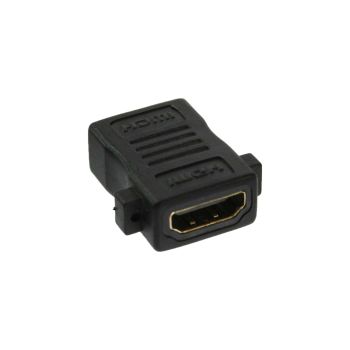

InLine® HDMI Installation Adapter HDMI A female / female gold plated, 4K2K content_copy

HDMI flush-mount adapter for clean 4K connections in media and AV installationsEasy integration into flush-mount environments: The HDMI adapter has been designed for installation in patch panels, control panels and custom connection panels, enabling the professional provision of HDMI connections in media and AV installations as well as other permanently integrated applications.
Direct HDMI connection without signal routing: The HDMI 19-pin Type A female to HDMI 19-pin Type A female version with straight 1:1 pin assignment supports the direct transmission of digital audio and video signals between compatible devices and ensures straightforward integration into existing systems.
Supports high-resolution 4K2K content: The installation adapter is compatible with resolutions up to 3840 x 2160 at 30 Hz and is suitable for applications involving high-resolution image content in conference rooms, presentation environments, digital signage systems and multimedia installations.
Gold-plated contacts for high-quality connections: The gold-plated contact surfaces support reliable digital signal transmission and contribute to a stable connection between HDMI devices in both professional and domestic installations.
Compact design for flexible installation concepts: With dimensions of approx. 8 x 18 mm and a hole spacing of approx. 25 mm, the adapter can be integrated into various installation solutions in a space-saving manner and supports neat and organised cabling of HDMI connections.
This HDMI flush-mount adapter enables the permanent integration of an HDMI connection into patch panels, control panels and other installation environments. Designed as an HDMI 19-pin Type A socket to HDMI 19-pin Type A socket, it provides an easily accessible HDMI interface for a wide variety of audio and video applications. The straight 1:1 pin assignment supports the direct transmission of digital signals between compatible devices. This makes the adapter suitable for media installations, presentation systems, conference rooms, digital signage applications and other environments where HDMI connections are to be permanently integrated. With support for resolutions up to 3840 x 2160 at 30 Hz, the adapter is compatible with high-resolution video content. The gold-plated contacts ensure a high-quality digital connection and contribute to reliable signal transmission. The compact design facilitates integration into existing installation concepts. This allows HDMI connections to be provided in a neat and orderly manner within media walls, patch panels or technical installations. The adapter is suitable for both professional installations and home entertainment applications where a permanently integrated HDMI connection is required.
Adapter type: HDMI 19-pin Type A female to HDMI 19-pin Type A female
Panel installation
Pin assignment: 1:1
Compatible with 4K2K @ 30 Hz
Resolution: 3840 x 2160
Gold-plated contacts
Dimensions: approx. 8 x 18 mm
Hole spacing: approx. 25 mm

Logistics data
Package volume	100 cm³
Other features
Dimensions (WxDxH)	27 x 30 x 10 mm
Packaging data
Package width	70 mm
Package depth	123 mm
Package height	12 mm
Package weight	12 g
Performance
Product colour	Black
Ports & interfaces
Connector 1	HDMI A female
Connector 2	HDMI A
Connector 1 gender	Female
Connector 2 gender	Female
Technical data
Supported display resolution	4K2K @ 30 Hz
Article width	2.70cm
Weight	0.012kg
Variant	Installation version with screw holes
Article length	3.00cm
Signal	Audio/Video
Height packaging	0.012m
Side A	HDMI A female
Length packaging	0.123m
Packaging volume	0.0001m³
Net weight	0.010kg
Width packaging	0.070m
Type	Gold-plated contacts
Article height	1.00cm
Side B	HDMI A female
Audio
Weight & dimensions
Width	27 mm
Depth	30 mm
Height	10 mm
Weight	10 g

---
