InLine® HDMI Active cable, HDMI-High Speed with Ethernet, M/M, 20m content_copy

InLine® HDMI Active cable, HDMI-High Speed with Ethernet, M/M, sheath smoothHigh-Speed-HDMI-Cable with Ethernet (network)
Gold plated contacts and shells
high-density triple-layer shielding for best quality
twisted pair cable construction for optimum signal quality
transmits HD video and pure audio signals
Suppress EMI interference, make the image vivid
HDMI Ethernet Channel: Adds highspeed networking in addition to an HDMI connection so that users can use the full advantage of their IP-enabled devices without a separate Netztwerk cables are required (if the devices support HDMI with Ethernet)
Audio Return Channel (ARC): Allows an HDMI-connected TV with a built-in TV tuner to send audio data by upstream to a surround audio system, whereby a separate audio cable is no longer required
3D over HDMI: Defines input and output protocols for major 3D video formats, paving the way for true 3D gaming and 3D home theater applications
4K x 2K Video Support: Enables video resolutions far beyond 1080p, supporting next-generation displays of (UHD 2.160p support)
additional color spaces: support for additional color models used in digital photography and computer graphics
for the following applications: HDTV, PC / Notebook, XBOX, Playstation, Blu-ray DVD/HD-DVD, DC/DV, Projector
Compatible with all previous HDMI cable Varians
with HDMI Ethernet Audio Control (HEAC) and 3D support
resolutions up to 4K @ 50/60Hz, (2160p), 4-times the resolution of FullHD
up to 32 audio channels for a multi-dimensional immersive audio experience
up to 1536kHz audio sample frequency for highest signal integrity
support simultaneous delivery of dual video streams to display content for multiple users on the same screen
simultaneous delivery of multi-stream audio to multiple users (up to 4) is supported
support widescreen displays such as the 21:9 format
dynamic synchronization of video and audio streams
CEC commands for advanced control and control of consumer electronics devices will support
black cable, black plug
molded plugs

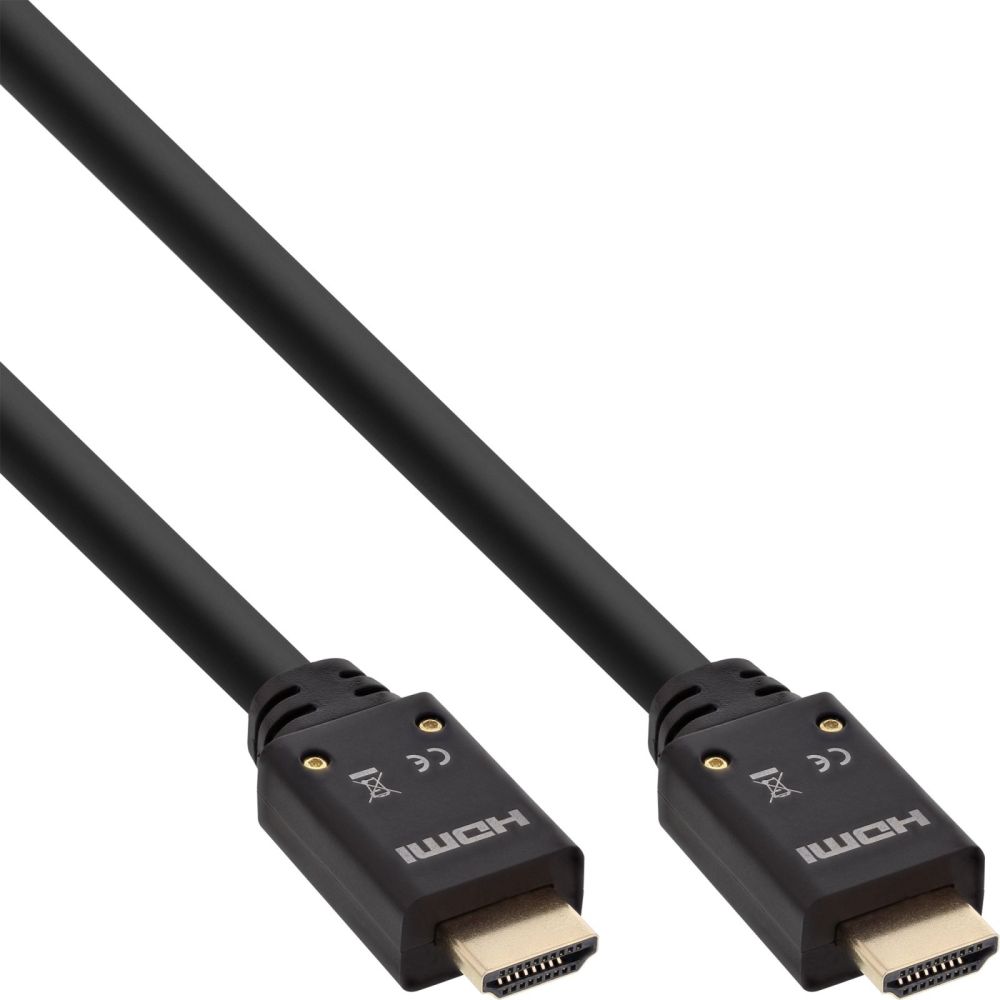

HDMI A male plug to HDMI A male plug
HDMI 2.0b:
This InLine HDMI cable of specification 2.0b supports Ultra High Definition (UHD) and 4K video transmission at up to 60 frames per second. This means better picture quality with a wider colour palette and greater contrast range compared to the previous version. This cable is therefore particularly suitable for the playback of high-resolution audio and video content with fast movements. The InLine HDMI cable reliably transmits the signal from suitable HDMI sources such as cable or satellite receivers, streaming devices, games consoles, computers and gaming PCs, AV receivers and cameras to suitable HDMI output devices such as 4k projectors, UHD smart TVs and 4k gaming monitors.
Streaming: Enjoy content from streaming services such as Sky, Dazn, Netflix, Amazon Prime Video or Disney+ via streaming players such as Roku, Amazon Fire TV or Chromecast in 4k@60Hz. You benefit from smoother playback and fewer blurring effects, especially when watching sports broadcasts or action-packed videos.
Gaming: Connect your gaming PC or games consoles such as Playstation 4 Pro, Xbox One S, Xbox or One X to your TV or gaming monitor for a smoother and more responsive gaming experience in 4k@60Hz. You can enjoy an impressive 3D experience via 3D home cinema systems, gaming setups or special applications.
Business: This HDMI cable from InLine is suitable for professional video editing studios, multimedia setups or professional audio/video installations. For live streams, working with computer-aided design (CAD) or animations, a higher refresh rate can improve the accuracy and fluidity of the display.
Gold-plated contacts
The gold-plated plugs improve the conductivity, durability and corrosion resistance of the InLine HDMI cable. The risk of oxidation or corrosion is significantly reduced. This increases the long-term reliability of the connection, e.g. even in environments with higher humidity. Gold-plated contacts adapt better to the connections and are less susceptible to abrasion and damage when plugging and unplugging. In addition, the higher conductivity can improve signal transmission and therefore picture and sound quality, especially over longer cable runs.

Features
Cable length	20 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI version	2.0
Supported graphics resolutions	4096 x 2160
Data transfer rate	18 Gbit/s
Maximum refresh rate	60 Hz
Connector contacts plating	Gold
Bend radius (min)	4.3 cm
Colour sampling	4:4:4, 4:2:2
Audio Return Channel (ARC)
HDMI Ethernet channel
Unidirectional
Other features
Depth	20000 mm
Height	13 mm
Width	20 mm
Dimensions (WxDxH)	20 x 20000 x 13 mm
Packaging data
Package width	320 mm
Package depth	320 mm
Package height	77 mm
Package weight	1.74 kg
Technical data
Supported color formats	24bit @ 4:4:4 or RGB, HDR @ 4:2:2
Complies with HDMI standard	HDMI 2.0b
Storage temperature	-20 - 70°C
Signal	Audio/Video
Article length	2000.00cm
Maximum display resolution	4096x2160 @60Hz
Weight	1.736kg
Packaging volume	0.0079m³
Article width	2.00cm
Length	20m
Minimum bending radius	43mm
Outer diameter	7.4mm
Width packaging	0.320m
Side B	HDMI A plug
Maximum HDTV resolution	3840x2160 @60Hz
Operation temperature	-10 - 60°C
Side A	HDMI A plug
Height packaging	0.077m
Data transmission rate	18Gb/s
Diameter	AWG 26
Net weight	1.486kg
Length packaging	0.320m
Article height	1.30cm
Colour	Black
Type	HDMI 2.0
UL
Gold plated contacts

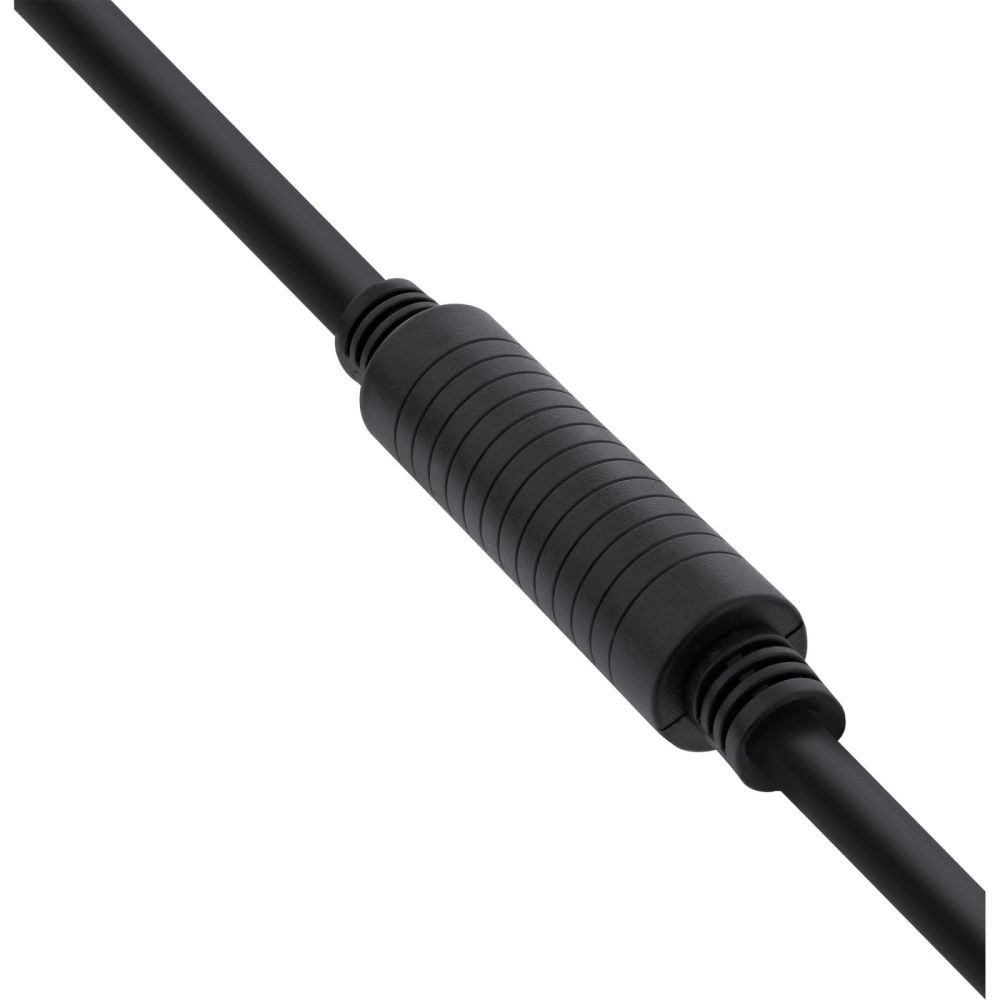

Active cable
Weight & dimensions
Weight	1.49 kg
Package volume	7900 cm³

---
