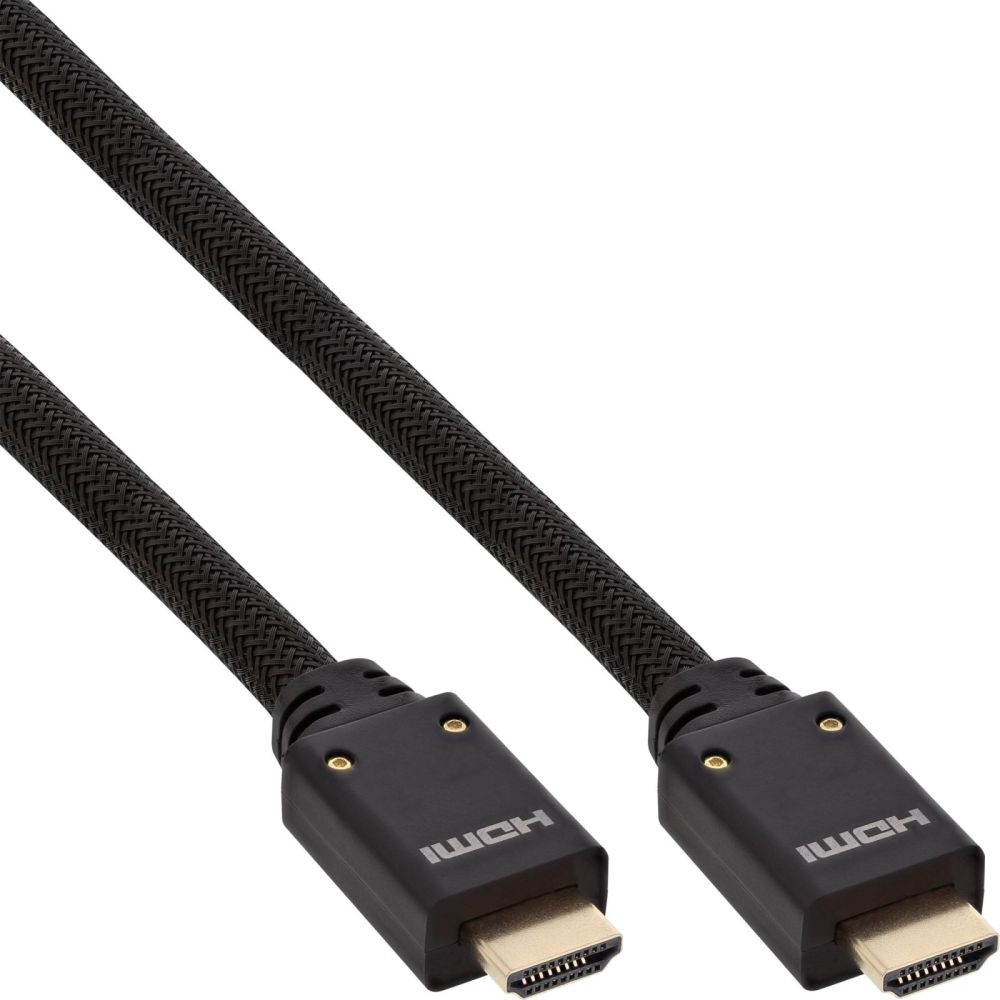

INLINE HDMI HighSpeed Cable with Ethernet 4K2K active M/M gold platet contacts with build-in amplifier black 10m content_copy

Active HDMI High Speed cable with Ethernet, 4K 60 Hz, for stable signal transmission over long distancesReliable signal transmission over long distances: Active HDMI cable supports stable transmission even with cable lengths of up to 25 m
4K support with high image quality: Transmits video and audio signals up to 4K @ 60 Hz for detailed and smooth display
Advanced HDMI features: Supports Ethernet Channel, ARC and 3D for versatile applications in modern AV environments
High-quality construction: Gold-plated contacts, moulded connectors and nylon braiding ensure durable and robust connections
Optimised signal quality: Three-layer shielding and twisted-pair construction reduce interference and improve transmission quality
This active HDMI cable enables reliable signal transmission even over longer distances. It is designed for applications requiring high resolutions and stable connections. With support for up to 4K at 60 Hz, the cable is suitable for modern audio and video applications. Thanks to its active design, the signal remains stable throughout the entire length of the cable. This is particularly advantageous over longer distances.
The cable supports the HDMI Ethernet Channel, allowing network connections via HDMI provided the connected devices support this function. The Audio Return Channel is also supported. This enables a television to send audio signals back to an audio system via the same cable. 3D content can also be transmitted, making the cable suitable for such applications.
The high-quality construction with gold-plated contacts and moulded connectors ensures a reliable connection. The nylon braided sheath increases mechanical stability and protects the cable during daily use. The multi-layer shielding and twisted-pair construction help to reduce interference and improve signal quality. The cable is backwards compatible with existing HDMI standards and is suitable for use with televisions, monitors, projectors and various source devices.
Cable type: HDMI active cable
HDMI standard: HDMI 2.0b
Resolution: up to 4K @ 50/60 Hz (2160p)
Connector type: HDMI Type A to HDMI Type A
Configuration: male to male
Features: Ethernet Channel, ARC, 3D, CEC
Audio: up to 32 channels, up to 1536 kHz sample rate
Shielding: three-layer shielding
Construction: twisted pair
Contacts: gold-plated
Connectors: moulded
Sheath: nylon braiding
Colour: black

Features
Cable length	10 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI version	2.0
Supported graphics resolutions	4096 x 2160
Data transfer rate	18 Gbit/s
Maximum refresh rate	60 Hz
Connector contacts plating	Gold
Bend radius (min)	4.3 cm
Colour sampling	4:4:4, 4:2:2
3D
Audio Return Channel (ARC)
Unidirectional
Other features
Depth	10000 mm
Height	15 mm
Width	21 mm
Dimensions (WxDxH)	21 x 10000 x 15 mm
Packaging data
Package width	260 mm
Package depth	260 mm
Package height	65 mm
Package weight	1.05 kg
Technical data
Weight	1.048kg
Complies with HDMI standard	HDMI 2.0b
Storage temperature	-20 - 70°C
Side A	HDMI A plug
Colour	Black
Type	HDMI 2.0
Maximum HDTV resolution	3840x2160 @60Hz
Operation temperature	-10 - 60°C
Height packaging	0.065m
Net weight	0.862kg
Diameter	AWG 26
Data transmission rate	18Gb/s
Length	10m
Article length	1000.00cm
Maximum display resolution	4096x2160 @60Hz
Minimum bending radius	43mm
Outer diameter	7.4mm
Article width	2.10cm
Side B	HDMI A plug
Supported color formats	24bit @ 4:4:4 or RGB, HDR @ 4:2:2
Packaging volume	0.0044m³
Width packaging	0.260m
Signal	Audio/Video
Length packaging	0.260m
Article height	1.50cm
Gold plated contacts
Active cable
UL
Weight & dimensions
Weight	862 g
Package volume	4400 cm³

---
