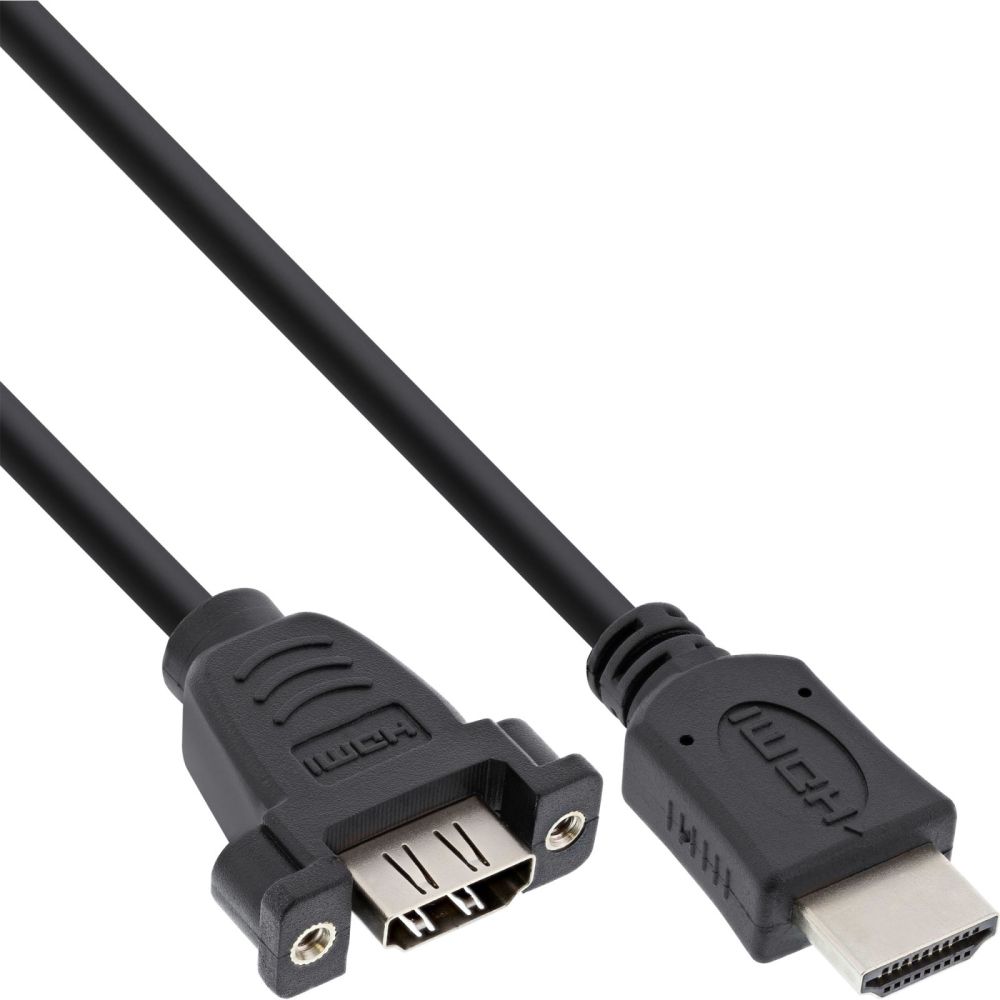

InLine® HDMI 4K60Hz Adapter Type A male / A female with flange 0.6m
|
6,79 EUR |
|||||||||||
|
( 8,08 EUR incl. VAT ) ≈ £5.68 | ≈ $7.60 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193407 | ||||||||||
| Mfg Part No: | 17500B | ||||||||||
| UPC/EAN: | 4043718261345 | ||||||||||
| Weight: | 0.063 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 17500B:
Protects device ports: Fixed feed-through reduces strain and mating cycles directly on the TV, monitor, or source device.
4K/60 transmission: Supports 4096x2160@60 Hz at 4:2:0, 8-bit for high-resolution video signals.
Simple cable management: 0.6 m lead simplifies routing inside the enclosure.
The adapter cable brings an HDMI connection to the front or rear of a chassis or panel. Internally, the HDMI A plug connects to the source, externally an HDMI A panel-mount socket is available. The 1:1 pinout enables transparent signal routing up to 4K at 60 Hz (4:2:0, 8-bit) without additional active components.
In professional IT environments, AV racks, and conference rooms, the fixed feed-through facilitates on-site installations and service work. Ports remain easily accessible, mechanically relieved, and integrate reliably into existing infrastructures of companies and public institutions.
Connection: HDMI A plug to HDMI A panel-mount socket
Length: 0.6 m
Supported resolution: 4096x2160@60 Hz, 4:2:0, 8-bit
Pinout: 1:1
Mounting cutout: approx. 8 x 18 mm
Hole spacing: approx. 25 mm
Screws: #4-40, thread length approx. 15 mm
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.6 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 4096 x 2160 pixels |
| Supported video modes | 1080p, 2160p |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Colour depth | 8 bit |
| Ferrite bead | |
| Other features | |
| Cable colour | Black |

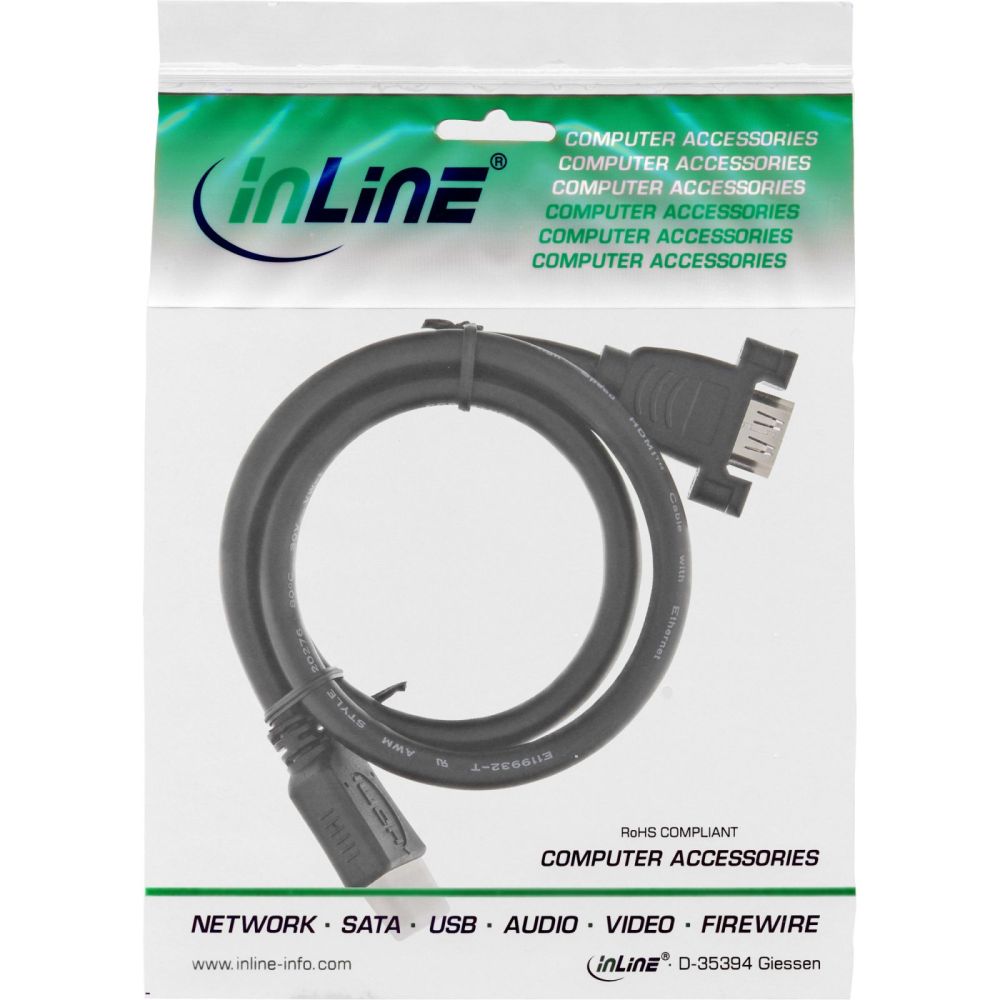

| Packaging data | |
| Package width | 90 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 63 g |
| Package volume | 100 cm³ |
| Technical data | |
| Net weight | 0.052kg |
| Side A | HDMI A plug |
| Length packaging | 0.095m |
| Assignment | 1:1 |
| Compatibility HDMI | HDMI 2.0 (3D, Deep Color) HDCP 2.2 |
| Side B | HDMI A female |
| Variant | Threaded installation version |
| Width packaging | 0.090m |
| Height packaging | 0.025m |
| Supported display resolution | 4K @ 60 Hz |
| UL E-number | E119932-T |
| Weight | 0.063kg |
| Colour | Black |
| Signal | Audio/Video |
| Packaging volume | 0.0001m³ |
| UL | |
| Audio | |
| Weight & dimensions | |
| Weight | 52 g |
