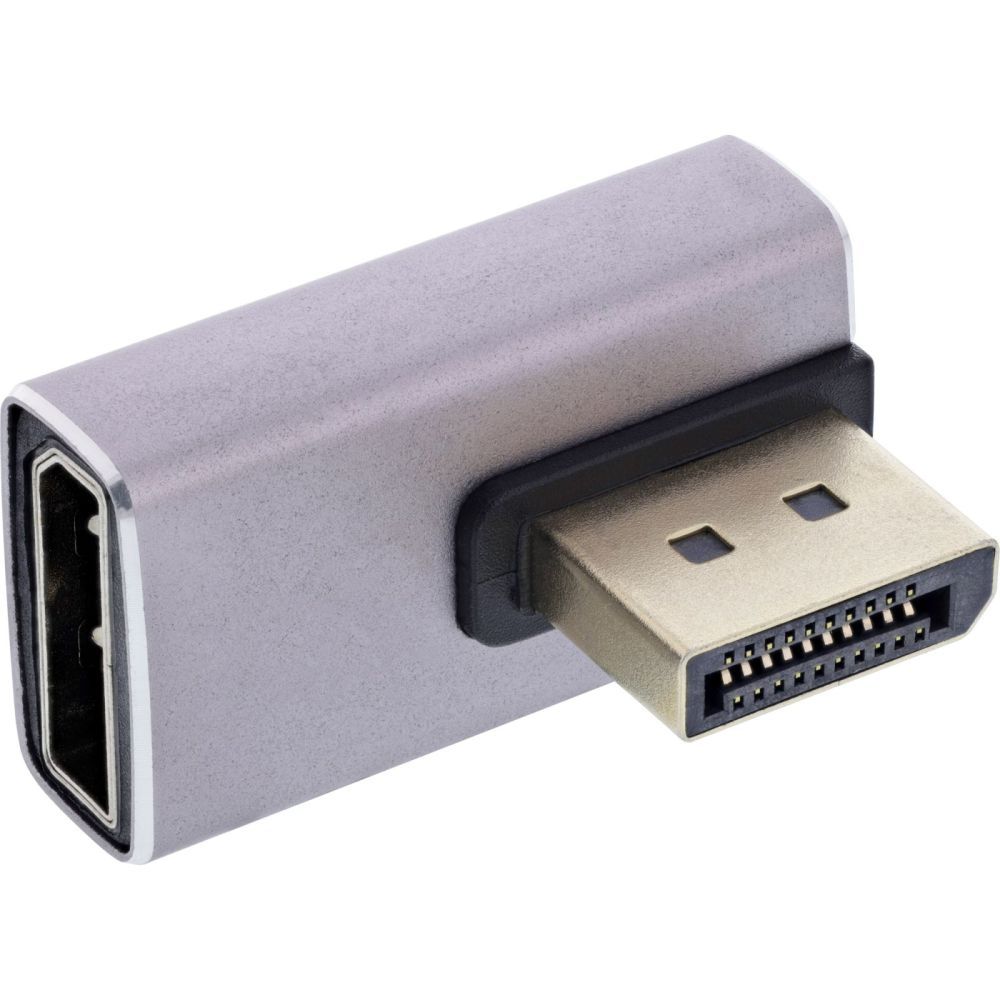

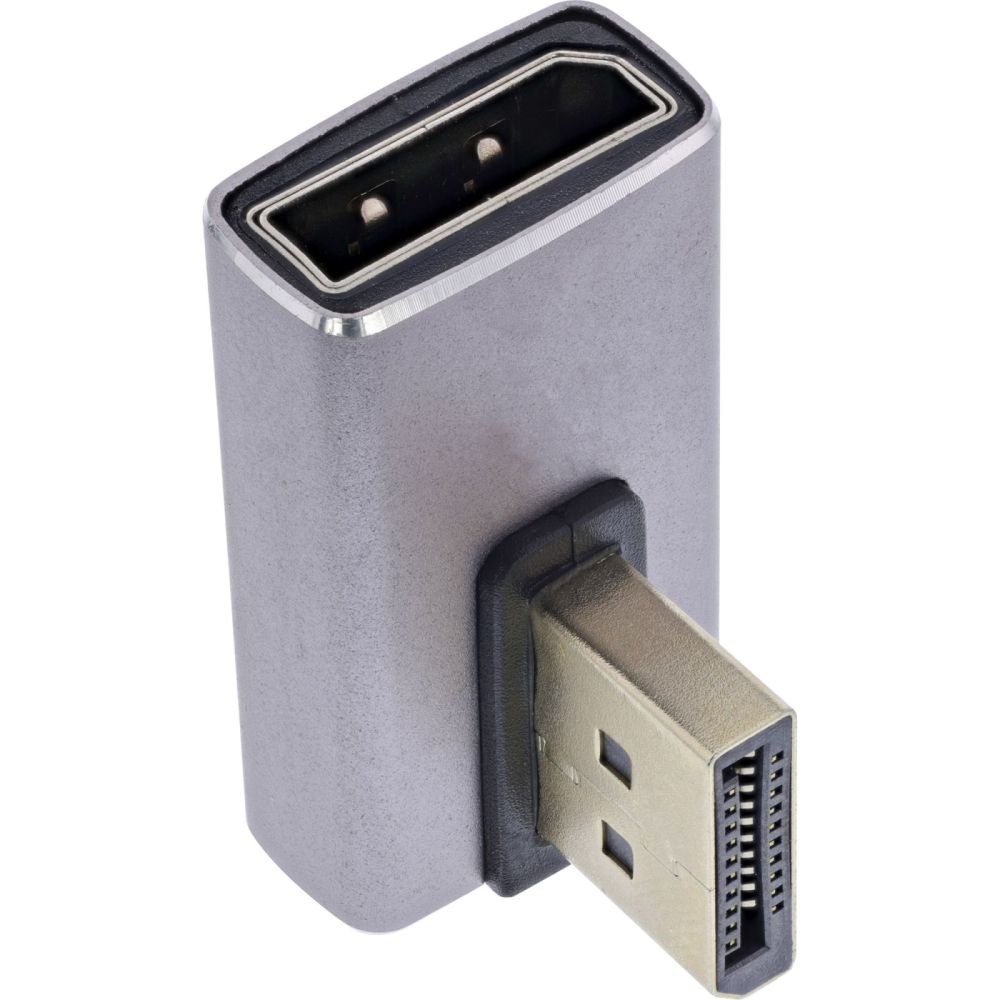

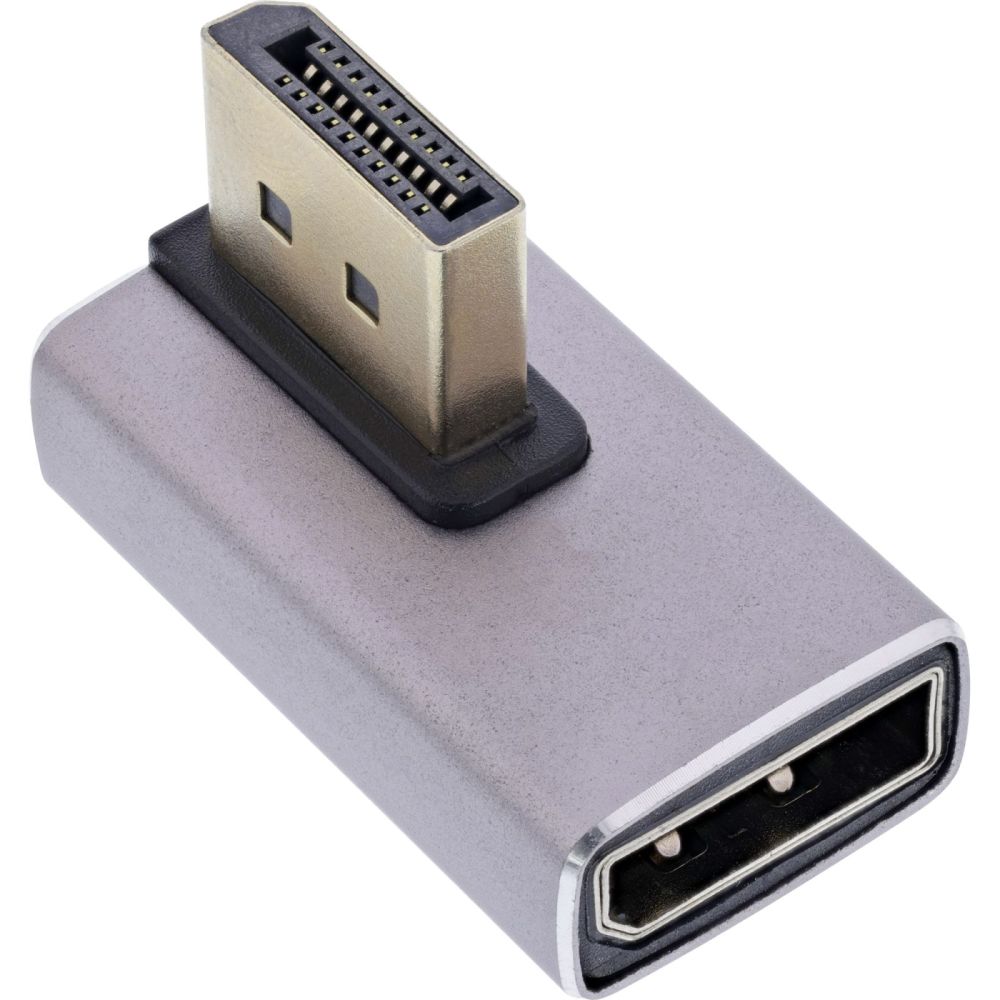

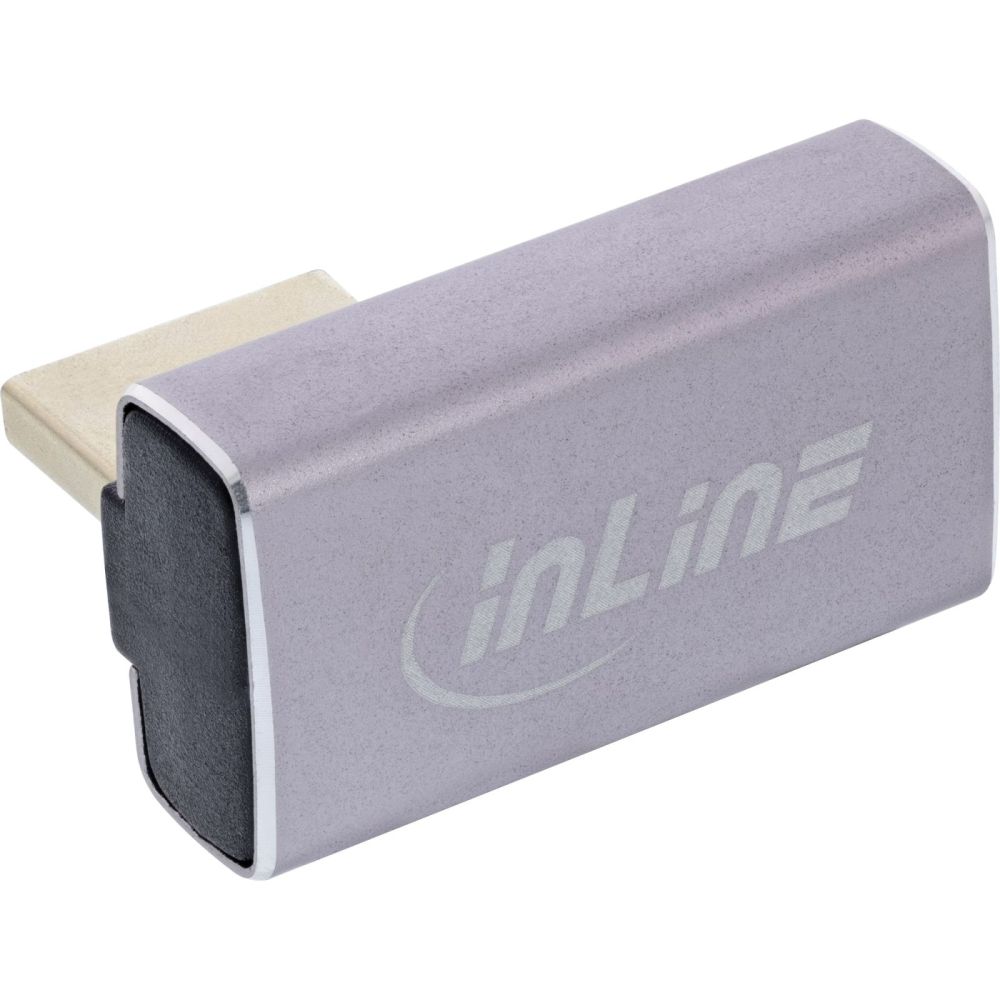

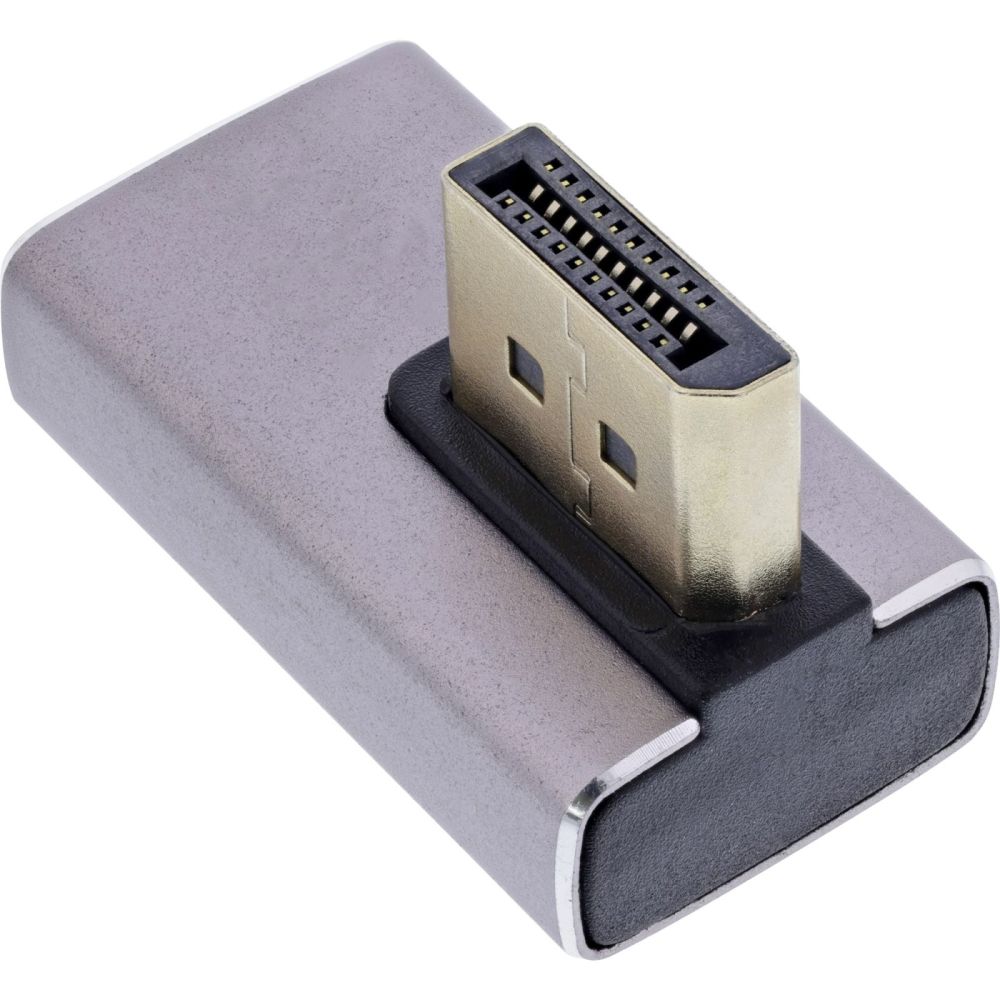

InLine® DisplayPort 1.4 Adapter, DisplayPort male / female, 90° vertical right
|
5,18 EUR |
|||||||||||
|
( 6,16 EUR incl. VAT ) ≈ £4.34 | ≈ $5.80 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193534 | ||||||||||
| Mfg Part No: | 17291H | ||||||||||
| UPC/EAN: | 4043718338160 | ||||||||||
| Weight: | 0.018 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 17291H:
8K UHD support: Best picture quality for videos, games or professional workflows.
Gold-plated contacts: High signal quality and long service life even with frequent use.
Compact design: Ideal for technical furniture, rear panels or concealed connections.
DisplayPort 1.4 compatible: Suitable for PCs, monitors and modern AV technology.
The InLine DisplayPort adapter with a 90° vertical right-angle connector is the smart solution for installations where the cable needs to be routed to the side – e.g. in furniture, behind monitors or in AV walls. The vertical design saves space and protects the connections from mechanical stress.
With support for 8K UHD, the adapter offers the highest image quality for demanding applications. The gold-plated contacts ensure a reliable connection with a long service life.
A functional accessory that should not be missing in modern technology installations.
Connection: DisplayPort plug (90° vertical right) to DisplayPort socket
Standard: DisplayPort 1.4
Resolution: up to 8K UHD
Contacts: gold-plated
Application: cable routing to the side
Compatibility: monitors, graphics cards, PCs, AV systems
| Certificates | |
| Compliance certificates | CE, TÜV mark, RoHS |
| Logistics data | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Other features | |
| Dimensions (WxDxH) | 23 x 36 x 21 mm |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 140 mm |
| Package height | 21 mm |
| Package weight | 18 g |

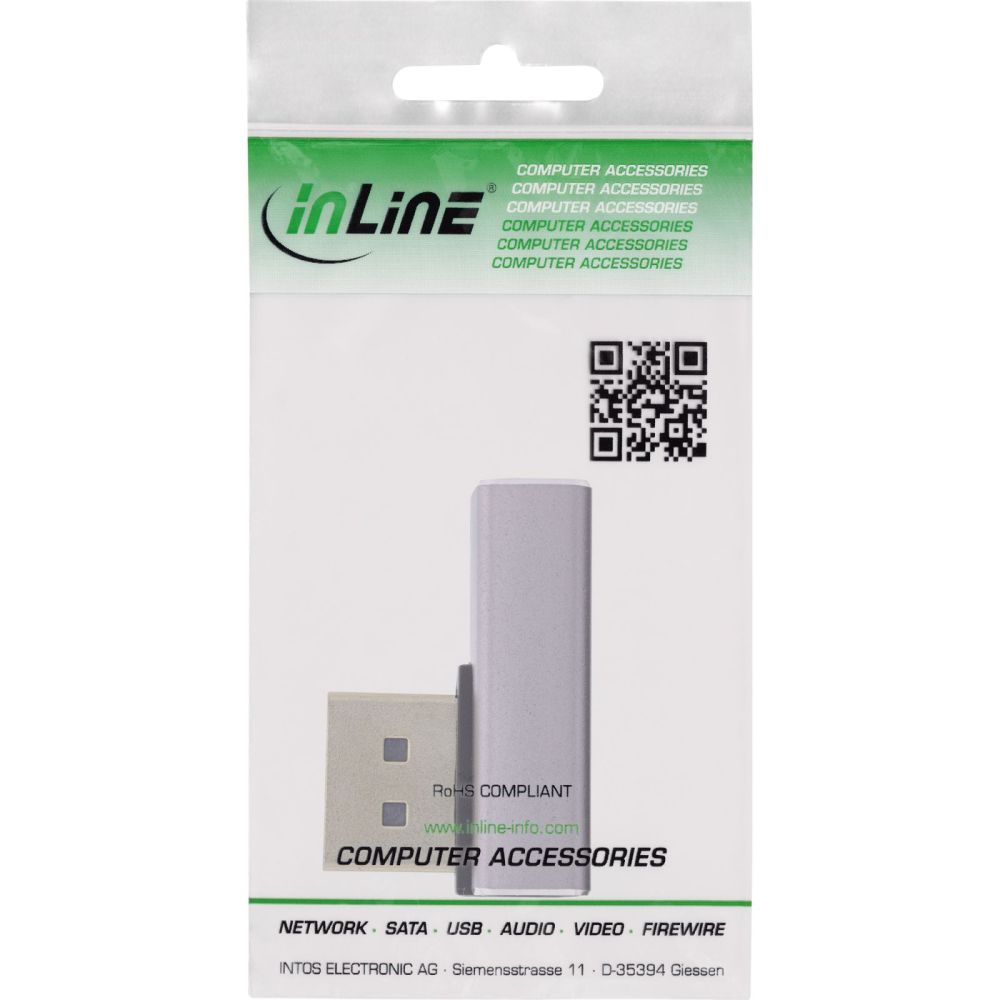

| Package type | Polybag |
| Performance | |
| Product colour | Grey, Black |
| Housing material | Aluminium |
| Maximum resolution | 7680 x 4320 pixels |
| Ports & interfaces | |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Straight |
| DisplayPort version | 1.4 |
| Connector contacts plating | Gold |
| Technical data | |
| Signal | Audio/Video |
| Side B | DisplayPort female |
| Weight | 0.018kg |
| Design | Vertical right |
| Side A | DisplayPort plug |
| Type | Gold-plated contacts |
| Length packaging | 0.140m |
| Article height | 2.10cm |
| Height packaging | 0.021m |
| Housing material | Aluminum |
| Net weight | 0.016kg |
| Article length | 3.60cm |
| Width packaging | 0.070m |
| Article width | 2.30cm |
| Audio | |
| Weight & dimensions | |
| Width | 23 mm |
| Depth | 36 mm |
| Height | 21 mm |
| Weight | 16 g |
