InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 50m
|
156,59 EUR |
|
|
( 186,34 EUR incl. VAT ) ≈ £131.07 | ≈ $175.22 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193797 |
| Mfg Part No: | 17250O |
| UPC/EAN: | 4043718336289 |
| Weight: | 1.76 kg |
Product information for Inline 17250O:
AOC technology: stable transmission over many meters
Mini DisplayPort adapter included for more device compatibility
Detachable plugs: Easy to route through narrow cable ducts
Gold-plated contacts & robust sheathing for long service life
This InLine® DisplayPort 1.4 AOC cable delivers the highest performance for gaming, home office and high-end entertainment. The combination of fiber optics and copper ensures stable transmission even over many meters. Ideal for 4K/8K monitors with 240Hz support!With the detachable metal plugs and the Mini DisplayPort adapters included, the cable can also be laid in narrow cable ducts - and flexibly connected to a wide variety of devices. Highest quality for brilliant images and interference-free performance - even over long distances.
Hybrid construction: 4 fiber optic and 8 copper wires
Directional: Source to display

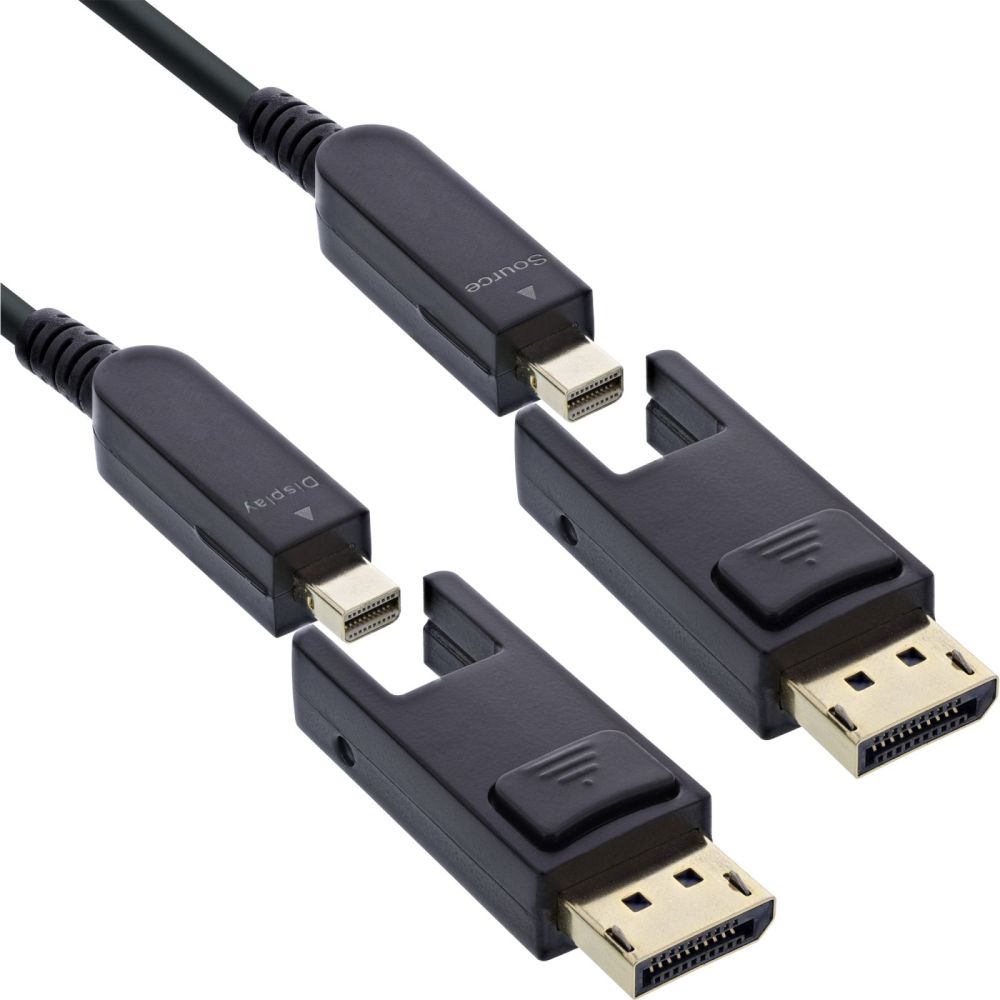

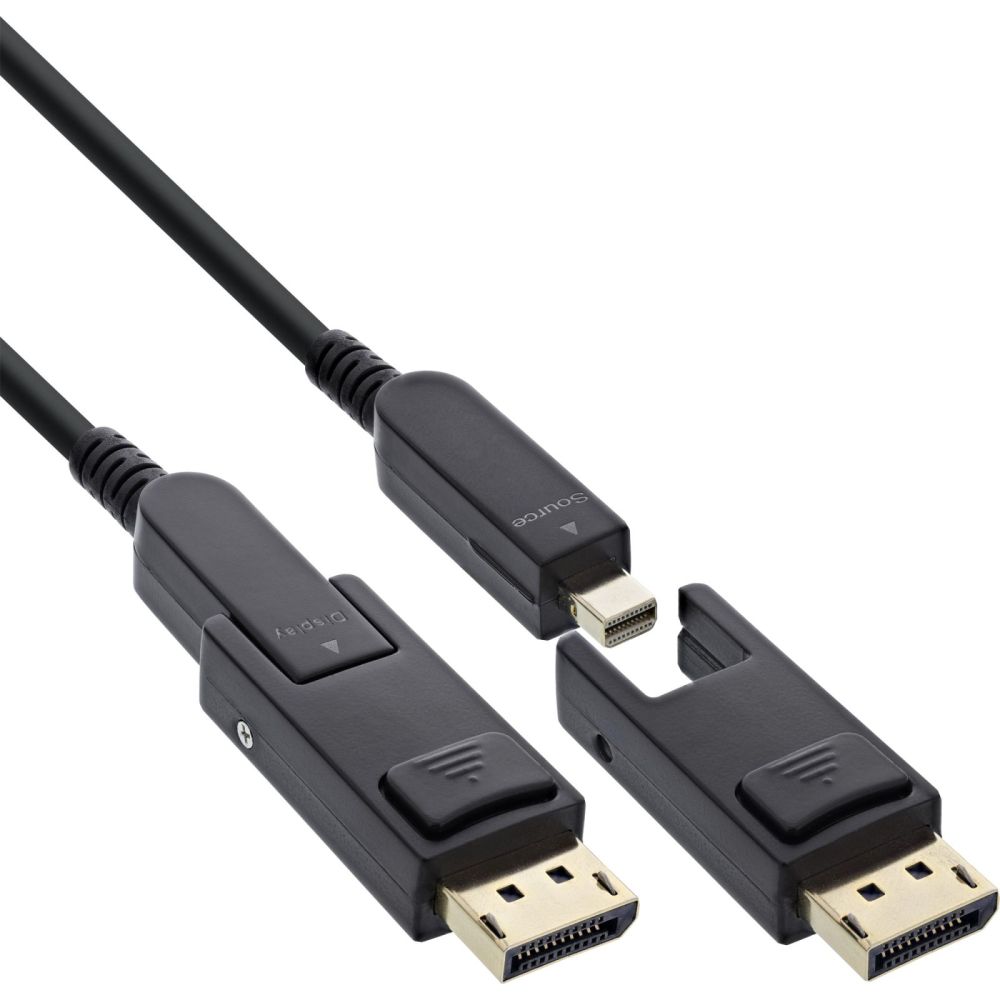

Metal connector, detachable DP to mini-DP adapter
Cable diameter: 4.8 mm, PVC jacket
Supported resolutions: 7680×4320 @60Hz, 3840×2160 @144Hz (DSC)
Max. Data rate: 32.8 Gb/s
Standards: 3D, HDCP2.2, DPCP1.0, EDID, HDR10
| Certificates | |
| Compliance certificates | RoHS, TÜV mark |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 144 Hz |
| HDCP version | 2.2 |
| Cable length | 50 m |
| Connector 1 | Mini DisplayPort / DisplayPort |
| Connector 2 | Mini DisplayPort / DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 32.8 Gbit/s |
| Colour sampling | 4:4:4 |
| HDCP | |
| DisplayPort Content Protection (DPCP) | |
| 3D | |
| High Dynamic Range (HDR) supported | |
| Logistics data | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
| Depth | 50000 mm |
| Height | 11 mm |
| Width | 20 mm |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 225 mm |
| Package height | 75 mm |
| Package weight | 1.76 kg |
| Package type | Box |
| Package volume | 4100 cm³ |
| Technical data | |
| Article width | 2.00cm |
| Side A | DisplayPort plug |
| Length packaging | 0.225m |
| Width packaging | 0.240m |
| Length | 50m |
| Net weight | 1.607kg |
| Storage temperature | -20 to +70°C |
| Height packaging | 0.075m |
| Weight | 1.760kg |
| Design | Round cable |
| Packaging volume | 0.0041m³ |
| Special feature | Detachable connectors |
| Article height | 1.10cm |
| Side B | DisplayPort plug |
| DisplayPort specification | DisplayPort 1.4 |
| Colour | Black |
| Data transmission rate | 32.4Gb/s |
| Article length | 5000.00cm |
| Variant | AOC cable |
| Maximum display resolution | 7680x4320@60Hz |
| Outer diameter | 4.8mm |
| Signal | Audio/Video |
| UL | |
| Gold plated contacts | |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 1.61 kg |
Questions & answers
What is the delivery time of InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 50m?
The article InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 50m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 17250O to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 50m always at the best possible price. We can give you a discount of 2% on InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 50m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
