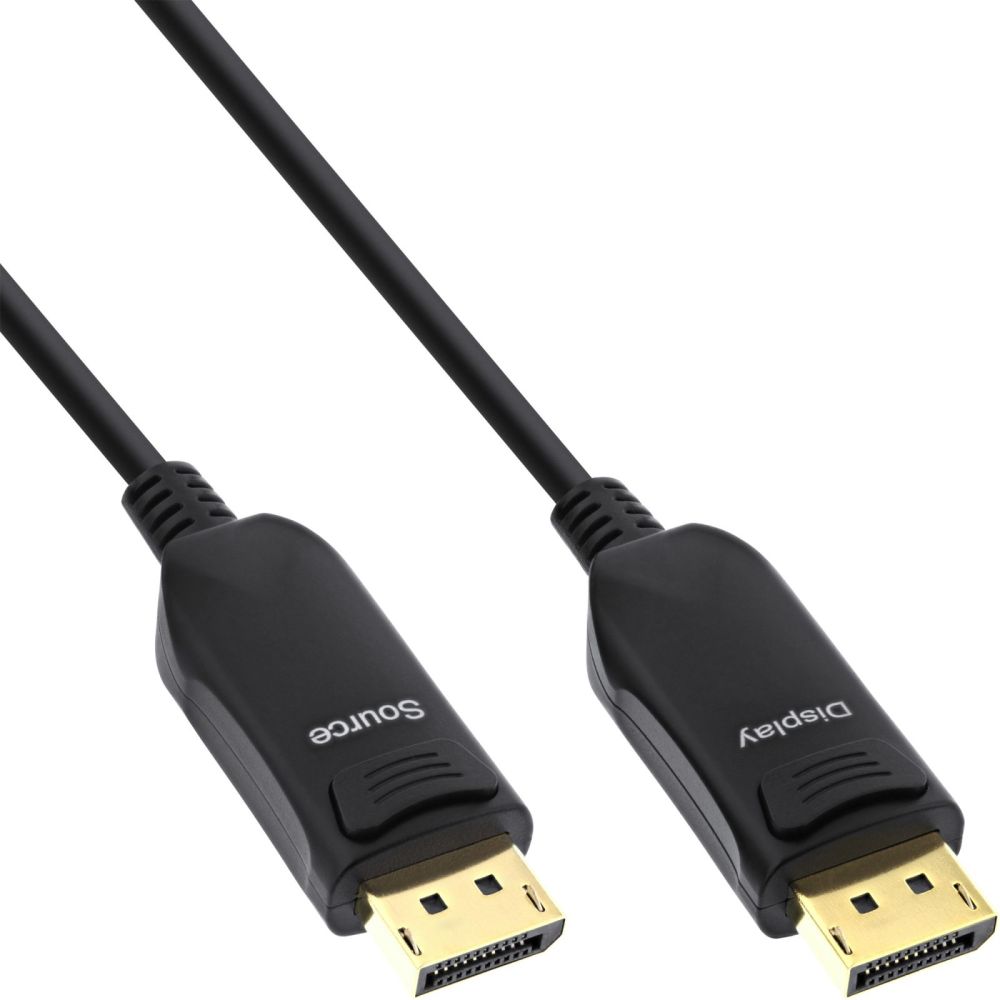

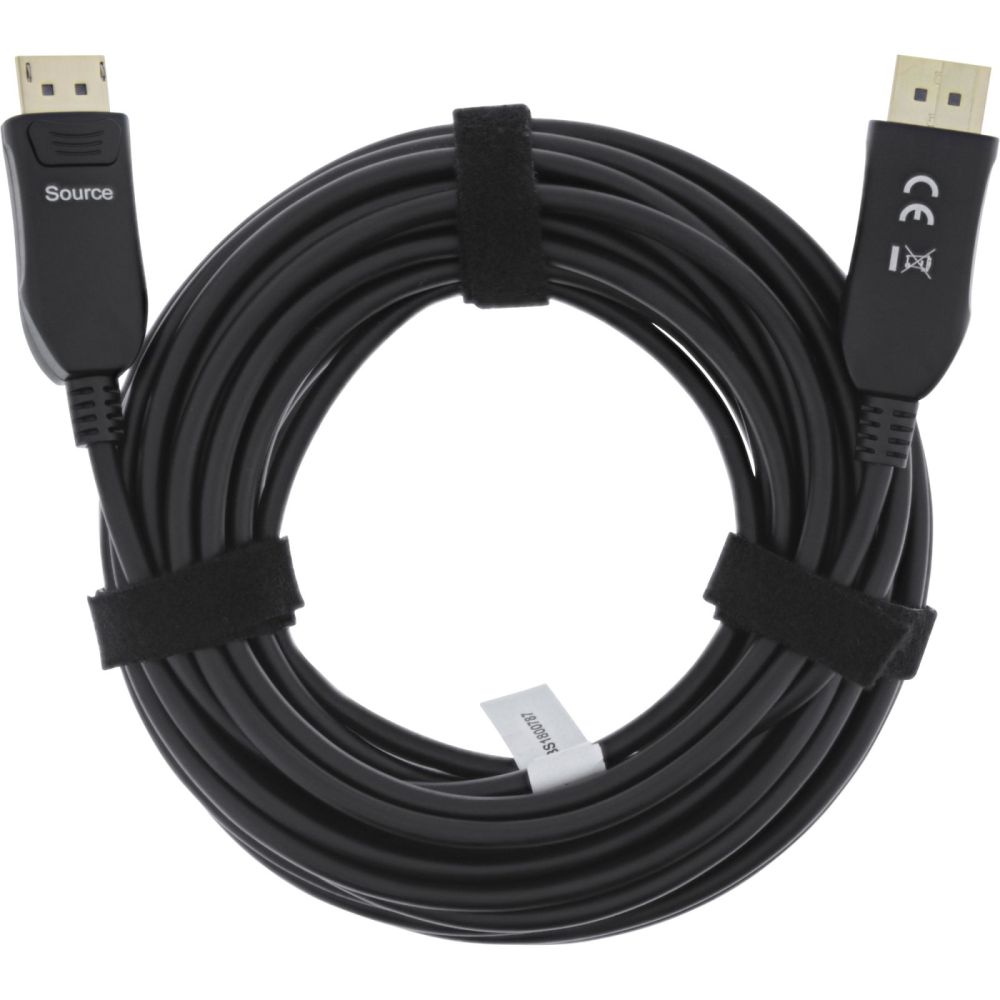

InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 30m
|
70,03 EUR |
|
|
( 83,34 EUR incl. VAT ) ≈ £58.62 | ≈ $78.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193582 |
| Mfg Part No: | 17230I |
| UPC/EAN: | 4043718293643 |
| Weight: | 0.74 kg |
Product information for Inline 17230I:
DisplayPort 1.4 AOC cable: hybrid cable consisting of 4 glass fibre and 7 pure copper strands
Directional signal cable: DisplayPort connector (source) to DisplayPort connector (display)
Robust metal plugs, aramid-protected and TPU coated cable, black
Max. data bandwidth: 32.4 Gb/s
Supported resolutions: 7680x4320/8K@60Hz 4:4:4 8-Bit with DSC - 5120x2880/5K@60Hz - 3840x2160/4K@120Hz 4:4:4 8/10-Bit
Supports 3D, HDCP2.2, EDID and other DisplayPort specifications
Gold-plated contacts
Cable diameter only 4.8mm
Directional signal cable: DisplayPort connector (source) to DisplayPort connector (display)
Robust metal plugs, aramid-protected and TPU coated cable, black
Max. data bandwidth: 32.4 Gb/s
Supported resolutions: 7680x4320/8K@60Hz 4:4:4 8-Bit with DSC - 5120x2880/5K@60Hz - 3840x2160/4K@120Hz 4:4:4 8/10-Bit
Supports 3D, HDCP2.2, EDID and other DisplayPort specifications
Gold-plated contacts
Cable diameter only 4.8mm
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 5120 x 2880, 7680 x 4320 |
| Maximum refresh rate | 120 Hz |
| Cable length | 30 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Thermoplastic polyurethane (TPU) |
| Data transfer rate | 32.4 Gbit/s |
| HDCP | |
| 3D | |
| Other features | |
| Depth | 30000 mm |
| Height | 13 mm |
| Width | 20 mm |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 218 mm |
| Package height | 90 mm |
| Package weight | 740 g |
| Package volume | 4100 cm³ |
| Technical data | |
| Design | Round cable |
| DisplayPort specification | DisplayPort 1.4 |
| Weight | 0.740kg |
| Length packaging | 0.218m |
| Colour | Black |
| Maximum display resolution | 7680x4320@60Hz |
| Width packaging | 0.210m |
| Signal | Audio/Video |
| Storage temperature | -20 to +70°C |
| Packaging volume | 0.0041m³ |
| Article height | 1.30cm |
| Side B | DisplayPort plug |
| Article width | 2.00cm |
| Side A | DisplayPort plug |
| Height packaging | 0.090m |
| Net weight | 0.678kg |
| Length | 30m |
| Outer diameter | 4.8mm |
| Article length | 3000.00cm |
| Variant | AOC cable |
| Data transmission rate | 32.4Gb/s |
| Gold plated contacts | |
| UL | |
| Weight & dimensions | |
| Weight | 678 g |
