InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 20m
|
61,36 EUR |
|
|
( 73,02 EUR incl. VAT ) ≈ £51.36 | ≈ $68.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193635 |
| Mfg Part No: | 17220I |
| UPC/EAN: | 4043718293629 |
| Weight: | 0.5 kg |

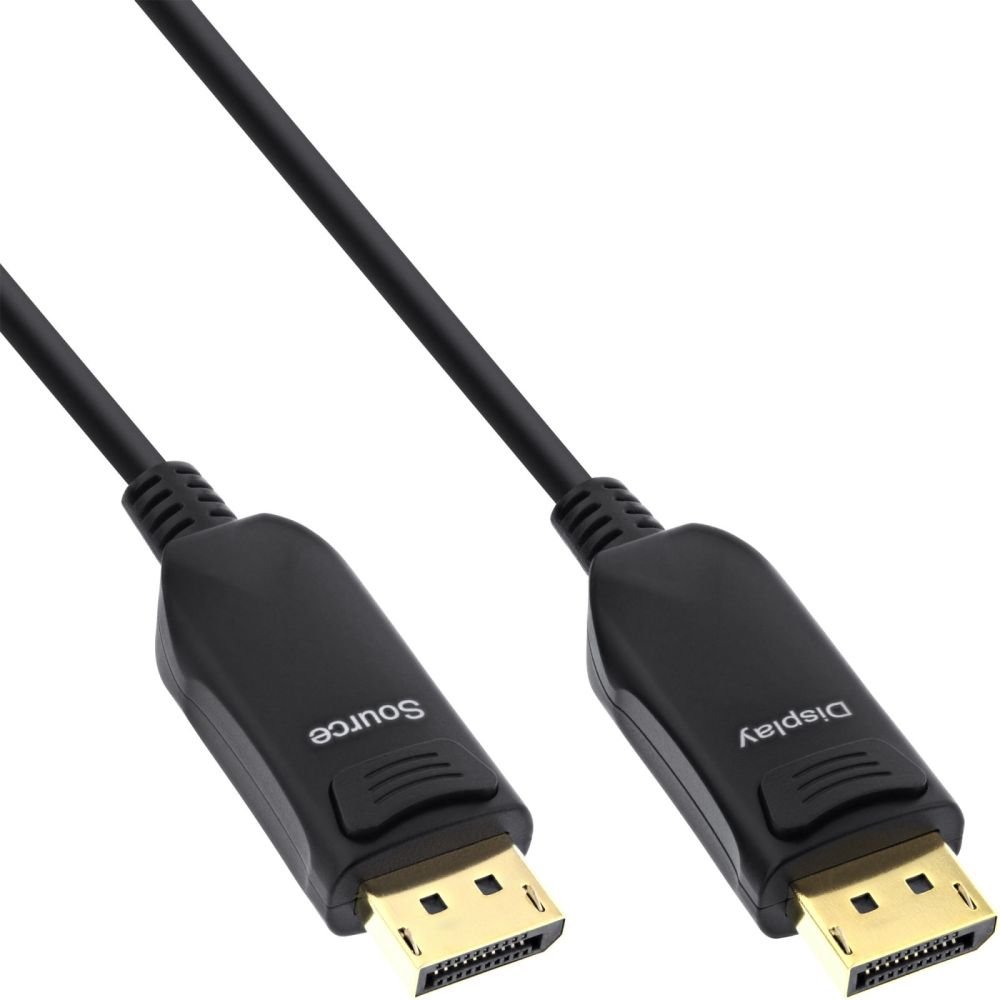

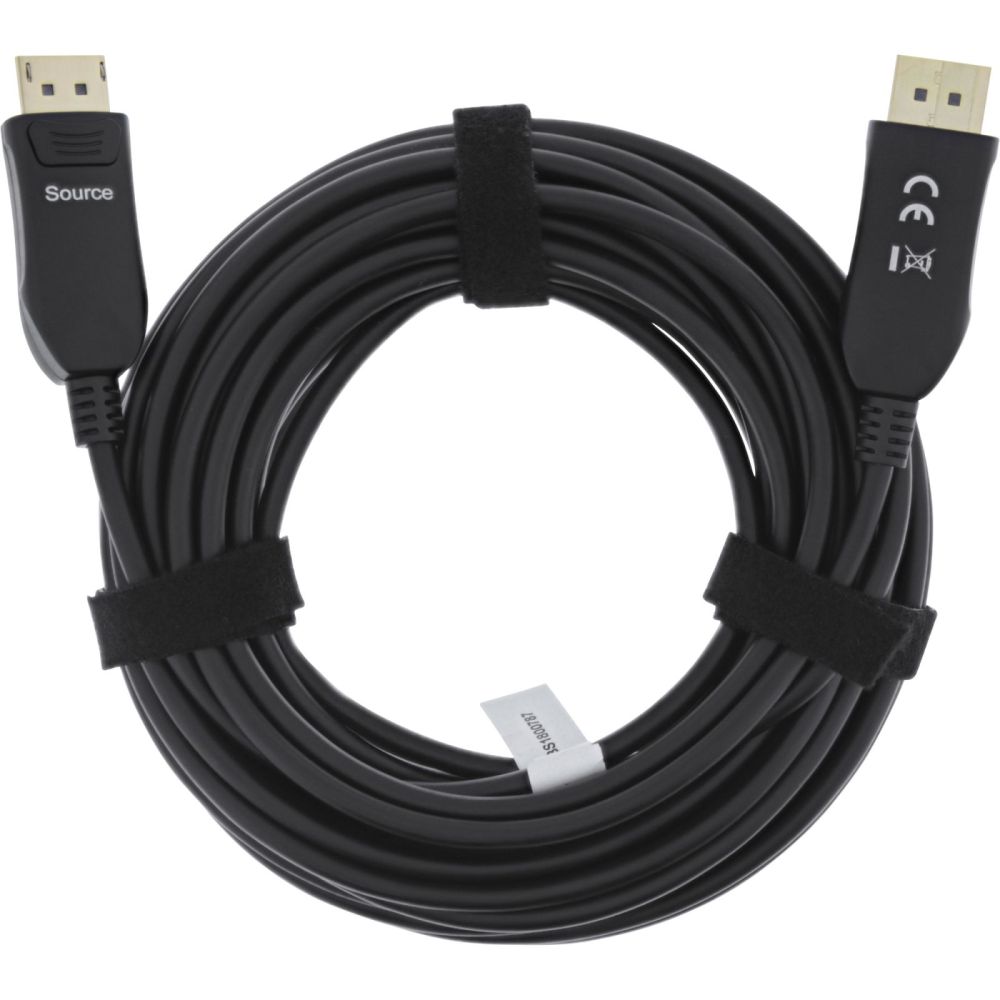

Product information for Inline 17220I:
DisplayPort 1.4 AOC cable: hybrid cable consisting of 4 glass fibre and 7 pure copper strands
Directional signal cable: DisplayPort connector (source) to DisplayPort connector (display)
Robust metal plugs, aramid-protected and TPU coated cable, black
Max. data bandwidth: 32.4 Gb/s
Supported resolutions: 7680x4320/8K@60Hz 4:4:4 8-Bit with DSC - 5120x2880/5K@60Hz - 3840x2160/4K@120Hz 4:4:4 8/10-Bit
Supports 3D, HDCP2.2, EDID and other DisplayPort specifications
Gold-plated contacts
Cable diameter only 4.8mm
Directional signal cable: DisplayPort connector (source) to DisplayPort connector (display)
Robust metal plugs, aramid-protected and TPU coated cable, black
Max. data bandwidth: 32.4 Gb/s
Supported resolutions: 7680x4320/8K@60Hz 4:4:4 8-Bit with DSC - 5120x2880/5K@60Hz - 3840x2160/4K@120Hz 4:4:4 8/10-Bit
Supports 3D, HDCP2.2, EDID and other DisplayPort specifications
Gold-plated contacts
Cable diameter only 4.8mm
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 5120 x 2880, 7680 x 4320 |
| Maximum refresh rate | 120 Hz |
| Cable length | 20 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Thermoplastic polyurethane (TPU) |
| Data transfer rate | 32.4 Gbit/s |
| HDCP | |
| 3D | |
| Other features | |
| Depth | 20000 mm |
| Height | 13 mm |
| Width | 20 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 218 mm |
| Package height | 90 mm |
| Package weight | 500 g |
| Package volume | 4100 cm³ |
| Technical data | |
| Weight | 0.500kg |
| Length packaging | 0.218m |
| Colour | Black |
| Packaging volume | 0.0041m³ |
| Article height | 1.30cm |
| Side B | DisplayPort plug |
| Storage temperature | -20 to +70°C |
| Data transmission rate | 32.4Gb/s |
| Article width | 2.00cm |
| Side A | DisplayPort plug |
| DisplayPort specification | DisplayPort 1.4 |
| Height packaging | 0.090m |
| Width packaging | 0.210m |
| Length | 20m |
| Maximum display resolution | 7680x4320@60Hz |
| Net weight | 0.479kg |
| Signal | Audio/Video |
| Outer diameter | 4.8mm |
| Article length | 2000.00cm |
| Variant | AOC cable |
| Design | Round cable |
| UL | |
| Gold plated contacts | |
| Weight & dimensions | |
| Weight | 479 g |
Questions & answers
What is the delivery time of InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 20m?
The article InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 20m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 17220I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 20m always at the best possible price. We can give you a discount of 2% on InLine® DisplayPort 1.4 AOC Cable, 8K4K, black, 20m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
