InLine® DisplayPort 1.4 AOC cable, 8K4K, DisplayPort plug detachable, 10m
|
96,18 EUR |
|
|
( 114,45 EUR incl. VAT ) ≈ £80.50 | ≈ $107.63 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193639 |
| Mfg Part No: | 17210O |
| UPC/EAN: | 4043718336227 |
| Weight: | 0.49 kg |

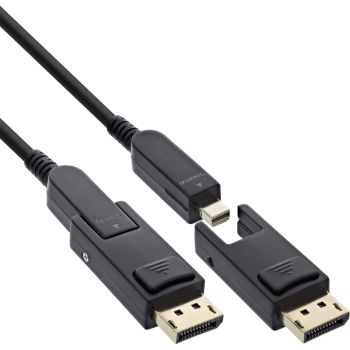

Product information for Inline 17210O:
AOC technology: stable transmission over many meters
Mini DisplayPort adapter included for more device compatibility
Detachable plugs: Easy to route through narrow cable ducts
Gold-plated contacts & robust sheathing for long service life
This InLine® DisplayPort 1.4 AOC cable delivers the highest performance for gaming, home office and high-end entertainment. The combination of fiber optics and copper ensures stable transmission even over many meters. Ideal for 4K/8K monitors with 240Hz support!With the detachable metal plugs and the Mini DisplayPort adapters included, the cable can also be laid in narrow cable ducts - and flexibly connected to a wide variety of devices. Highest quality for brilliant images and interference-free performance - even over long distances.
Hybrid construction: 4 fiber optic and 8 copper wires
Directional: Source to display
Metal connector, detachable DP to mini-DP adapter
Cable diameter: 4.8 mm, PVC jacket
Supported resolutions: 7680×4320 @60Hz, 3840×2160 @144Hz (DSC)
Max. Data rate: 32.8 Gb/s
Standards: 3D, HDCP2.2, DPCP1.0, EDID, HDR10
| Certificates | |
| Compliance certificates | RoHS, TÜV mark |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 144 Hz |
| HDCP version | 2.2 |
| Cable length | 10 m |
| Connector 1 | Mini DisplayPort / DisplayPort |
| Connector 2 | Mini DisplayPort / DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 32.8 Gbit/s |
| Colour sampling | 4:4:4 |
| HDCP | |
| DisplayPort Content Protection (DPCP) | |
| 3D | |
| High Dynamic Range (HDR) supported | |
| Logistics data | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
| Depth | 10000 mm |
| Height | 11 mm |
| Width | 20 mm |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 225 mm |
| Package height | 40 mm |
| Package weight | 490 g |
| Package type | Box |
| Package volume | 2100 cm³ |
| Technical data | |
| Height packaging | 0.040m |
| Colour | Black |
| Maximum display resolution | 7680x4320@60Hz |
| Length | 10m |
| DisplayPort specification | DisplayPort 1.4 |
| Special feature | Detachable connectors |
| Weight | 0.490kg |
| Storage temperature | -20 to +70°C |
| Net weight | 0.396kg |
| Design | Round cable |
| Outer diameter | 4.8mm |
| Width packaging | 0.235m |
| Signal | Audio/Video |
| Data transmission rate | 32.4Gb/s |
| Article length | 1000.00cm |
| Variant | AOC cable |
| Article height | 1.10cm |
| Side B | DisplayPort plug |
| Length packaging | 0.225m |
| Article width | 2.00cm |
| Side A | DisplayPort plug |
| Packaging volume | 0.0021m³ |
| UL | |
| Gold plated contacts | |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 396 g |
